概览
奥林巴斯LMPLFLN透镜属于奥林巴斯平场半复消色差明视野物镜,拥有超长工作距离,防止有落差样品的碰撞。可供选择20X-100X倍率。
| ![超长工作距离平场消色差透镜 SLMPLN](https://industrial.evidentscientific.com.cn/data/Image/MicroscopeSolutions/SLMPLN/slmpln_objective_lens.jpg?rev=119A) |
超长工作距离平场消色差透镜 SLMPLN
- 明视场专用物镜
- 超长的工作距离降低了观察样品的损坏风险
SLMPLN20x
Specifications
Magnification [X]
|
20
|
---|
Numerical aperture (NA)
|
0.25
|
---|
Working distance (WD) [mm]
|
25
|
---|
Objective Field Number
|
26.5
|
---|
Immersion medium
|
Air/Dry
|
---|
Spring loaded
|
N/A
|
---|
Correction collar
|
N/A
|
---|
Correction range of correction collar
|
N/A
|
---|
Iris
|
N/A
|
---|
Correction level of chromatic aberration
|
Achromat (ACH)
|
---|
Parfocalizing distance [mm]
|
45
|
---|
Back focal plane (BFP) position
|
0.1
|
---|
Type of screw thread
|
W20.32X0.706(RMS)
|
---|
Brightfield(Reflected)
|
Good
|
---|
Brightfield(Transmitted)
|
Good
|
---|
Darkfield(Reflected)
|
N/A
|
---|
Darkfield(Transmitted)
|
N/A
|
---|
DIC(Reflected)
|
N/A
|
---|
DIC(Transmitted)
|
N/A
|
---|
Phase Contrast
|
N/A
|
---|
Relief Contrast
|
N/A
|
---|
Polarized Light
|
N/A
|
---|
Fluorescence (B, G Excitation)
|
N/A
|
---|
UV Fluorescence (at 365nm)
|
N/A
|
---|
Multiphoton
|
N/A
|
---|
TIRF
|
N/A
|
---|
IR
|
N/A
|
---|
WLI
|
N/A
|
---|
Auto Focus
|
N/A
|
---|
Transmittance/Wavelength
![Transmittance/Wavelength Transmittance/Wavelength](https://industrial.evidentscientific.com.cn/data/Image/MicroscopeSolutions/SLMPLN/slmpln20x_transmittance_wavelength_graph.gif?rev=119A)
Dimensions
![SLMPLN20x Dimensions SLMPLN20x Dimensions](https://industrial.evidentscientific.com.cn/data/Image/MicroscopeSolutions/SLMPLN/slmpln20x_dimensions_diagram.gif?rev=119A)
SLMPLN50x
Specifications
Magnification [X]
|
50
|
---|
Numerical aperture (NA)
|
0.35
|
---|
Working distance (WD) [mm]
|
18
|
---|
Objective Field Number
|
26.5
|
---|
Immersion medium
|
Air/Dry
|
---|
Spring loaded
|
N/A
|
---|
Correction collar
|
N/A
|
---|
Correction range of correction collar
|
N/A
|
---|
Iris
|
N/A
|
---|
Correction level of chromatic aberration
|
Achromat (ACH)
|
---|
Parfocalizing distance [mm]
|
45
|
---|
Back focal plane (BFP) position
|
0.6
|
---|
Type of screw thread
|
W20.32X0.706(RMS)
|
---|
Brightfield(Reflected)
|
Good
|
---|
Brightfield(Transmitted)
|
Good
|
---|
Darkfield(Reflected)
|
N/A
|
---|
Darkfield(Transmitted)
|
N/A
|
---|
DIC(Reflected)
|
N/A
|
---|
DIC(Transmitted)
|
N/A
|
---|
Phase Contrast
|
N/A
|
---|
Relief Contrast
|
N/A
|
---|
Polarized Light
|
N/A
|
---|
Fluorescence (B, G Excitation)
|
N/A
|
---|
UV Fluorescence (at 365nm)
|
N/A
|
---|
Multiphoton
|
N/A
|
---|
TIRF
|
N/A
|
---|
IR
|
N/A
|
---|
WLI
|
N/A
|
---|
Auto Focus
|
N/A
|
---|
Transmittance/Wavelength
![Transmittance/Wavelength Transmittance/Wavelength](https://industrial.evidentscientific.com.cn/data/Image/MicroscopeSolutions/SLMPLN/slmpln50x_transmittance_wavelength_graph.gif?rev=119A)
Dimensions
![SLMPLN50x Dimensions SLMPLN50x Dimensions](https://industrial.evidentscientific.com.cn/data/Image/MicroscopeSolutions/SLMPLN/slmpln50x_dimensions_diagram.gif?rev=119A)
SLMPLN100x
Specifications
Magnification [X]
|
100
|
---|
Numerical aperture (NA)
|
0.6
|
---|
Working distance (WD) [mm]
|
7.6
|
---|
Objective Field Number
|
26.5
|
---|
Immersion medium
|
Air/Dry
|
---|
Spring loaded
|
N/A
|
---|
Correction collar
|
N/A
|
---|
Correction range of correction collar
|
N/A
|
---|
Iris
|
N/A
|
---|
Correction level of chromatic aberration
|
Achromat (ACH)
|
---|
Parfocalizing distance [mm]
|
45
|
---|
Back focal plane (BFP) position
|
0.7
|
---|
Type of screw thread
|
W20.32X0.706(RMS)
|
---|
Brightfield(Reflected)
|
Good
|
---|
Brightfield(Transmitted)
|
Good
|
---|
Darkfield(Reflected)
|
N/A
|
---|
Darkfield(Transmitted)
|
N/A
|
---|
DIC(Reflected)
|
N/A
|
---|
DIC(Transmitted)
|
N/A
|
---|
Phase Contrast
|
N/A
|
---|
Relief Contrast
|
N/A
|
---|
Polarized Light
|
N/A
|
---|
Fluorescence (B, G Excitation)
|
N/A
|
---|
UV Fluorescence (at 365nm)
|
N/A
|
---|
Multiphoton
|
N/A
|
---|
TIRF
|
N/A
|
---|
IR
|
N/A
|
---|
WLI
|
N/A
|
---|
Auto Focus
|
N/A
|
---|

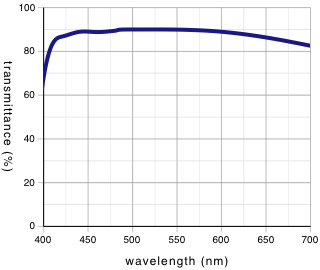

Transmittance/Wavelength
![Transmittance/Wavelength Transmittance/Wavelength](https://industrial.evidentscientific.com.cn/data/Image/MicroscopeSolutions/SLMPLN/slmpln100x_transmittance_wavelength_graph.gif?rev=119A)
Dimensions
![SLMPLN100x Dimensions SLMPLN100x Dimensions](https://industrial.evidentscientific.com.cn/data/Image/MicroscopeSolutions/SLMPLN/slmpln100x_dimensions_diagram.gif?rev=119A)
