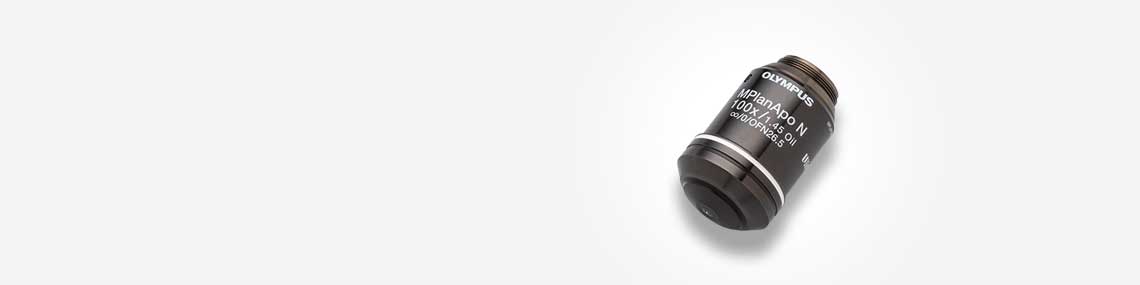

MPLAPON-Oil
.jpg?rev=42AC)
Loading...
Overview
Our MPLAPON-Oil Plan Apochromat oil immersion objective provides the highest level of chromatic correction and resolution capability available from Olympus. Outstanding Numerical Aperture, 1.45, ensures unparalleled resolution.
M Plan Apochromat MPLAPON-Oil
- Objective lens dedicated to brightfield imaging
- High resolving power with a numerical aperture of 1.45
- Plan Apochromat objective lens series with chromatic aberration corrected at highest level
- Specified oil: IMMOIL-F30CC
MPLAPON100XO2
Specifications
| Magnification [X] | 100 |
|---|---|
| Numerical aperture (NA) | 1.45 |
| Working distance (WD) [mm] | 0.1 |
| Objective Field Number | 26.5 |
| Immersion medium | Normal oil |
| Spring loaded | Yes |
| Correction collar | N/A |
| Correction range of correction collar | N/A |
| Iris | N/A |
| Correction level of chromatic aberration | Apochromat(APO) |
| Parfocalizing distance [mm] | 45 |
| Back focal plane (BFP) position | -19.12 |
| Type of screw thread | W20.32X0.706(RMS) |
| Brightfield(Reflected) | Excellent |
| Brightfield(Transmitted) | Excellent |
| Darkfield(Reflected) | N/A |
| Darkfield(Transmitted) | N/A |
| DIC(Reflected) | N/A |
| DIC(Transmitted) | Good |
| Phase Contrast | N/A |
| Relief Contrast | N/A |
| Polarized Light | Good |
| Fluorescence (B, G Excitation) | Limitation |
| UV Fluorescence (at 365nm) | Limitation |
| Multiphoton | N/A |
| TIRF | N/A |
| IR | N/A |
| WLI | N/A |
| Auto Focus | N/A |
Transmittance/Wavelength
Dimensions
