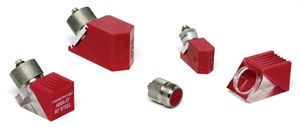

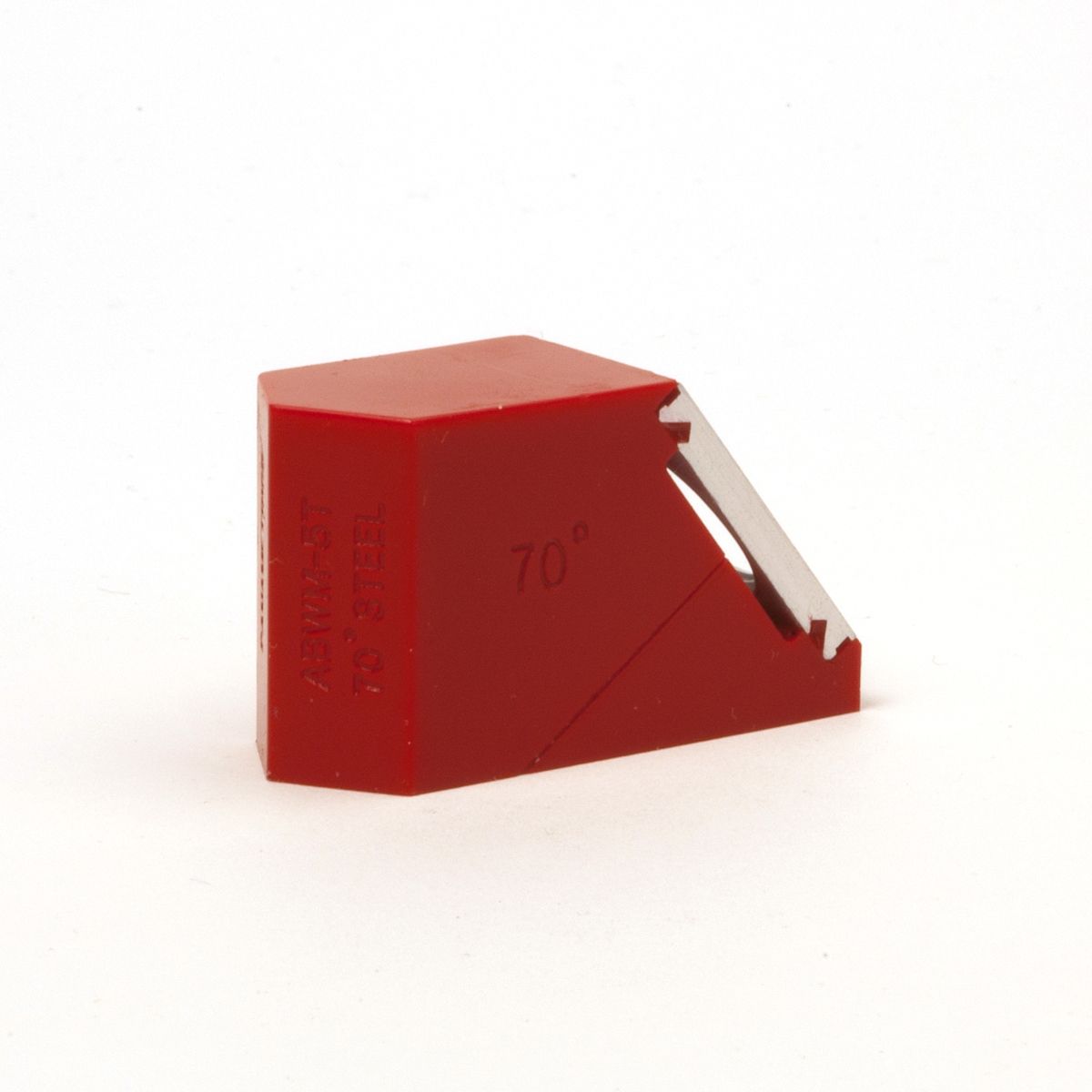

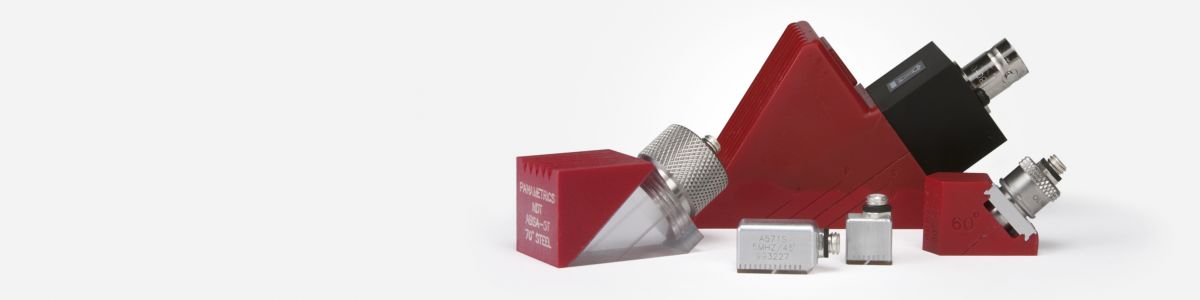

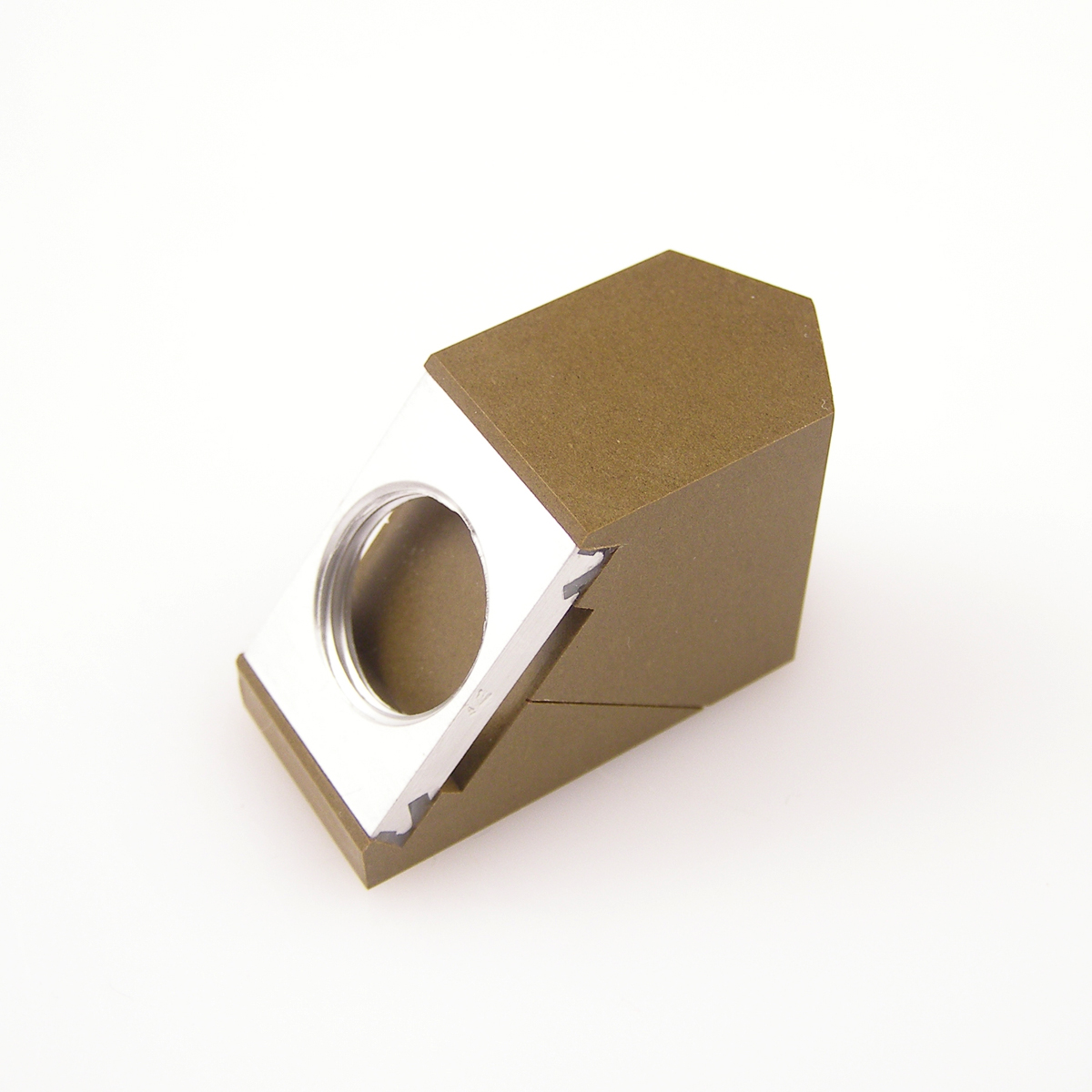

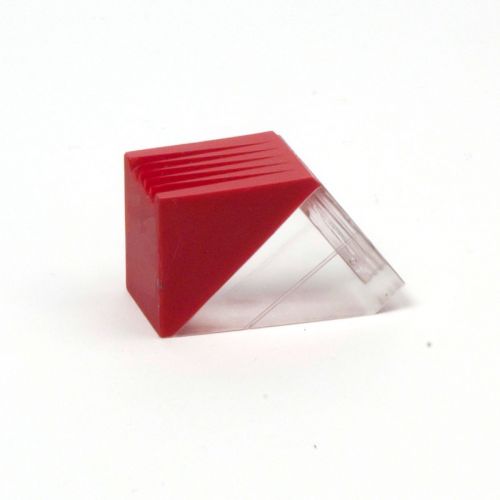

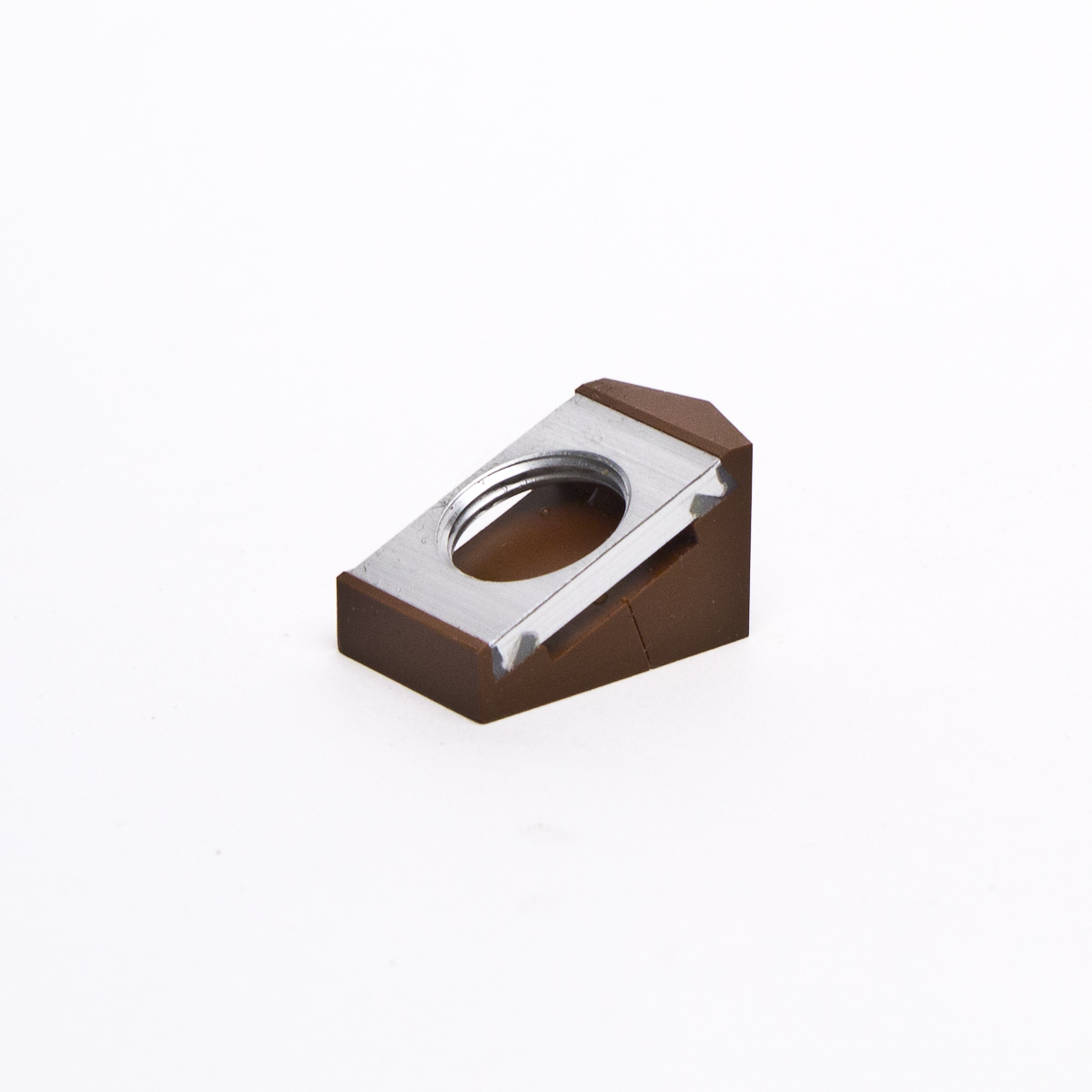

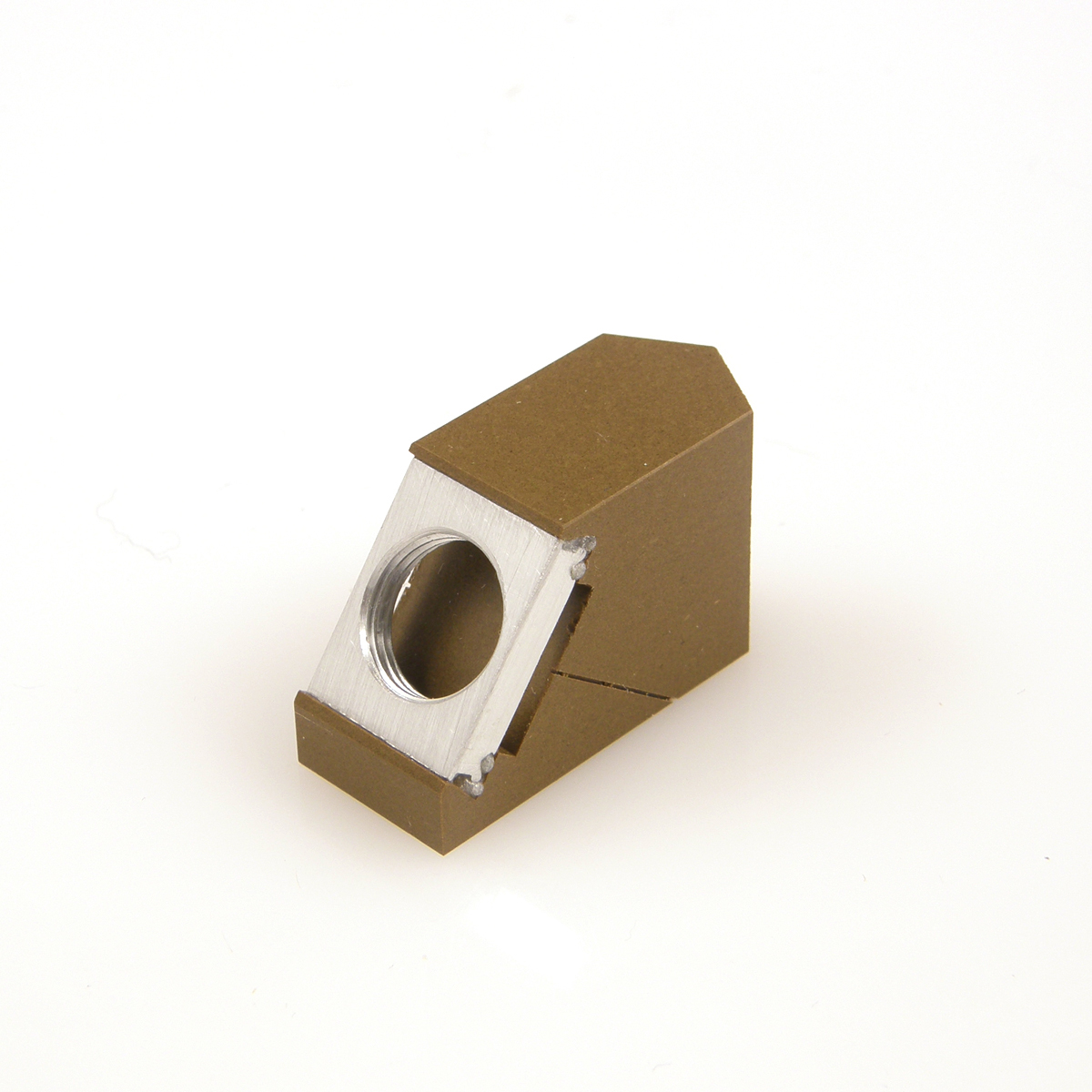

Las sondas y suelas (zapatas) de haz angular miniatura son usadas principalmente para inspeccionar la integridad de las soldaduras. Su diseño permite escanear fácilmente las soldaduras de un lado a otro y proporciona una corta distancia de enfoque. Las sondas de haz angular son sondas monoelemento usadas con una zapata (suela) para introducir una onda transversal refractada u onda longitudinal en la pieza bajo ensayo.
Loading...
概述
Ventajas:
Aplicaciones:
|
袖珍旋入式探头

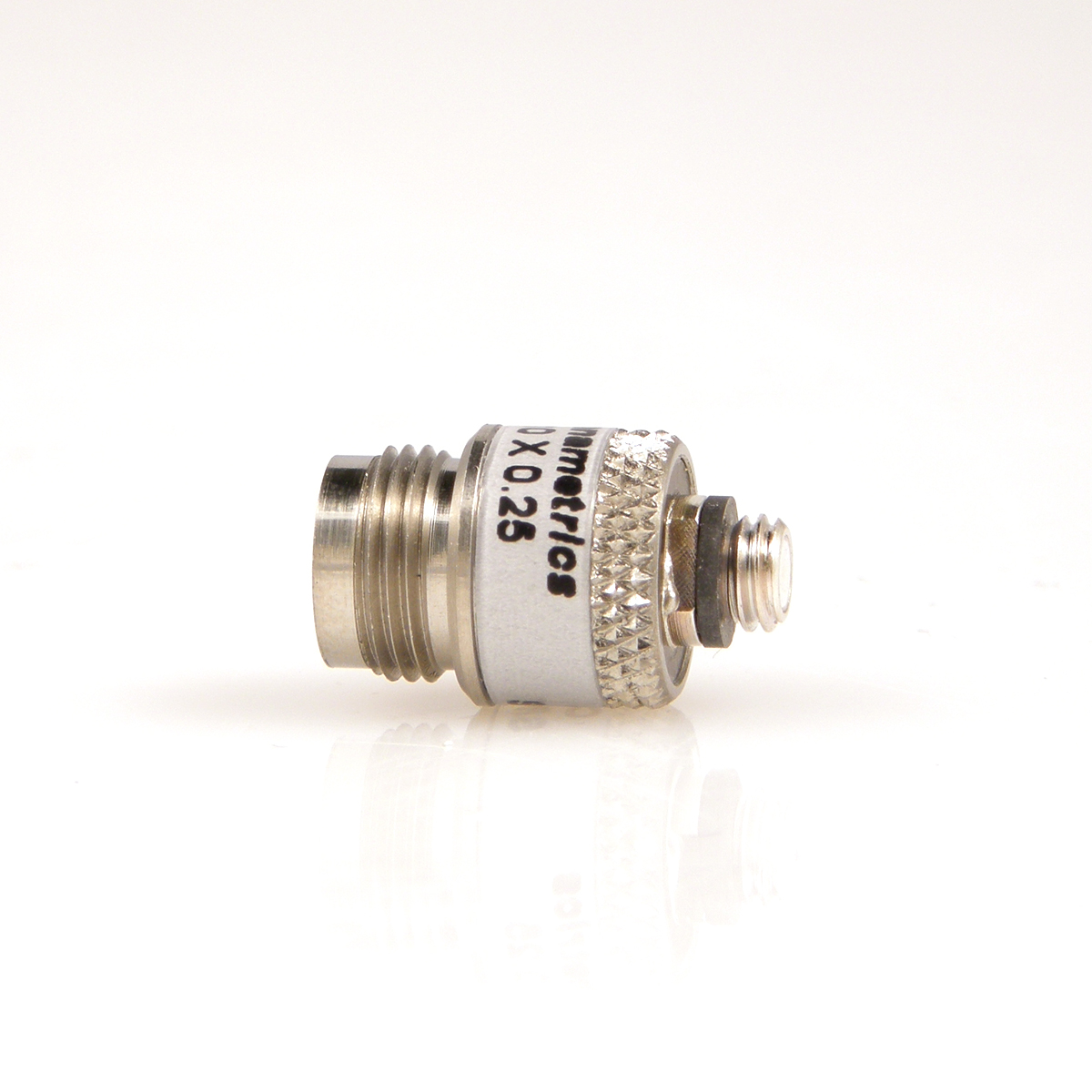

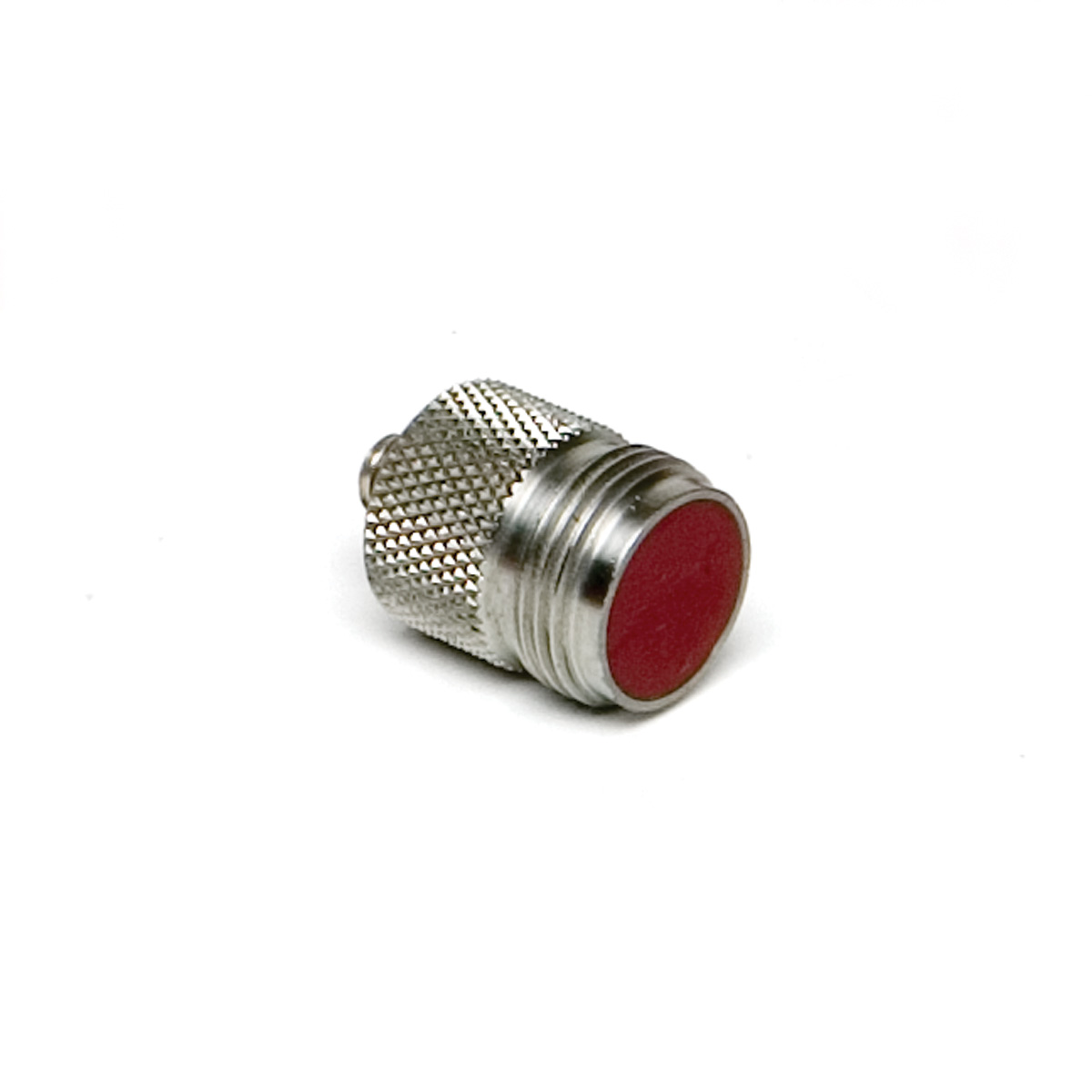

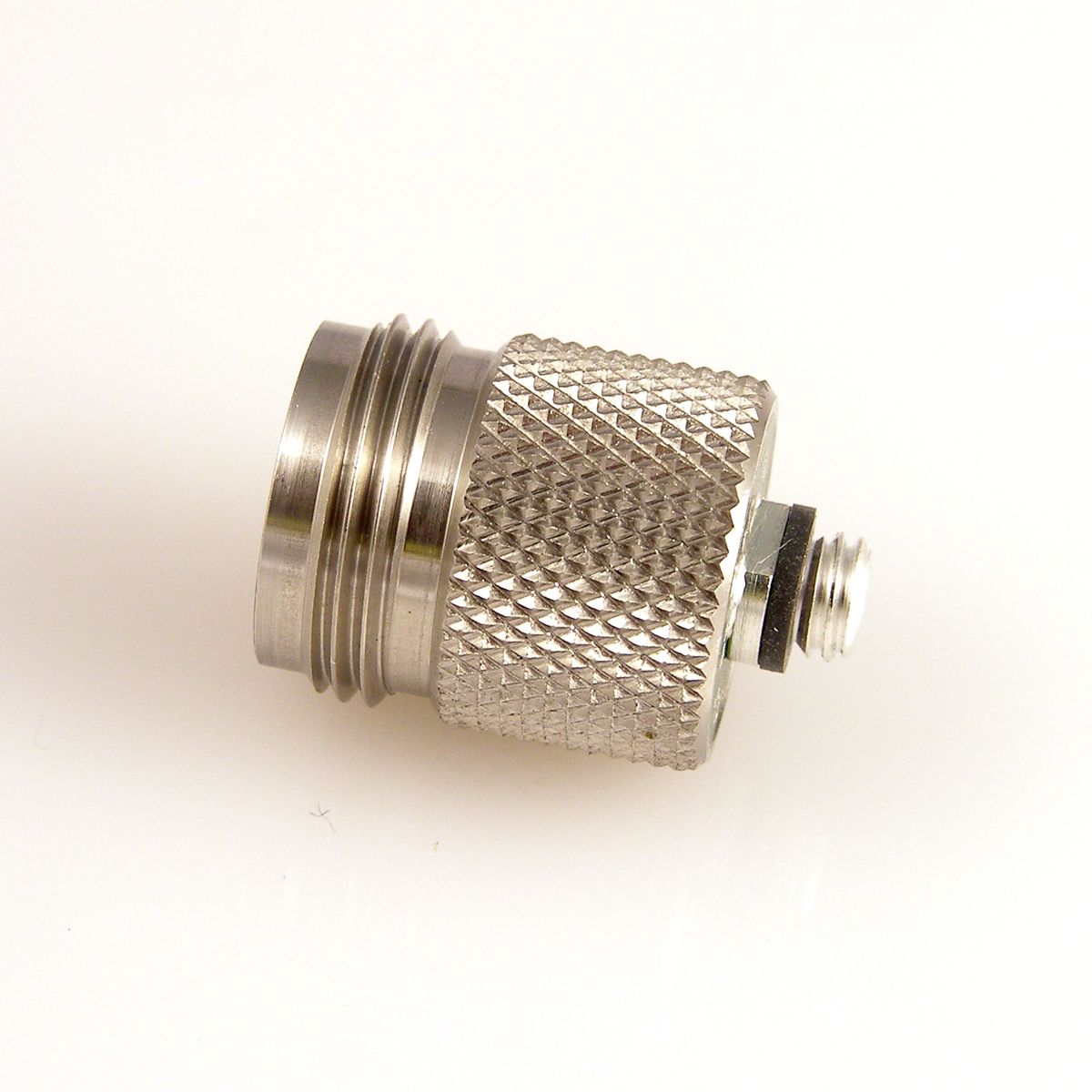

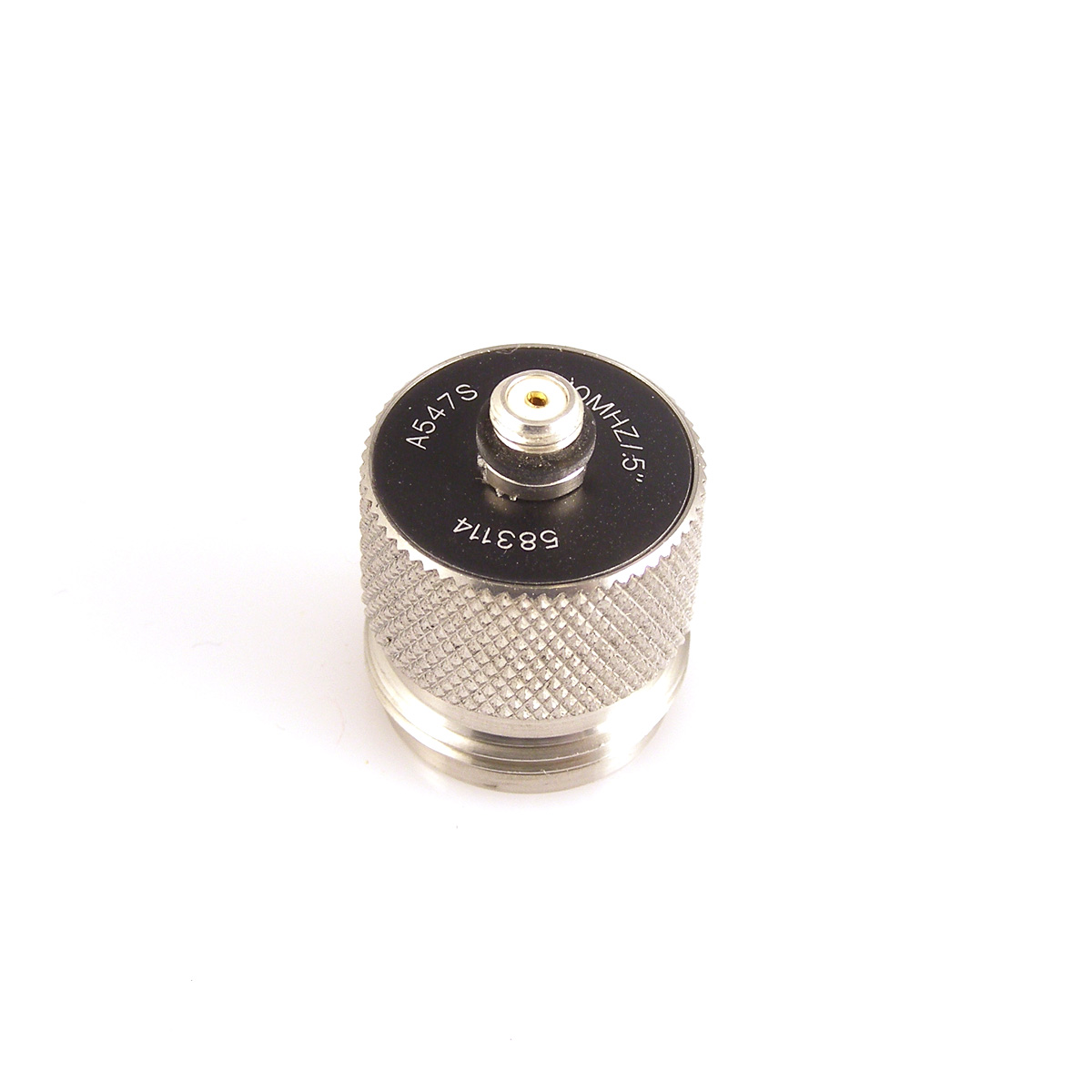

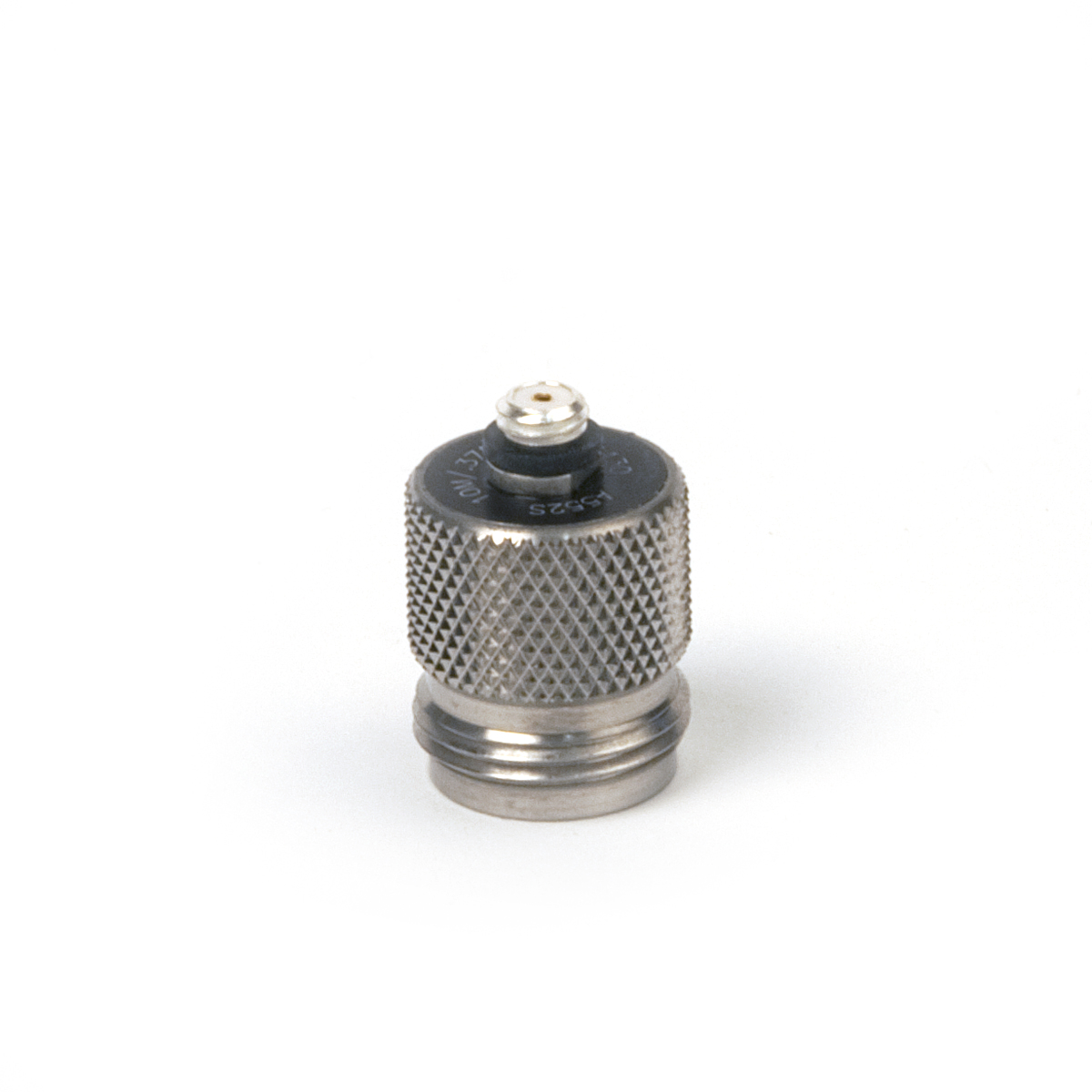

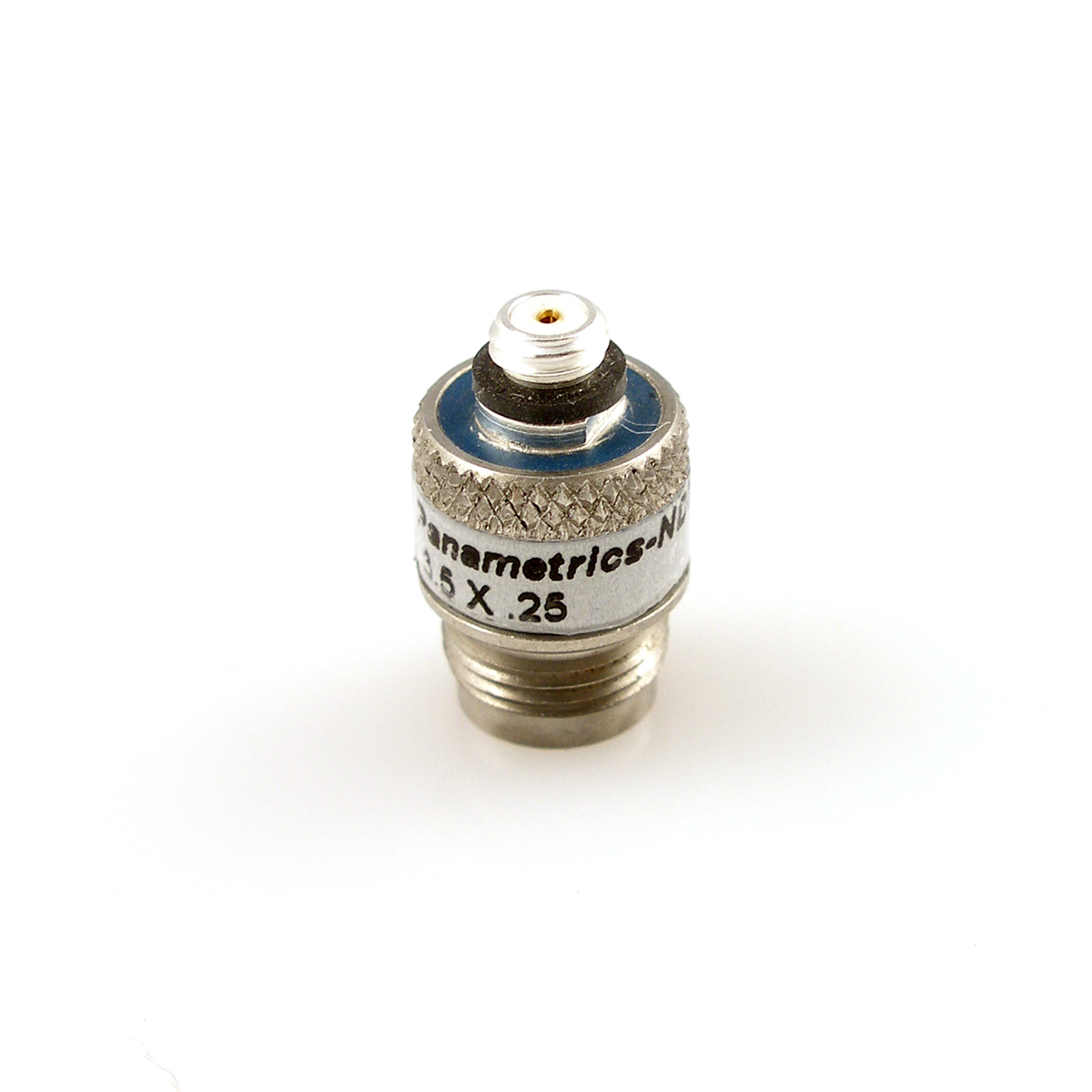

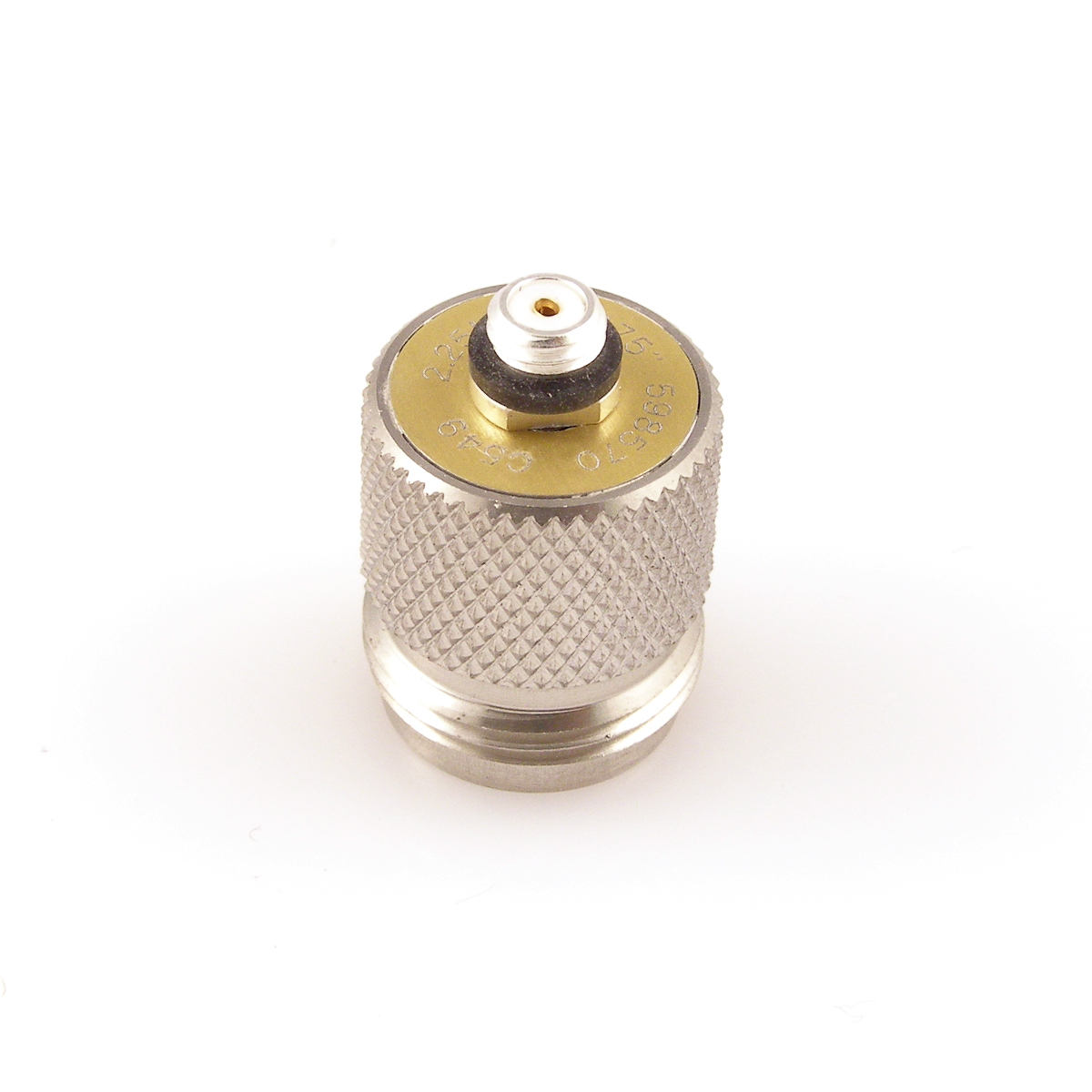

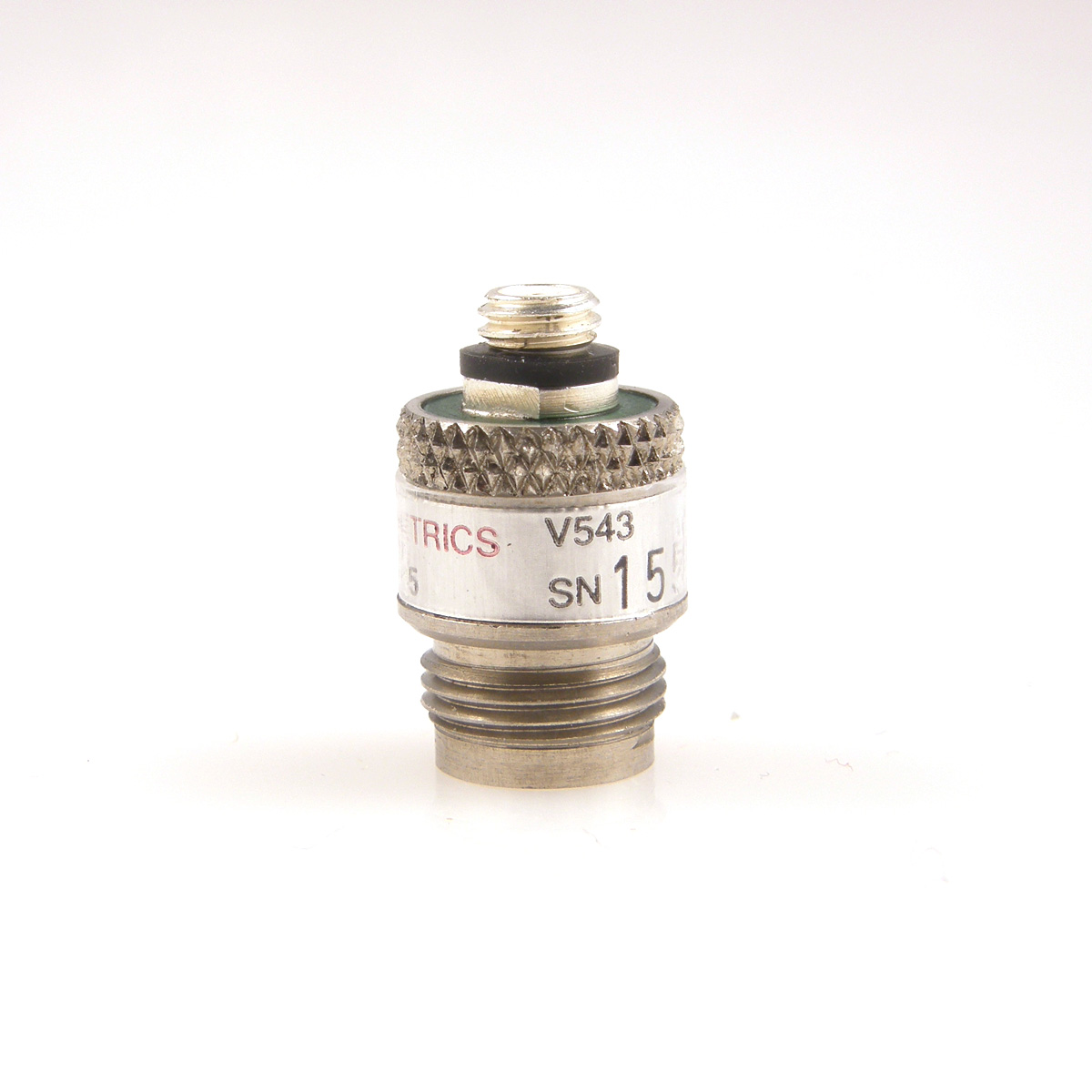

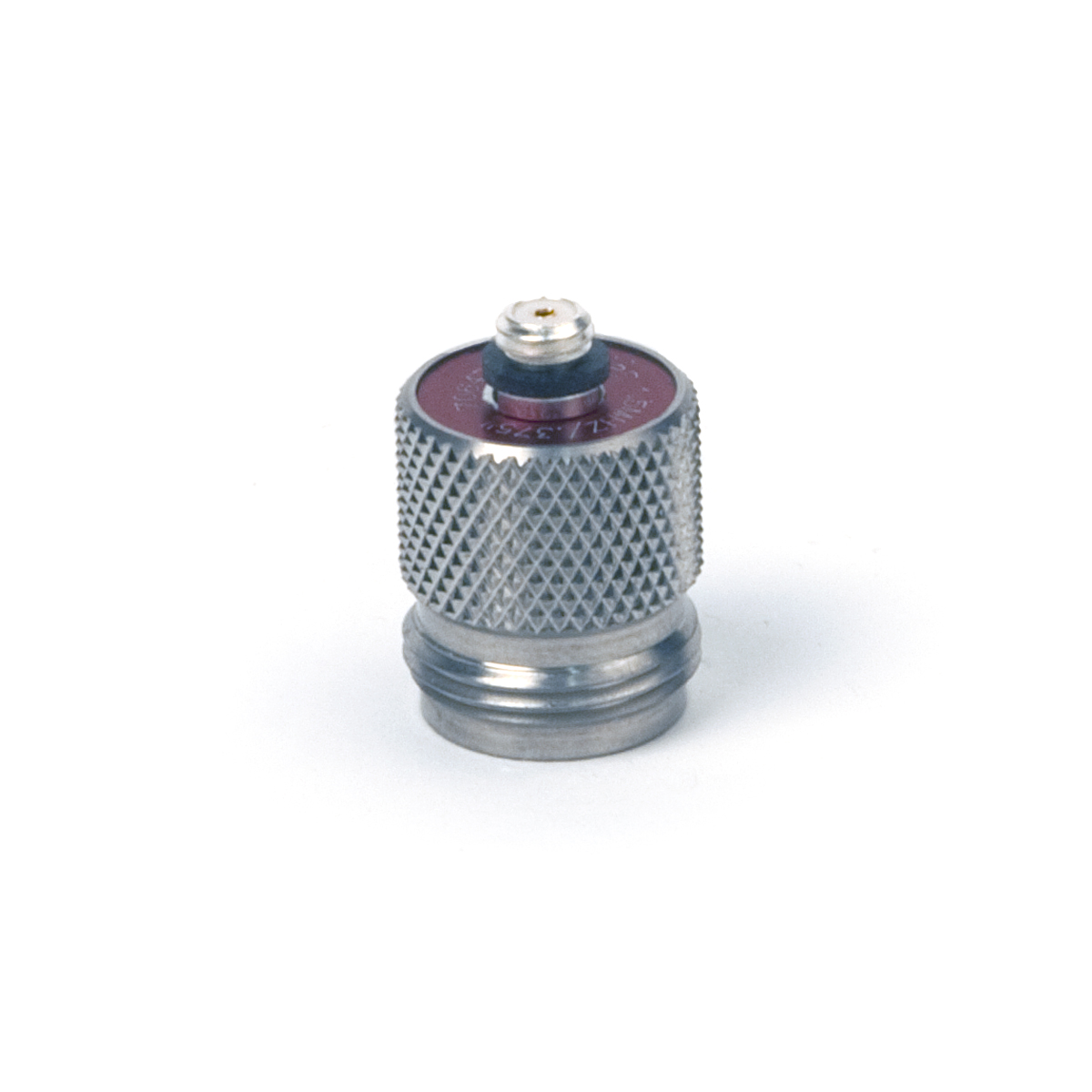

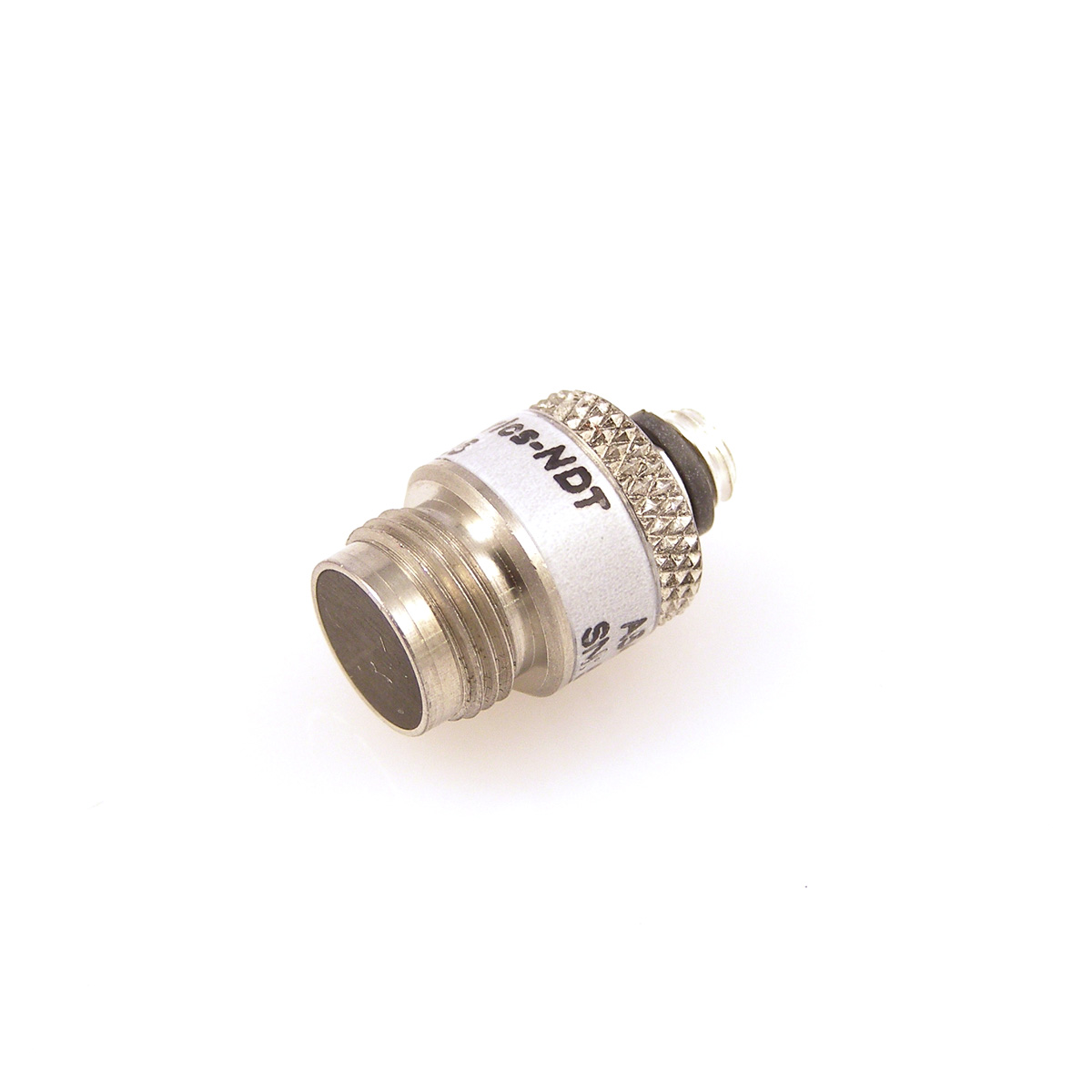

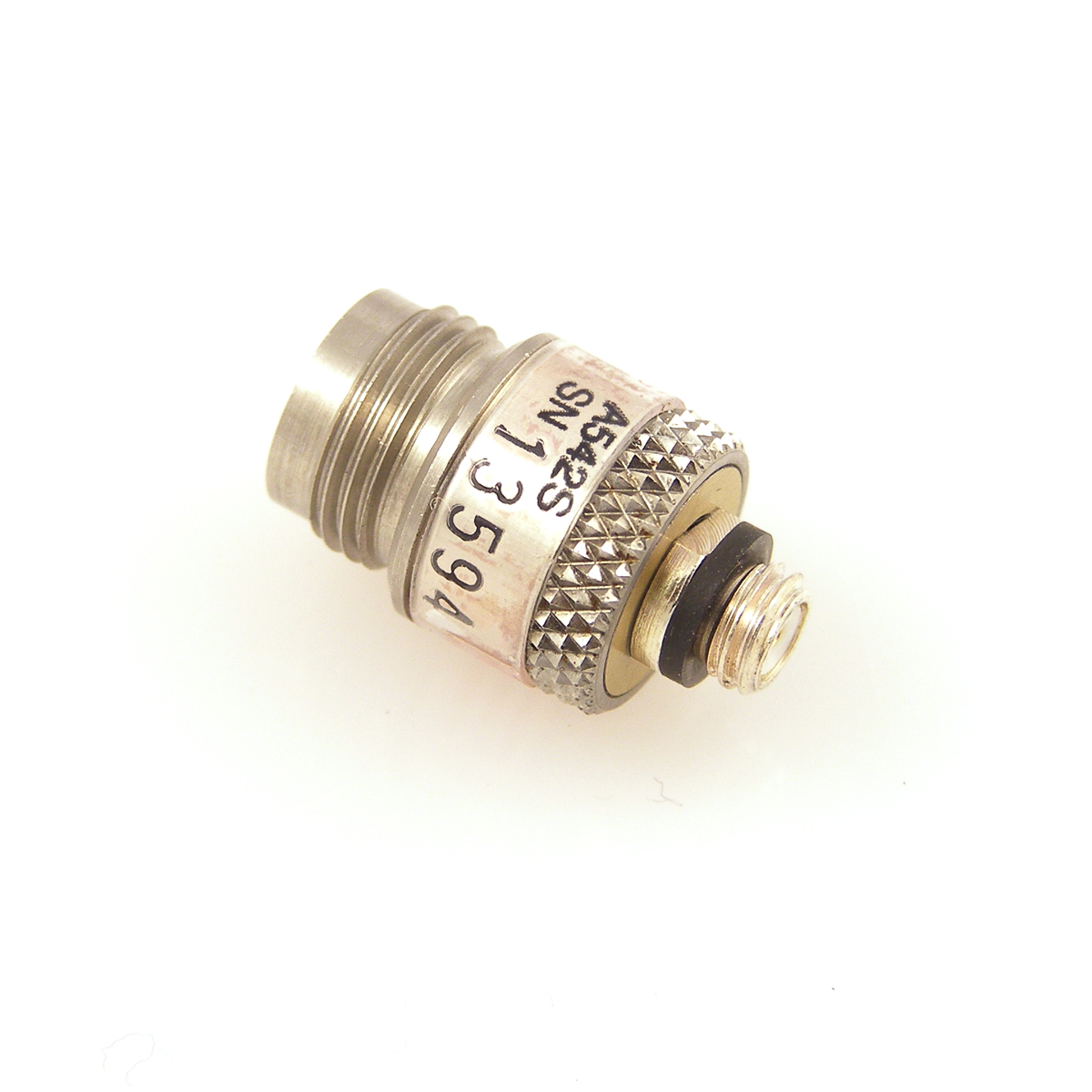

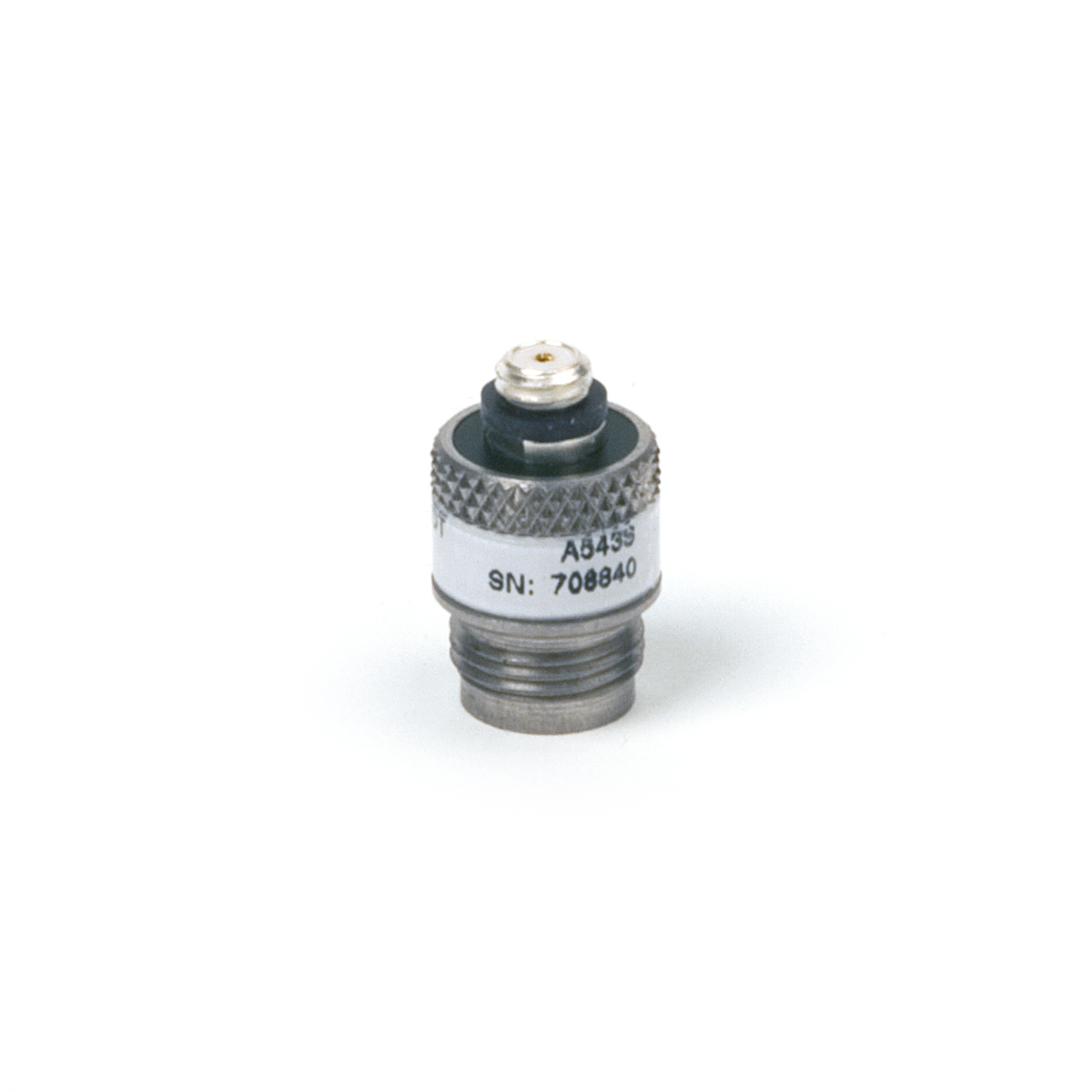

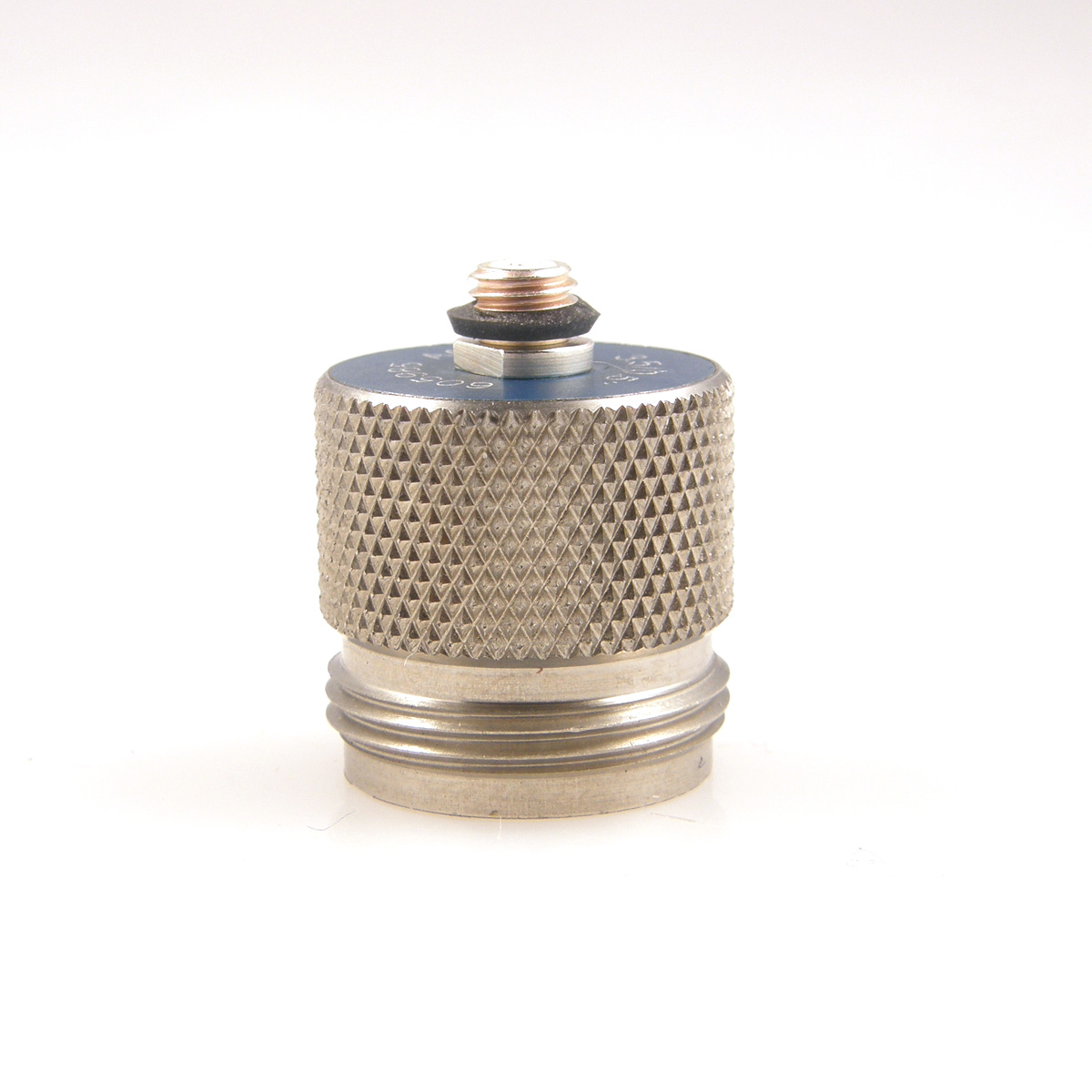

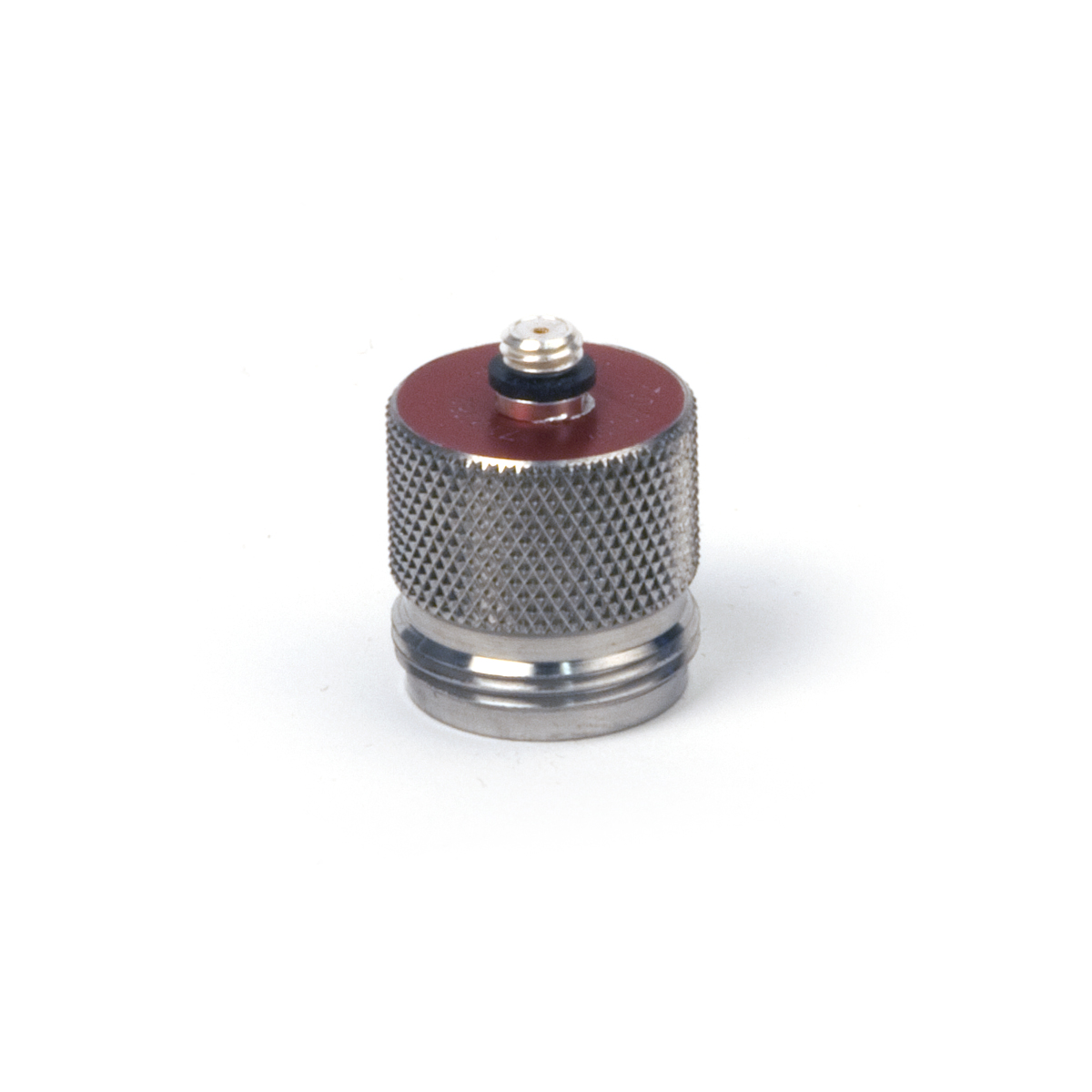

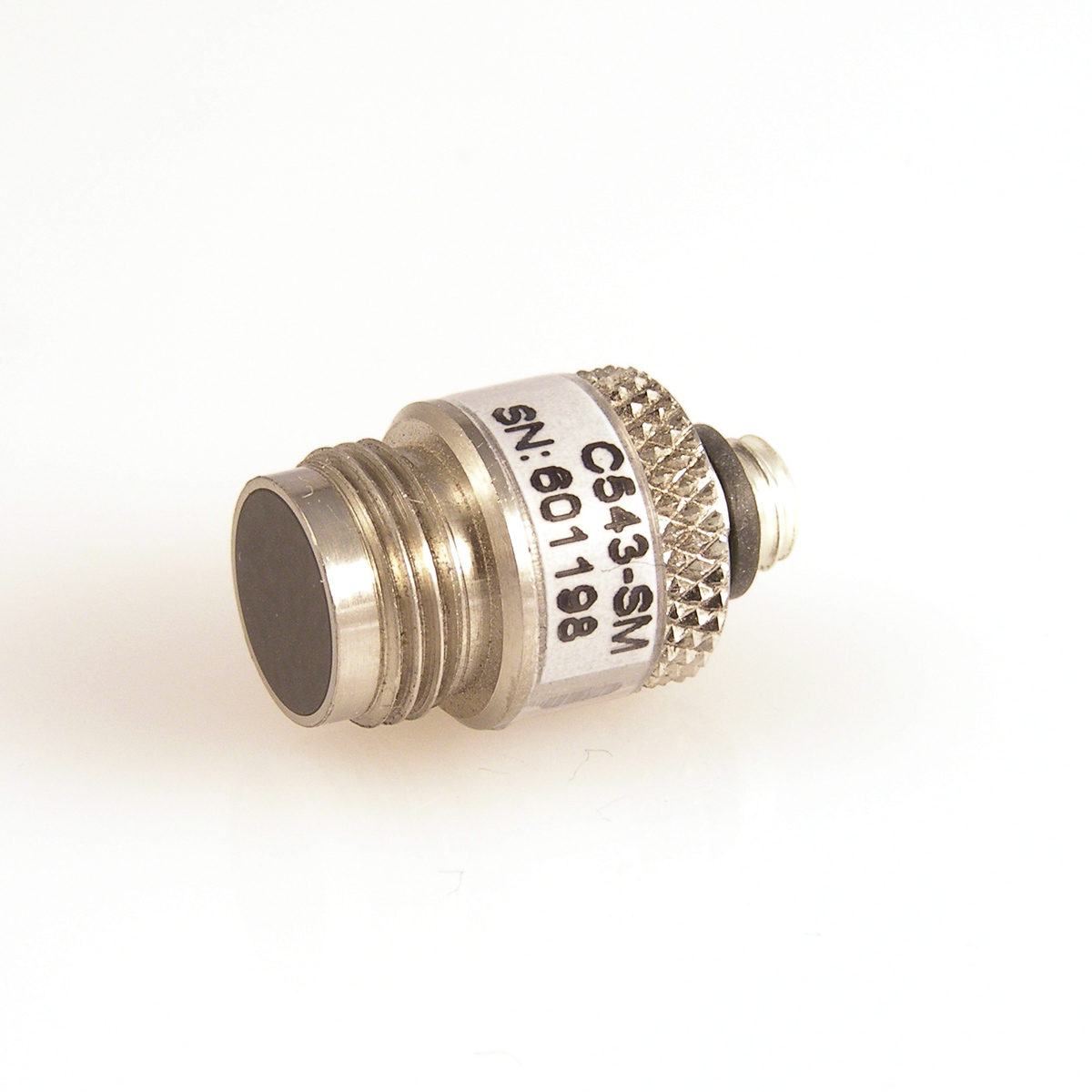

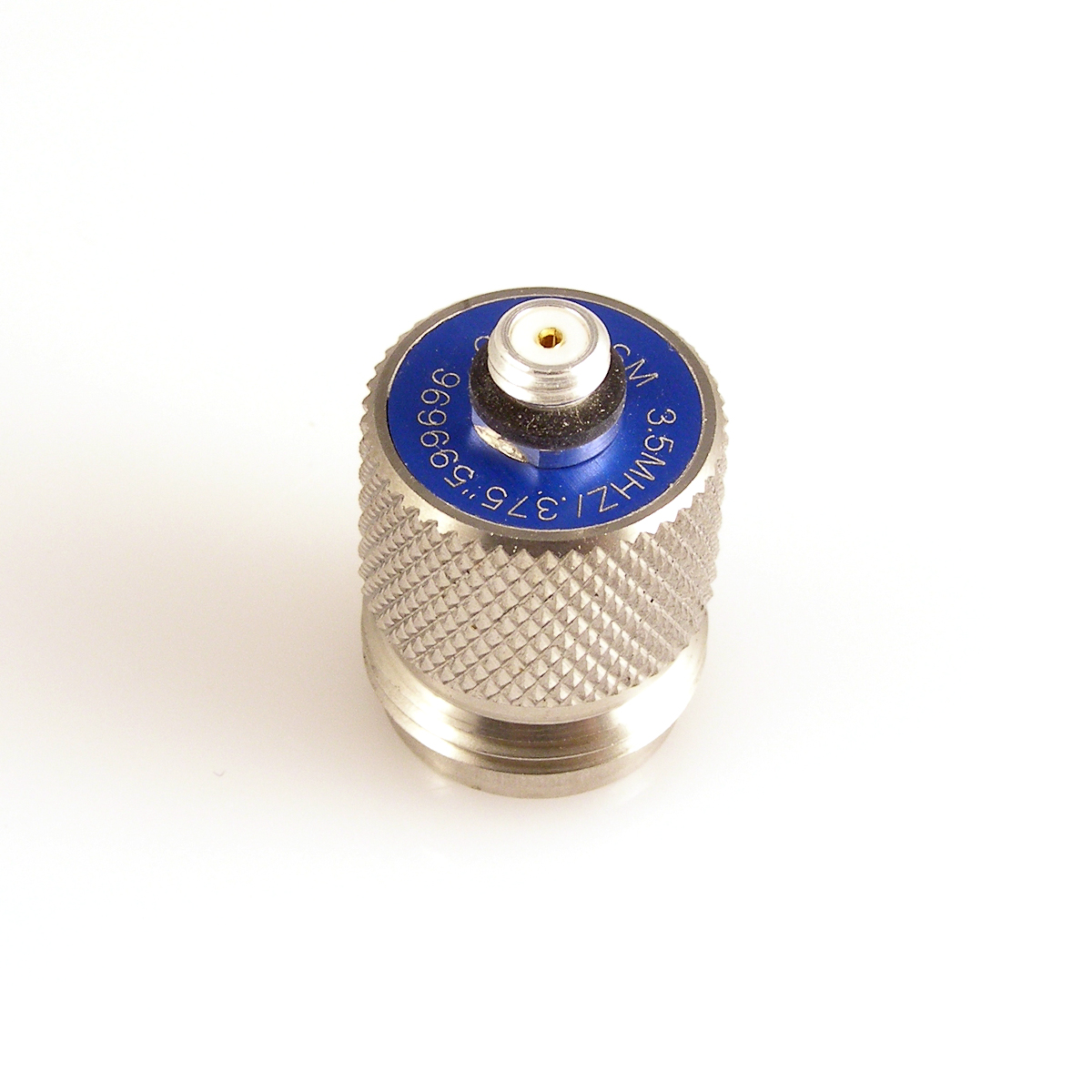

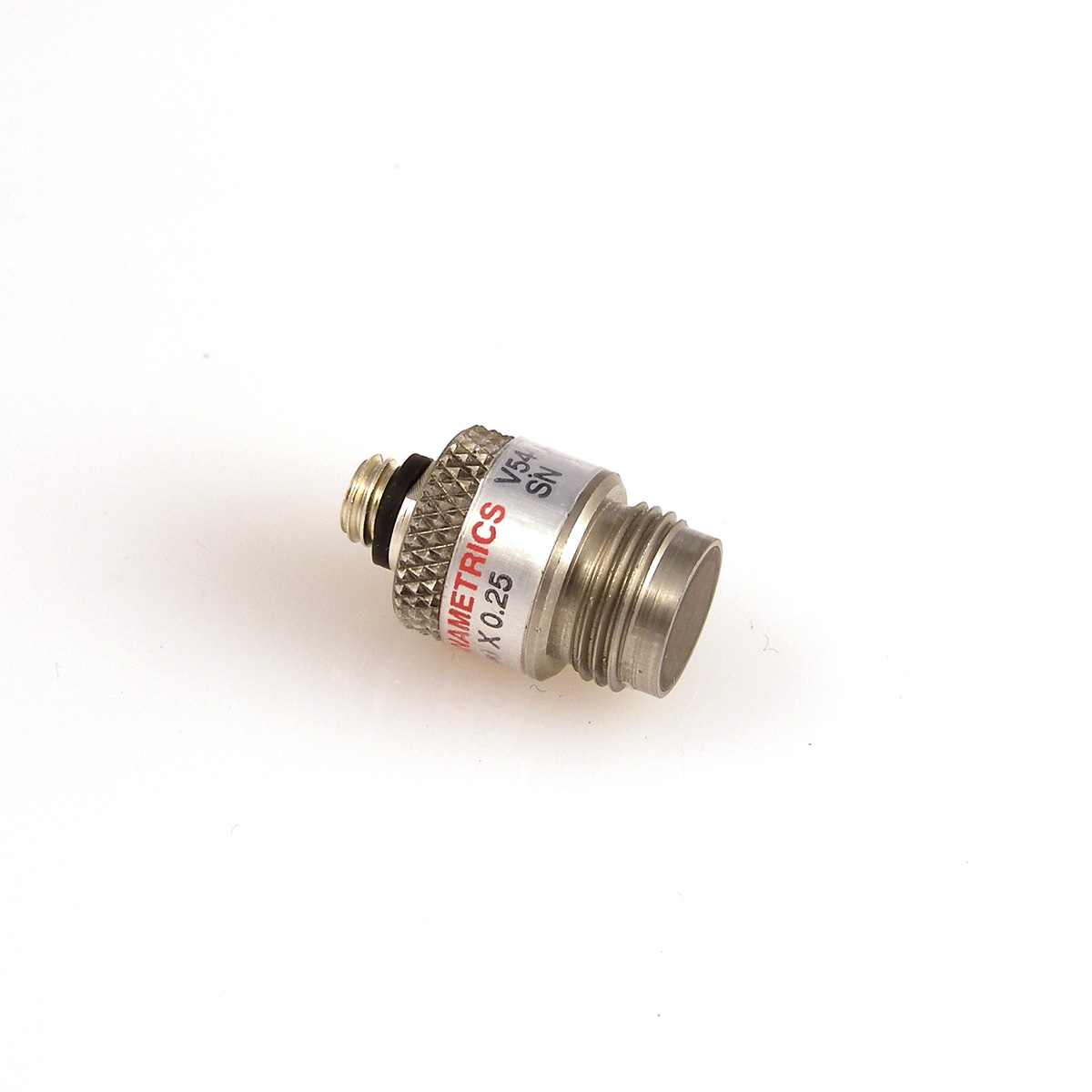

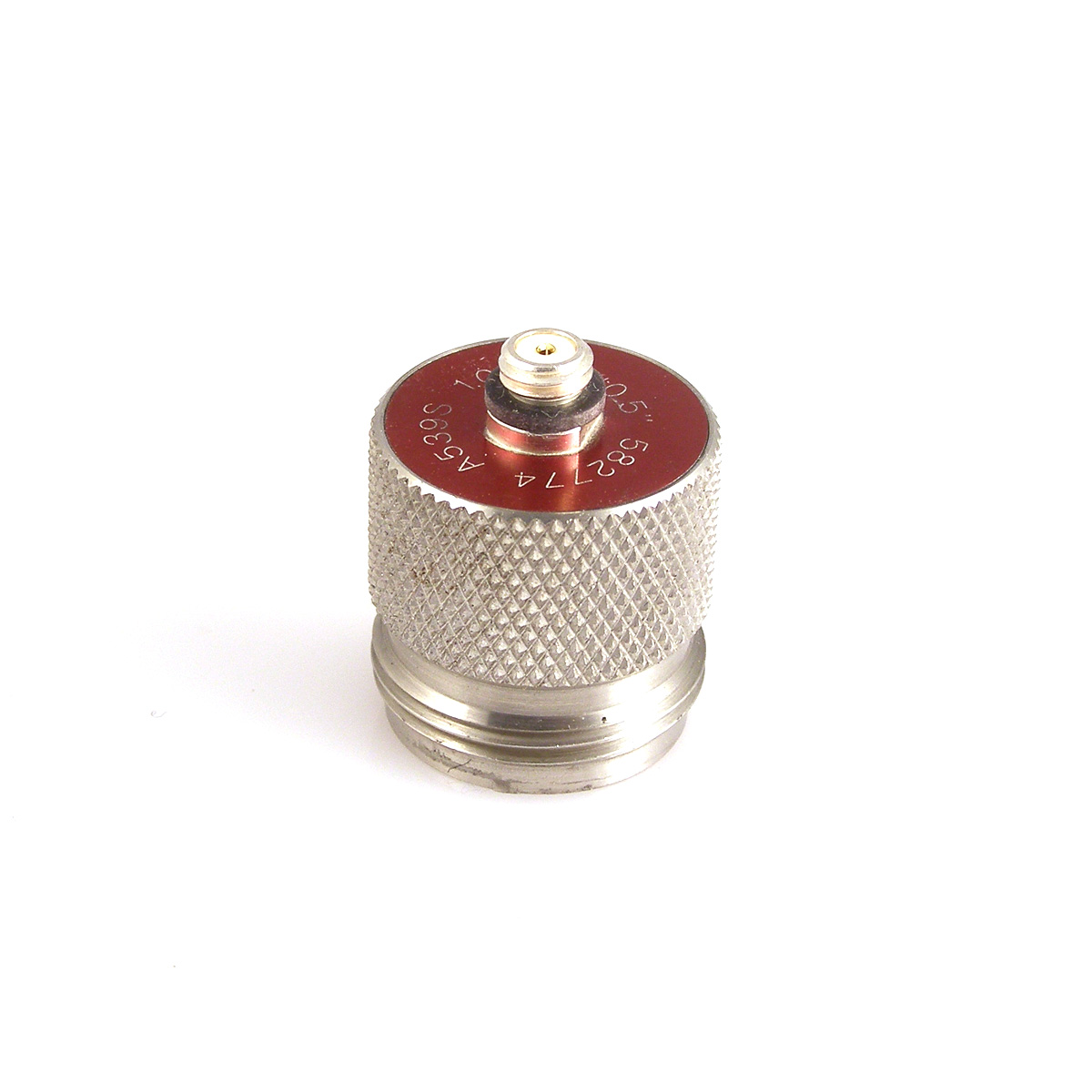

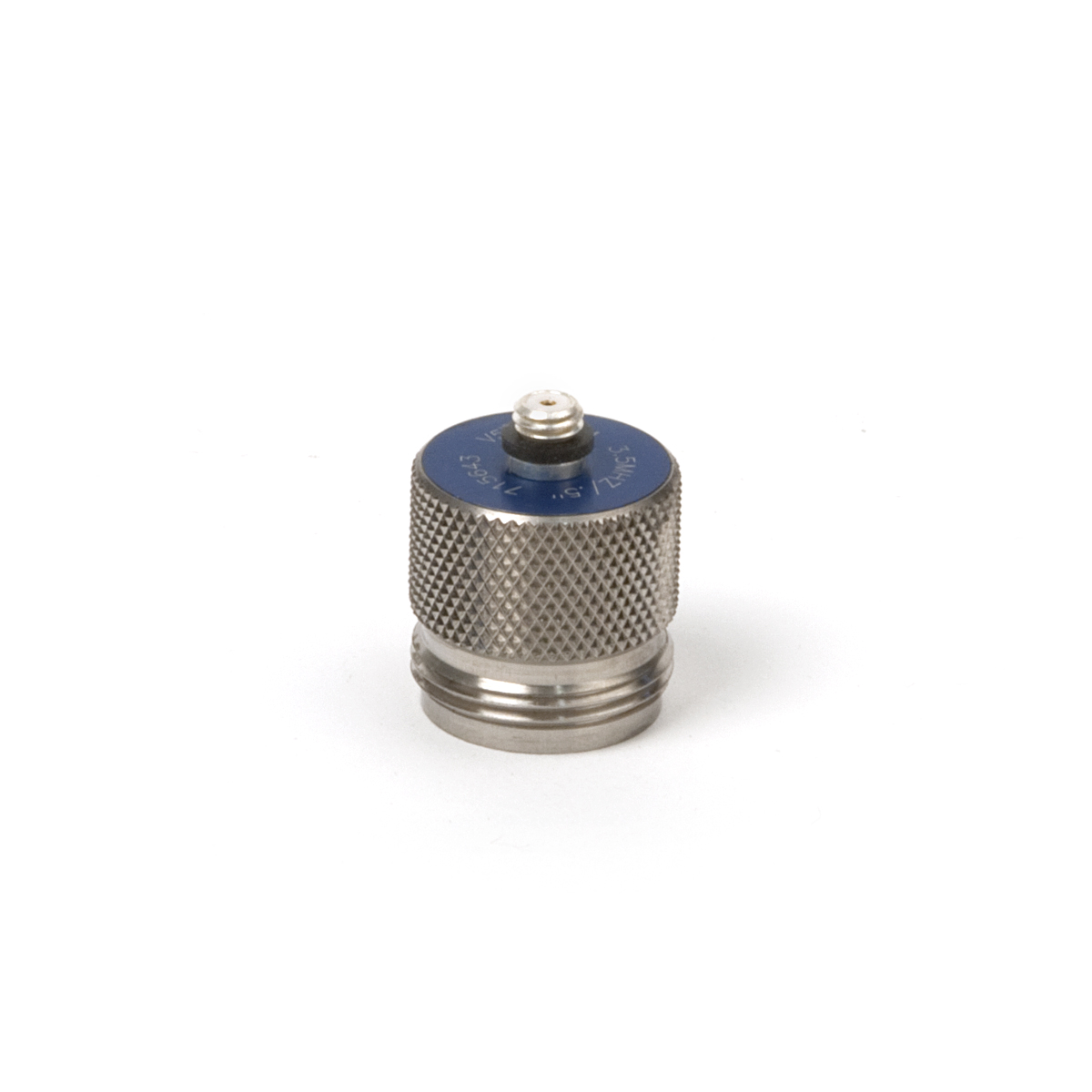

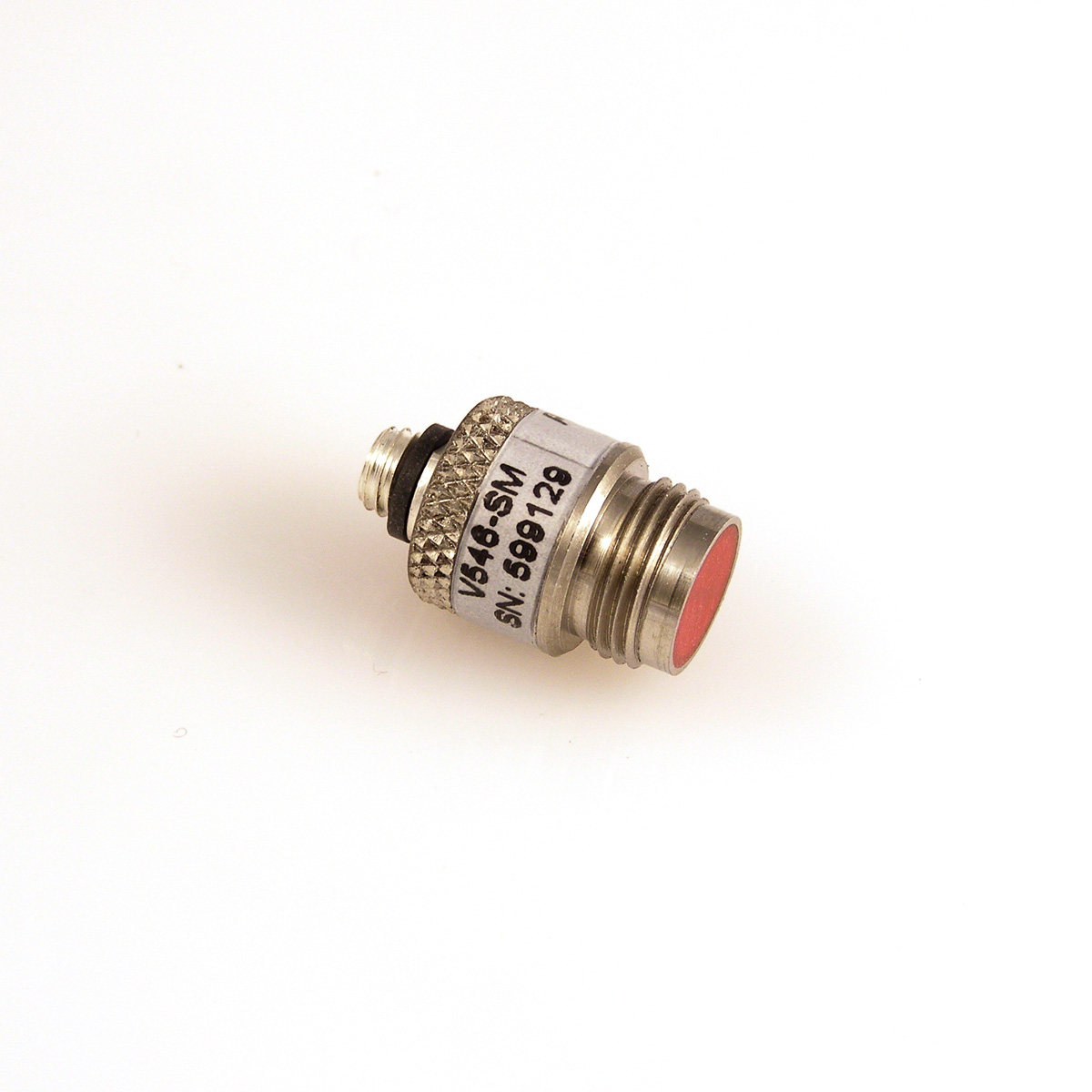

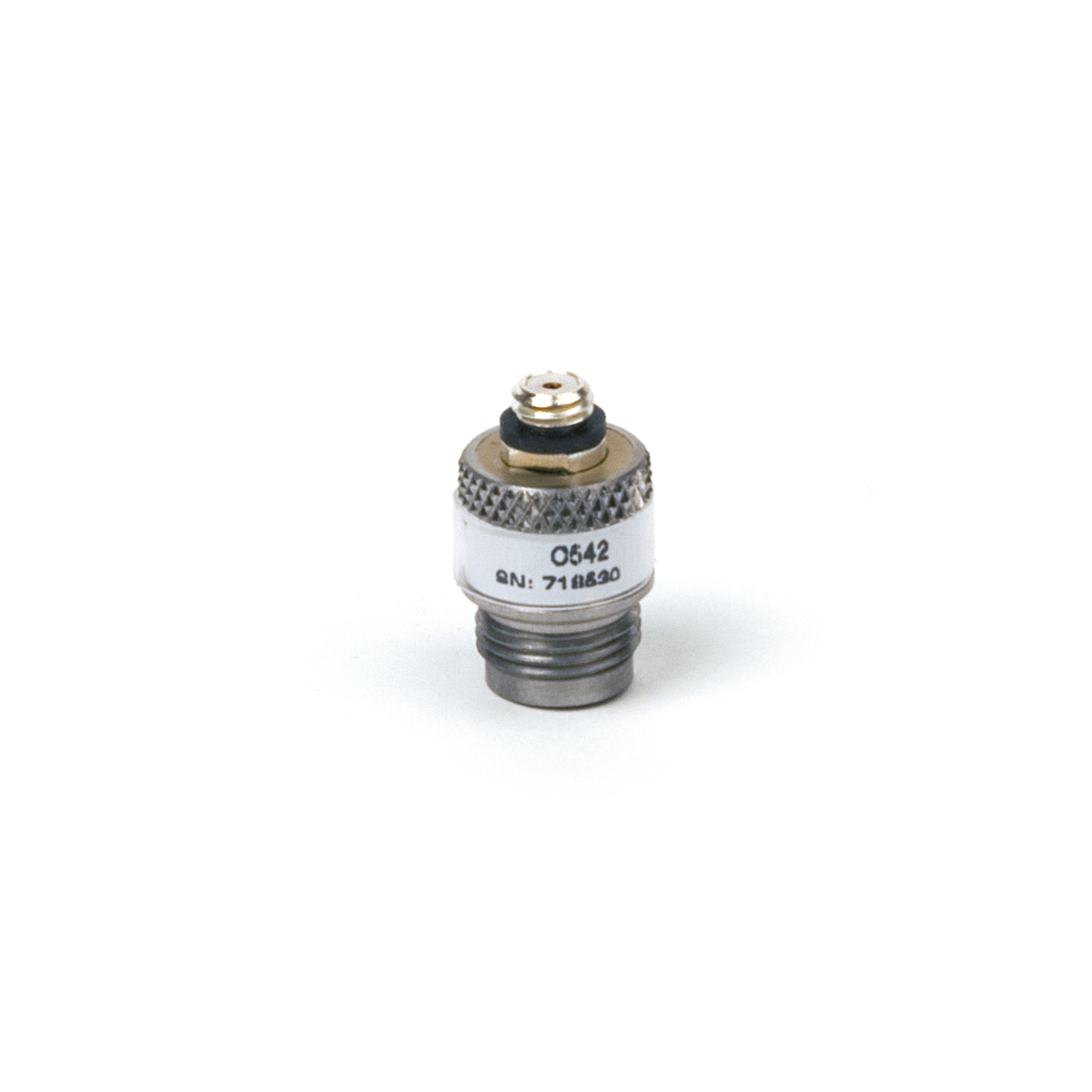

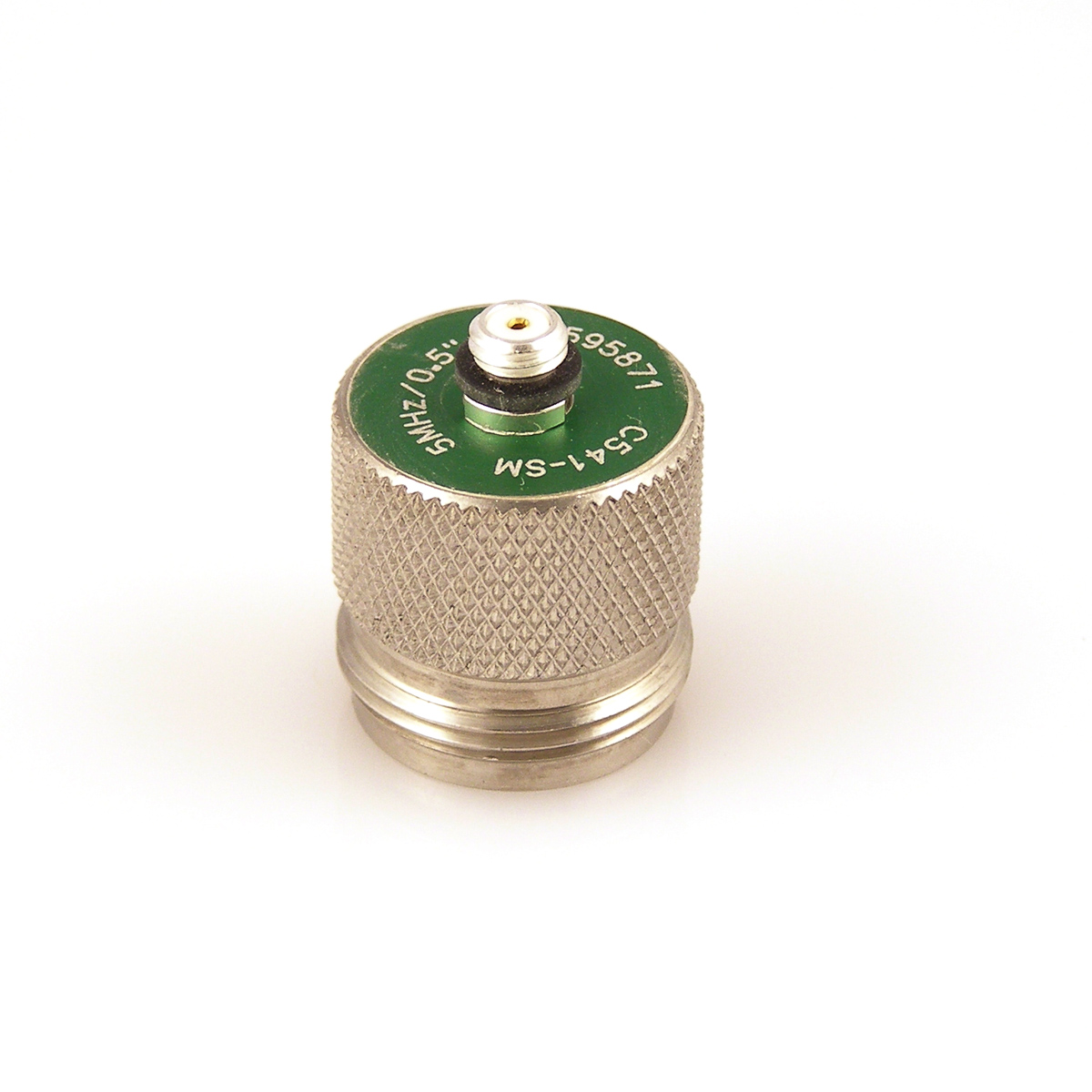

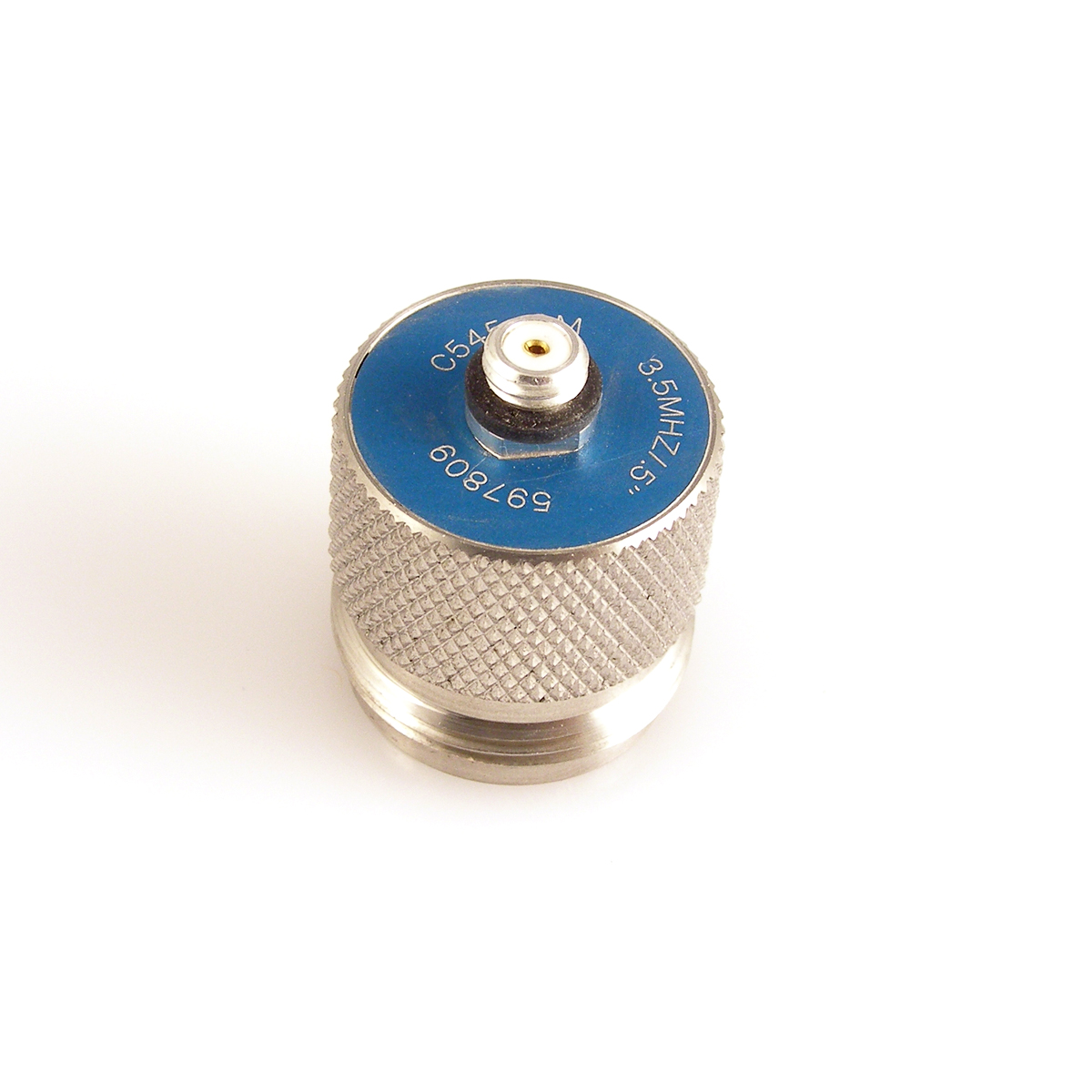

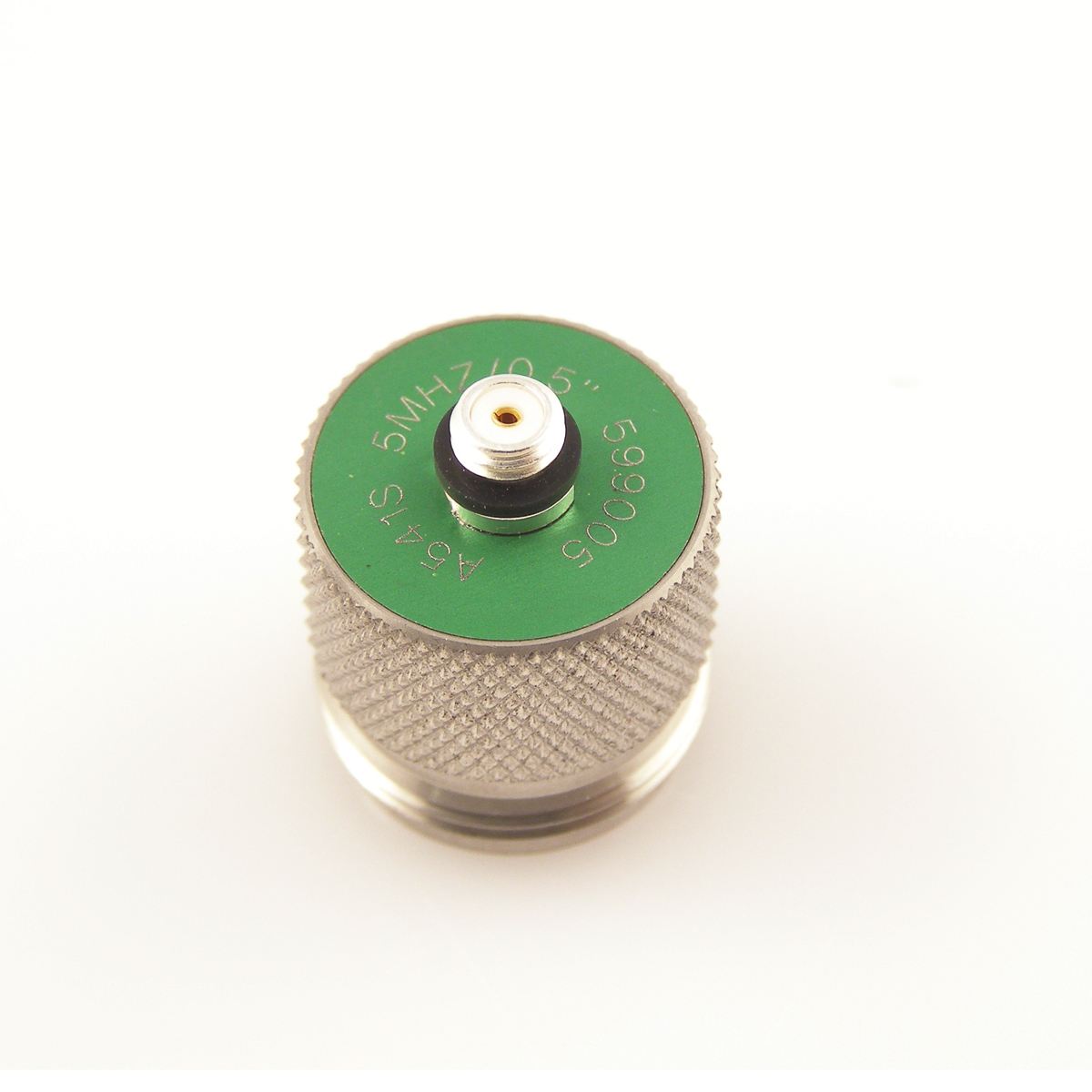

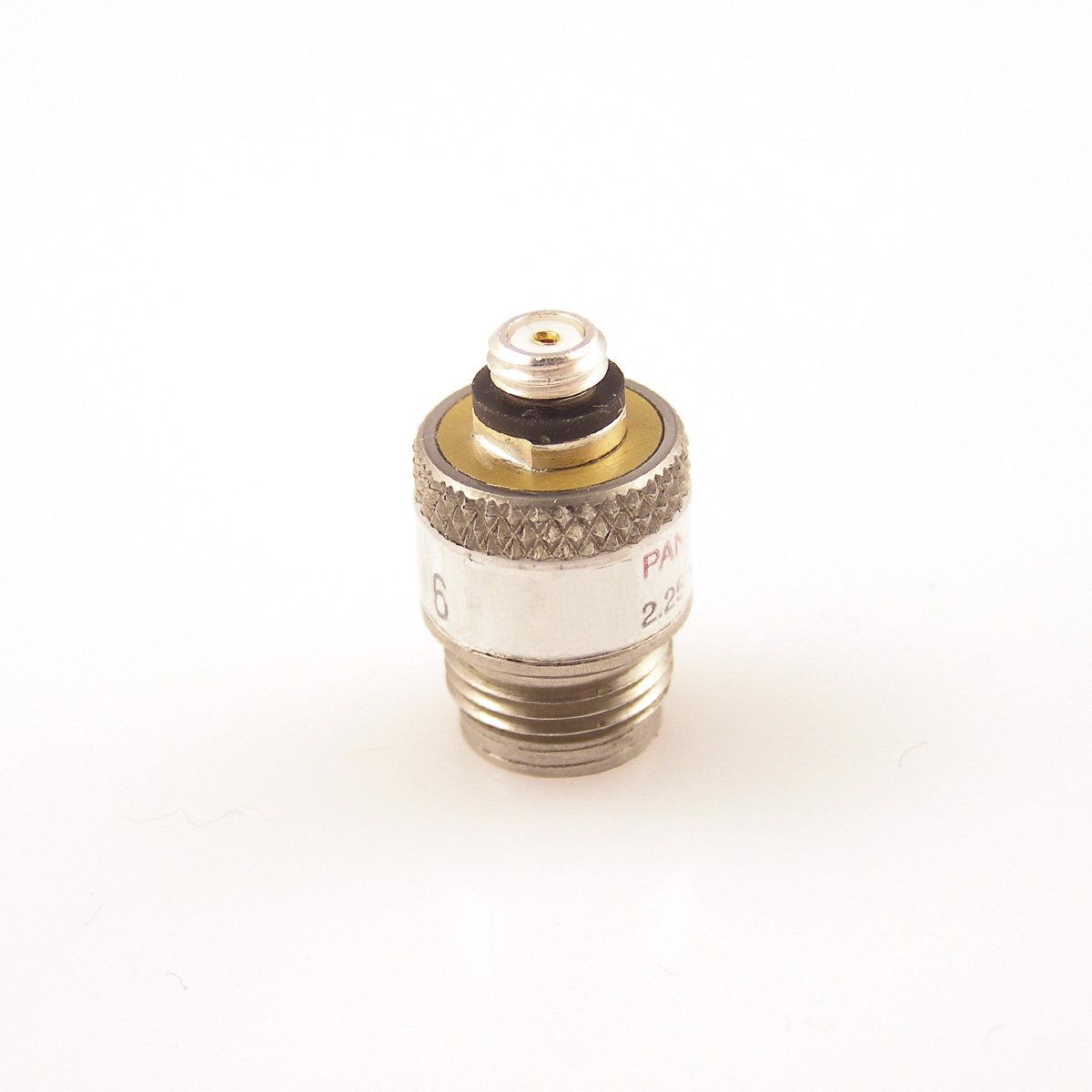

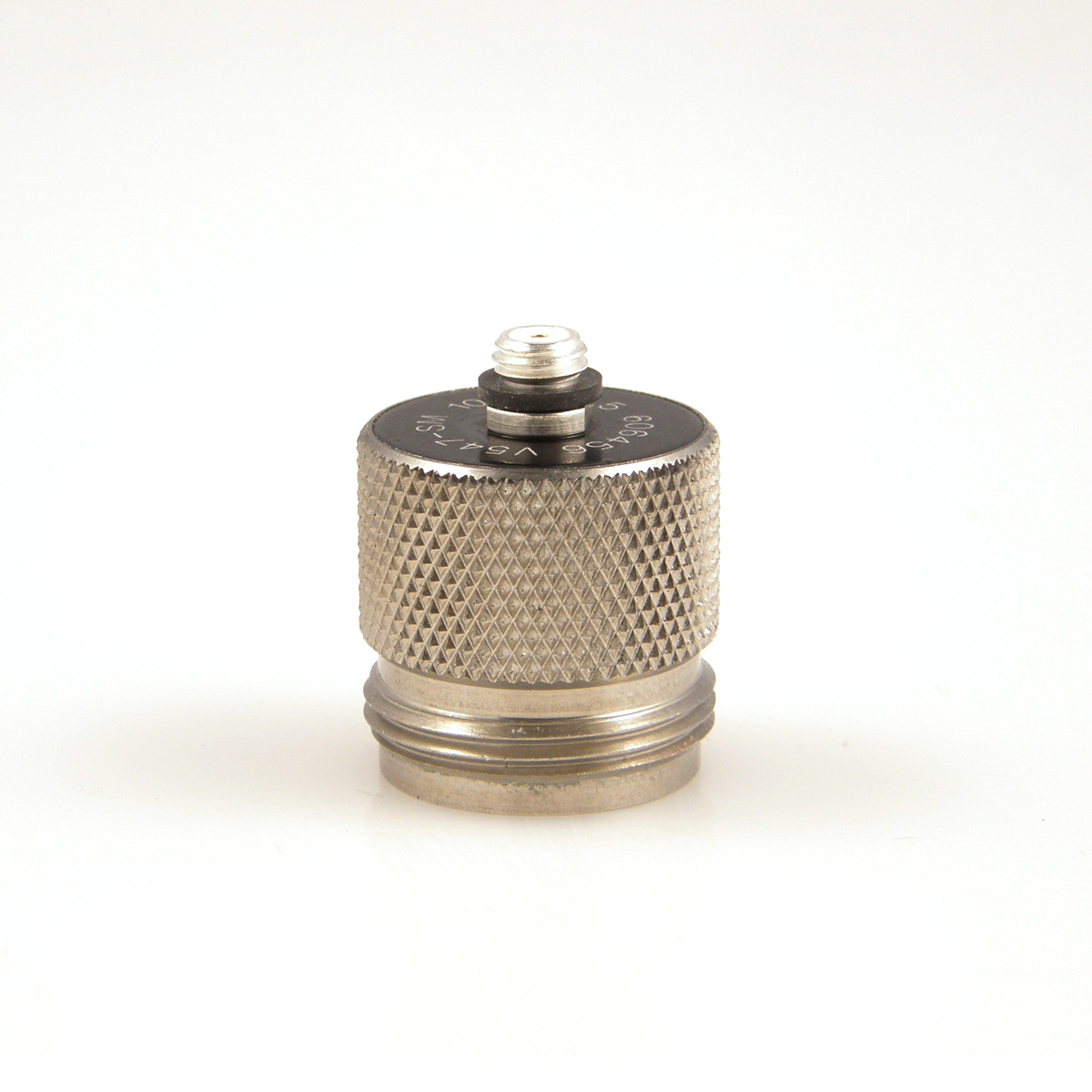

Miniature Screw-In Transducers
| Transducer Dimensions (in inches)
| |||||||||||||||||||||||||
Transducers Configurator
Request a quote or purchase a transducer by selecting the item number.
| Frequency (MHz) | Nominal Element Size | ACCUSCAN-S | CENTRASCAN | VIDEOSCAN | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | Part / Item No. | Part / Item No. | Part / Item No. | ||||||||

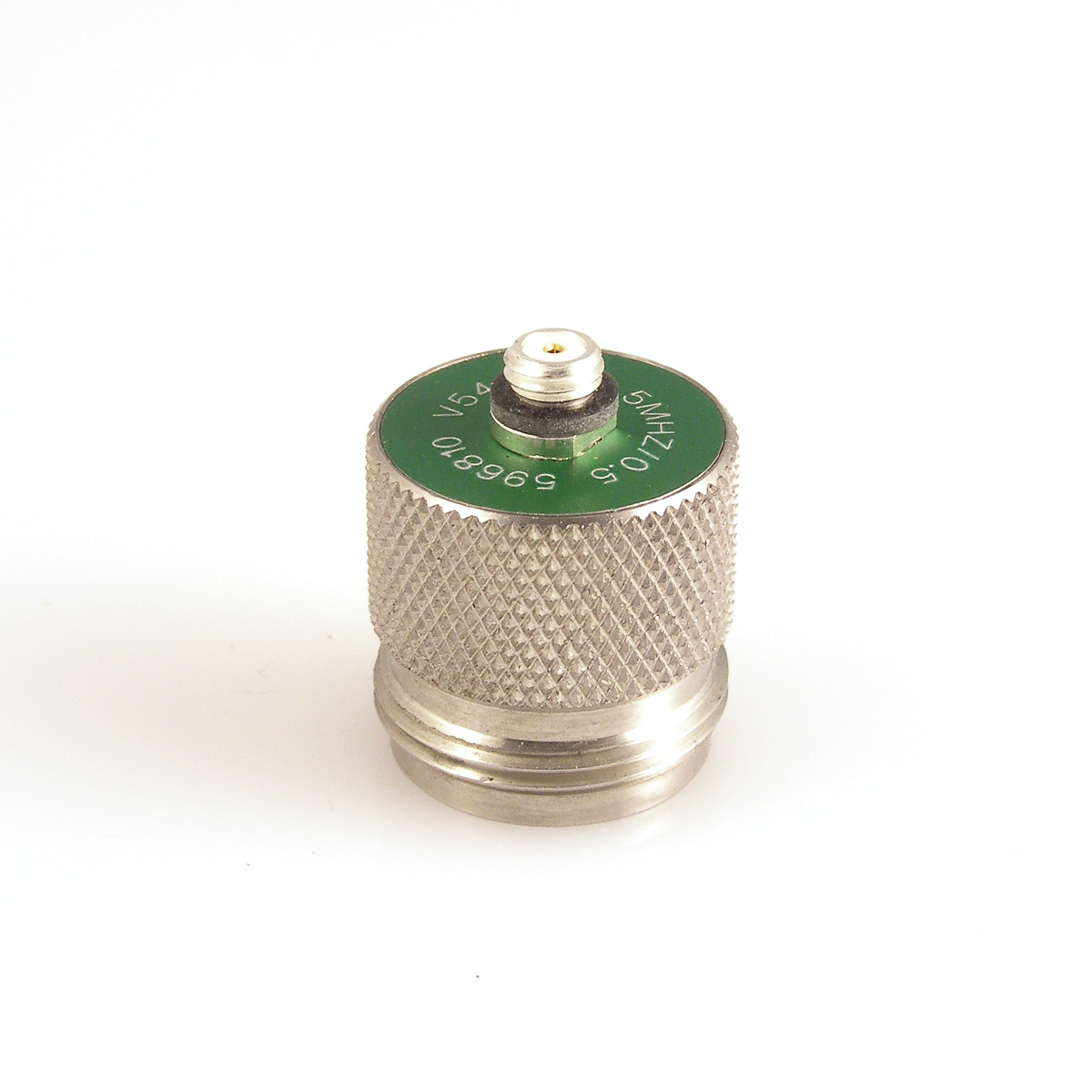

| 1 | 0.375 | 10 | C548-SMU8435024
| |||||||||
| 1 | 0.5 | 13 | A539S-SMU8431027
| C539-SMU8435016
| V539-SMU8436018
| |||||||
| 1.5 | 0.375 | 10 | A548S-SMU8431036
| |||||||||
| 2.25 | 0.25 | 6 | A542S-SMU8431030
| C542-SMU8435019
| V542-SMU8436021
| |||||||
| 2.25 | 0.375 | 10 | A549S-SMU8431037
| C549-SMU8435025
| V549-SMU8436027
| |||||||

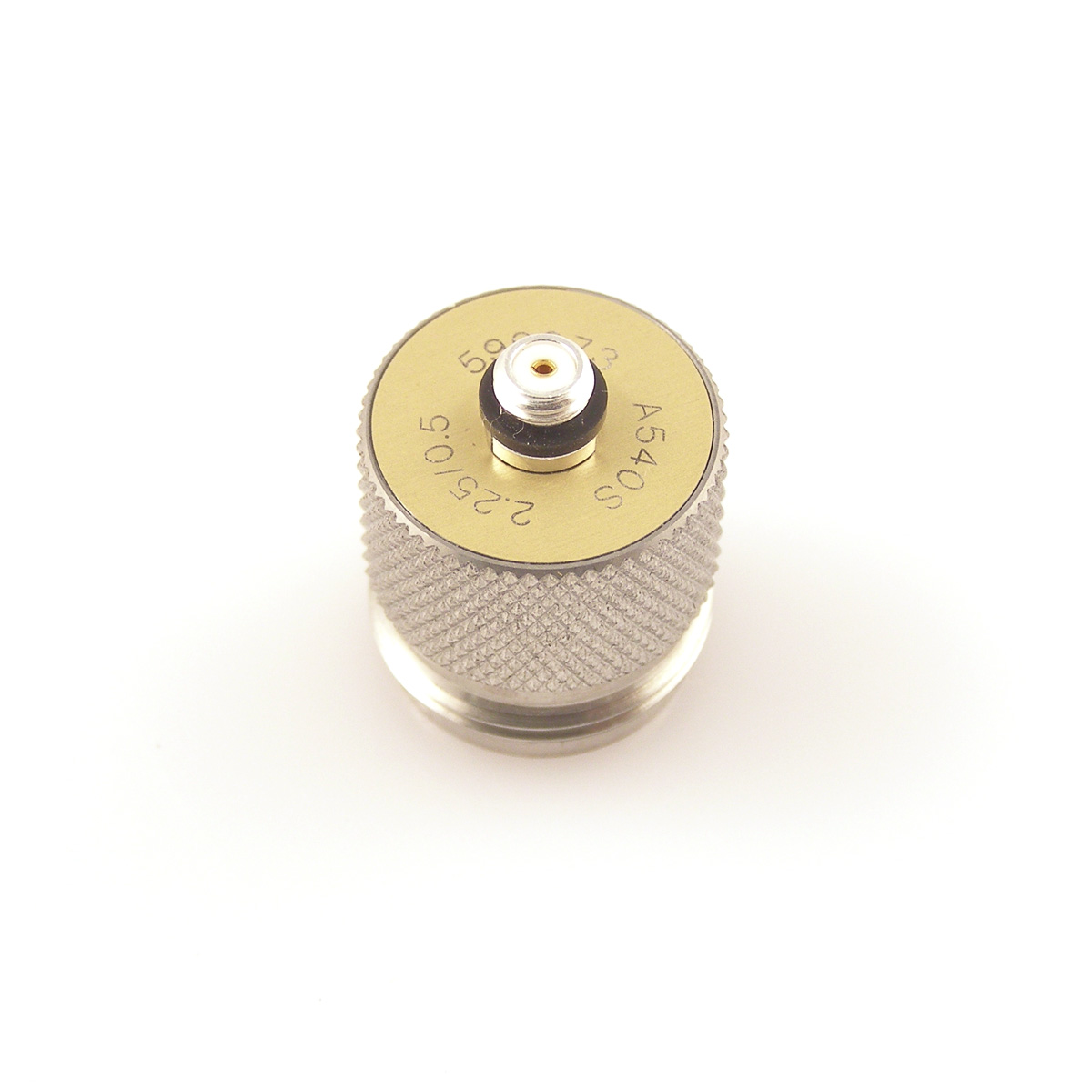

| 2.25 | 0.5 | 13 | A540S-SMU8431028
| C540-SMU8435017
| V540-SMU8436019
| |||||||
| 3.5 | 0.25 | 6 | A546S-SMU8431034
| C546-SMU8435023
| V546-SMU8436025
| |||||||
| 3.5 | 0.375 | 10 | A550S-SMU8431038
| C550-SMU8435026
| V550-SMU8436028
| |||||||
| 3.5 | 0.5 | 13 | A545S-SMU8431033
| C545-SMU8435022
| V545-SMU8436024
| |||||||
| 5 | 0.25 | 6 | A543S-SMU8431031
| C543-SMU8435020
| V543-SMU8436022
| |||||||
| 5 | 0.375 | 10 | A551S-SMU8431039
| C551-SMU8435027
| V551-SMU8436029
| |||||||
| 5 | 0.5 | 13 | A541S-SMU8431029
| C541-SMU8435018
| V541-SMU8436020
| |||||||
| 10 | 0.25 | 6 | A544S-SMU8431032
| C544-SMU8435021
| V544-SMU8436023
| |||||||
| 10 | 0.375 | 10 | A552S-SMU8431040
| V552-SMU8436030
| ||||||||
| 10 | 0.5 | 13 | A547S-SMU8431035
| V547-SMU8436026
| ||||||||

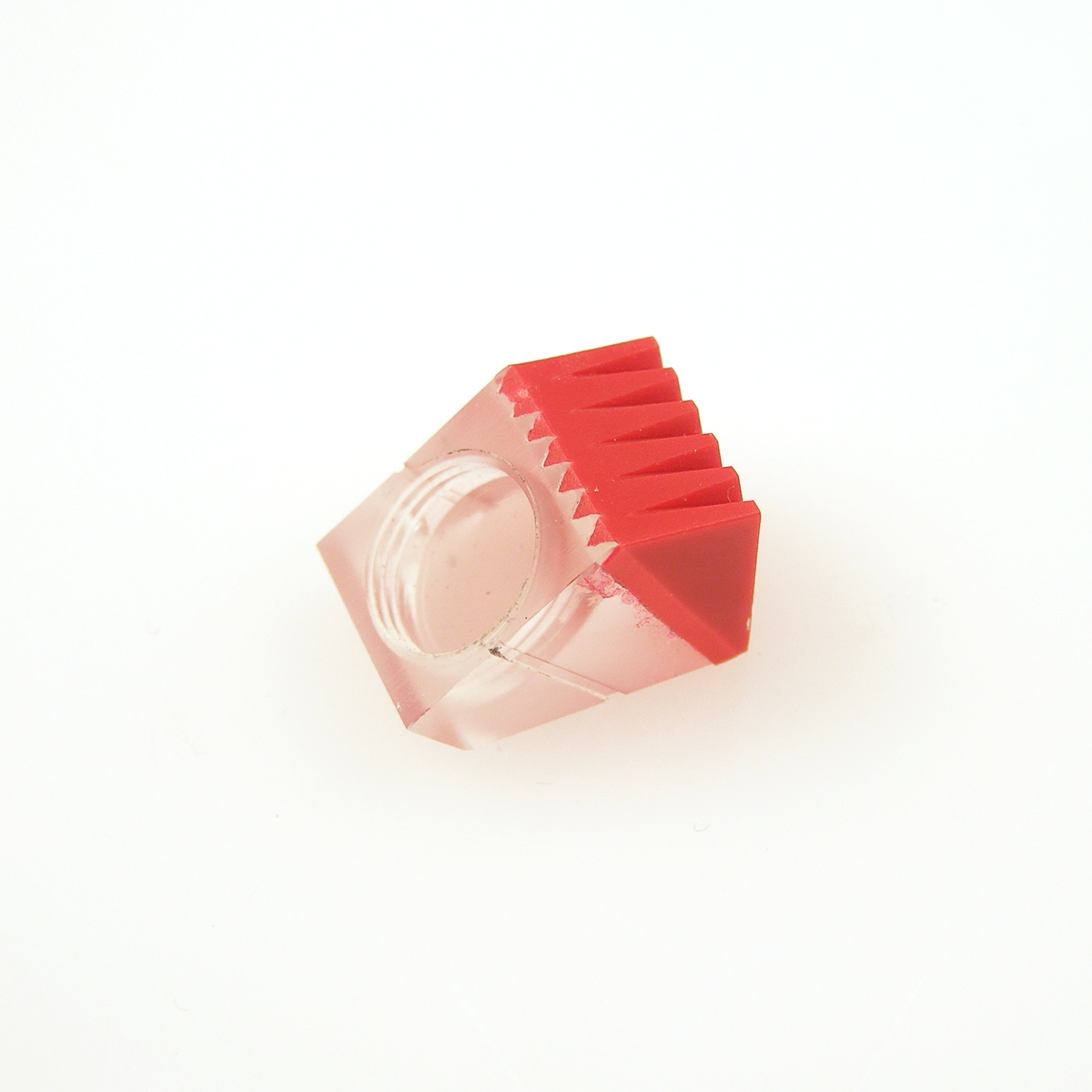

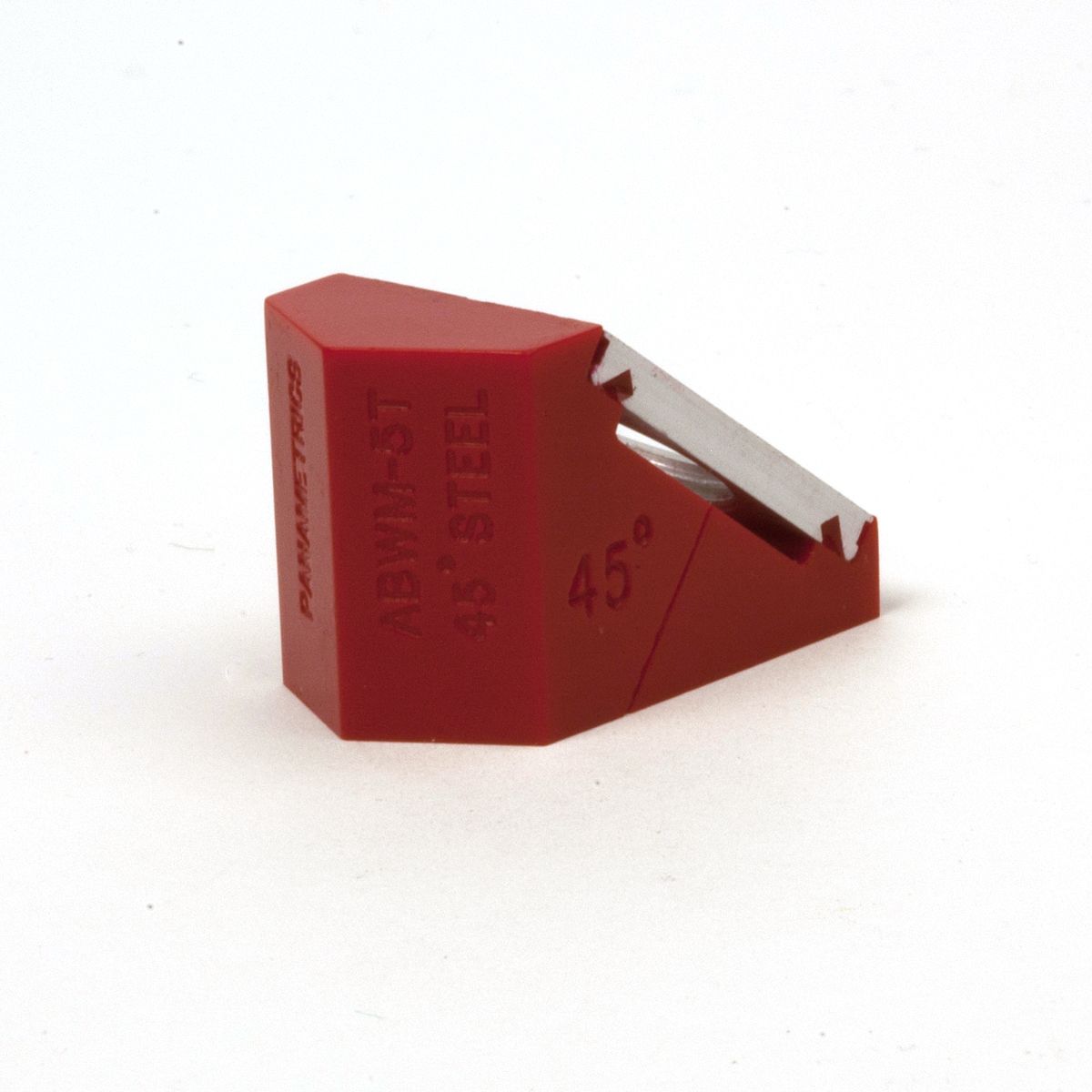

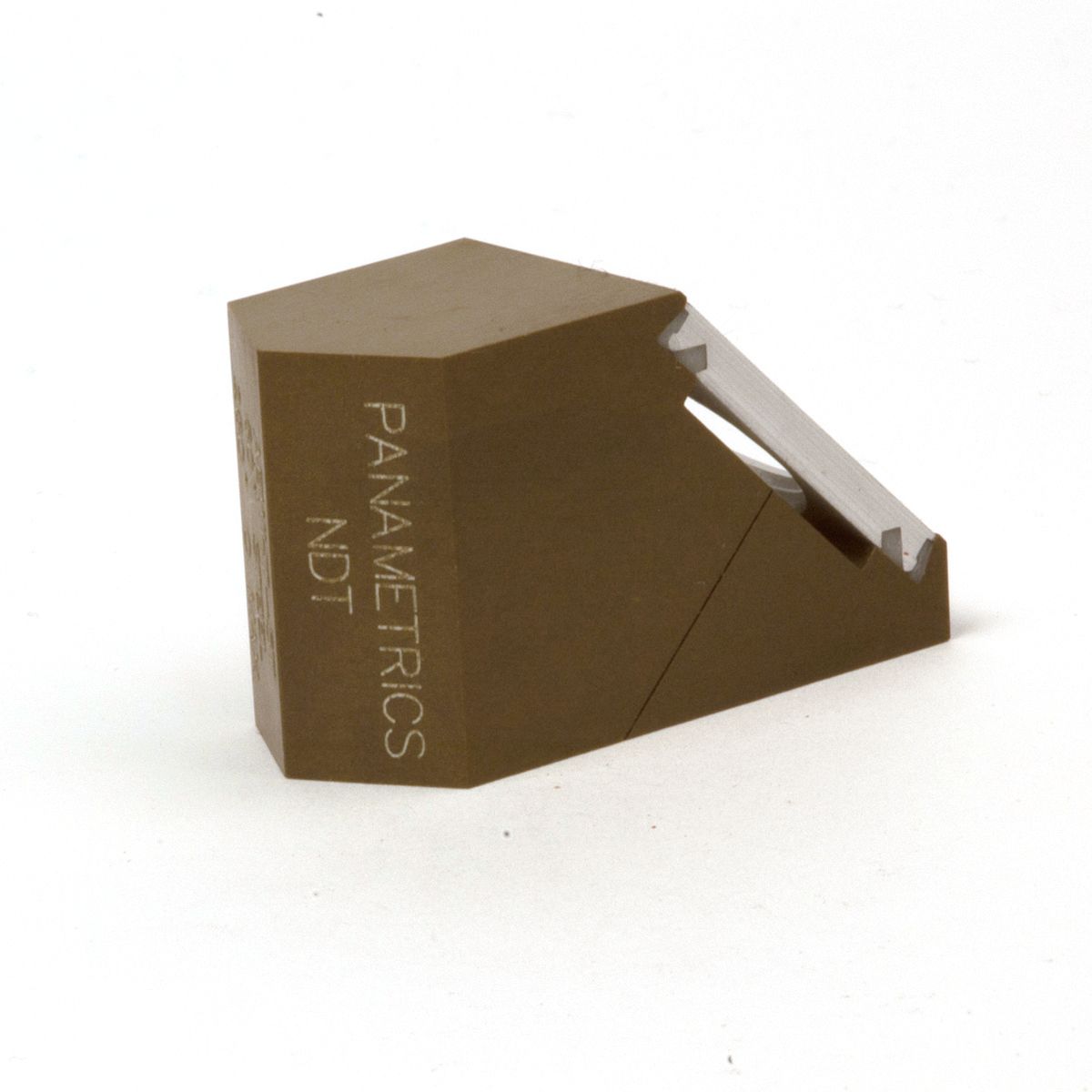

Accupath楔块 & 短接近楔块

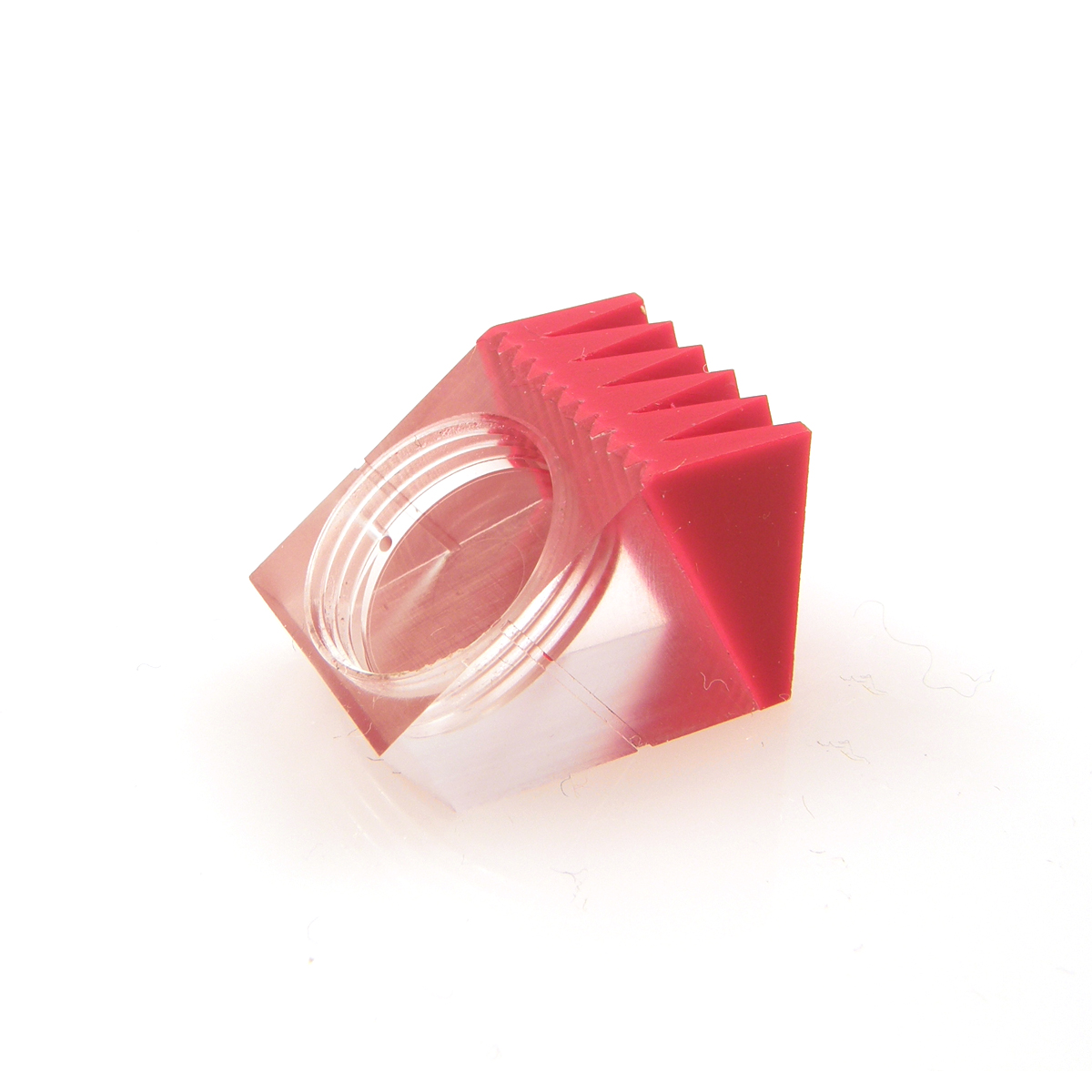

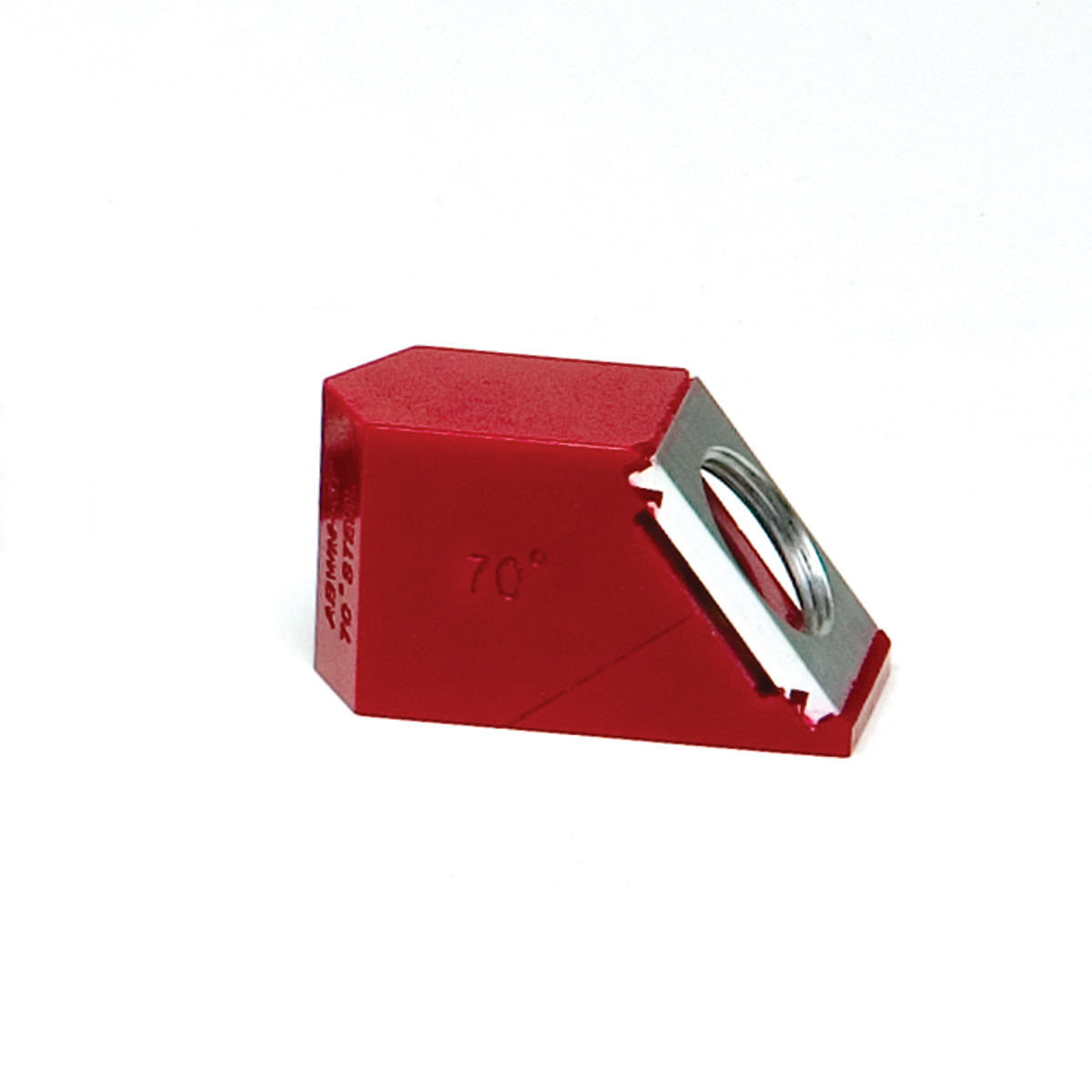

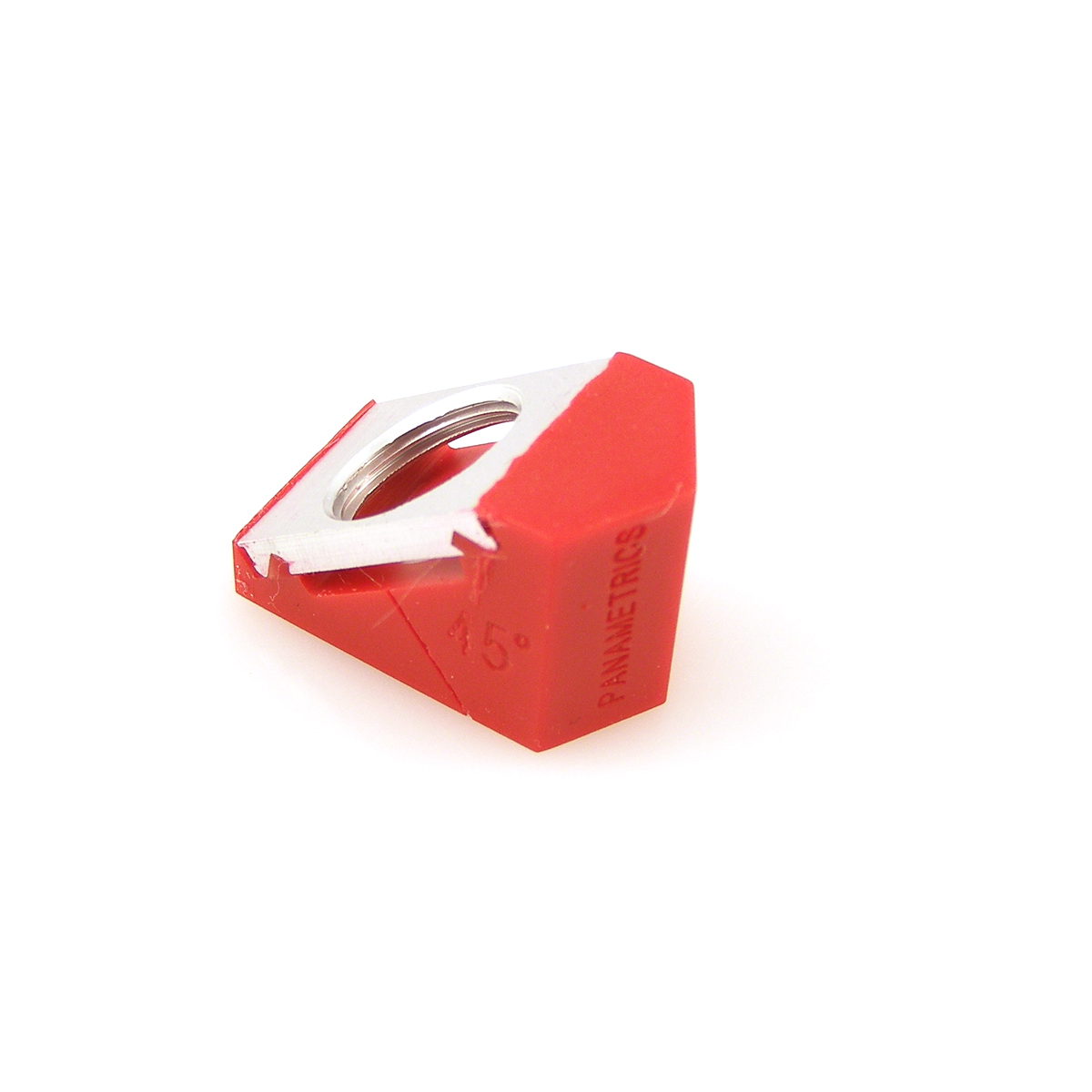

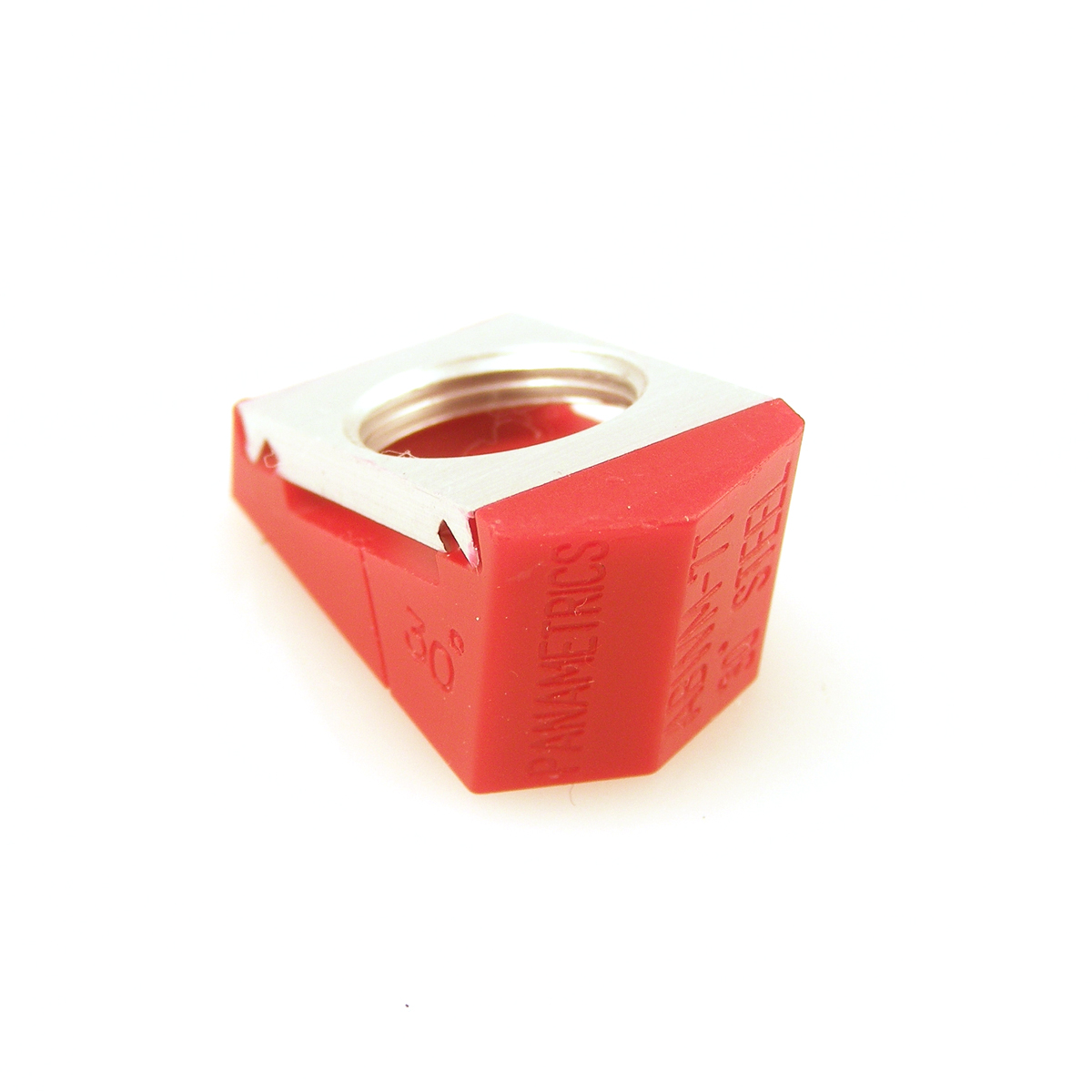

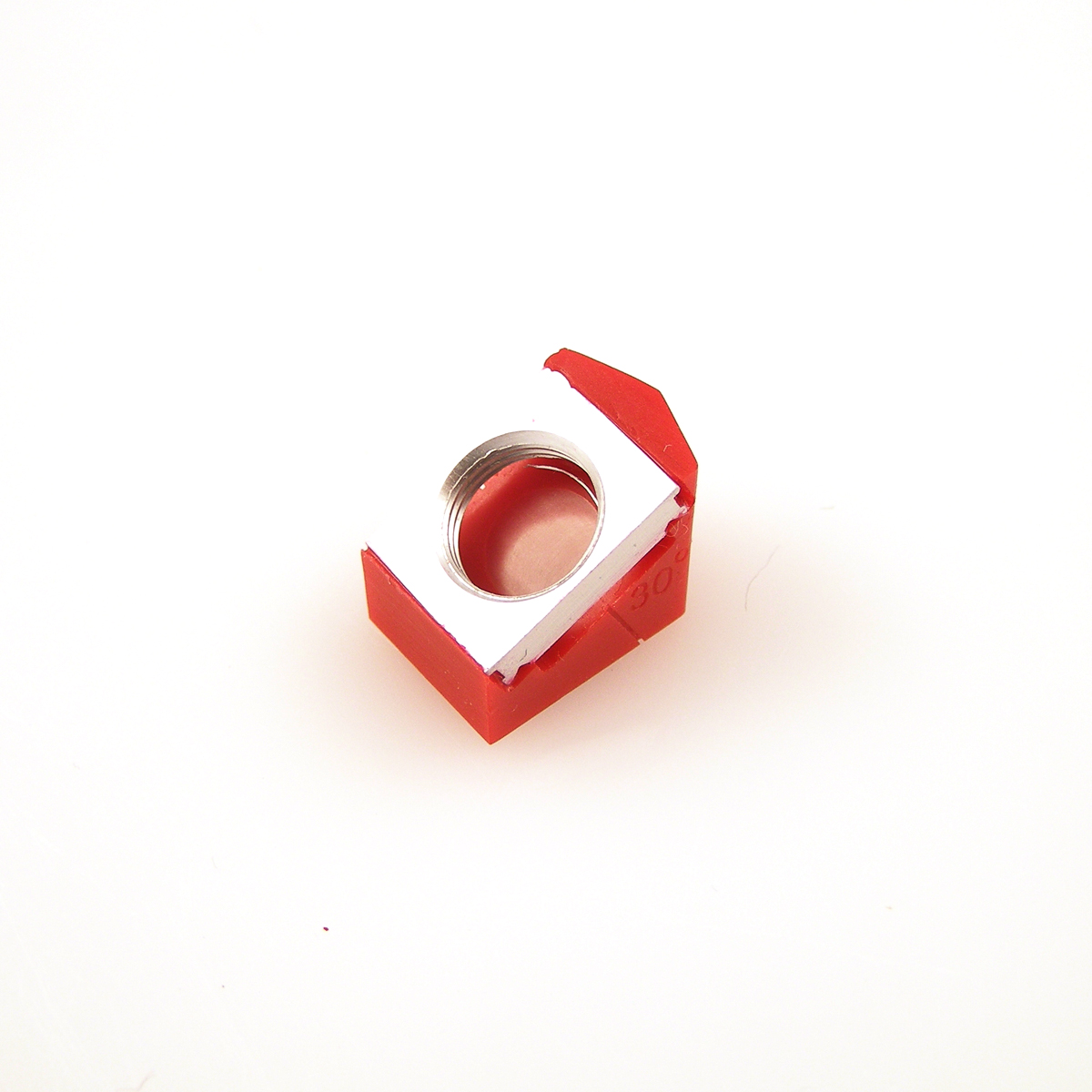

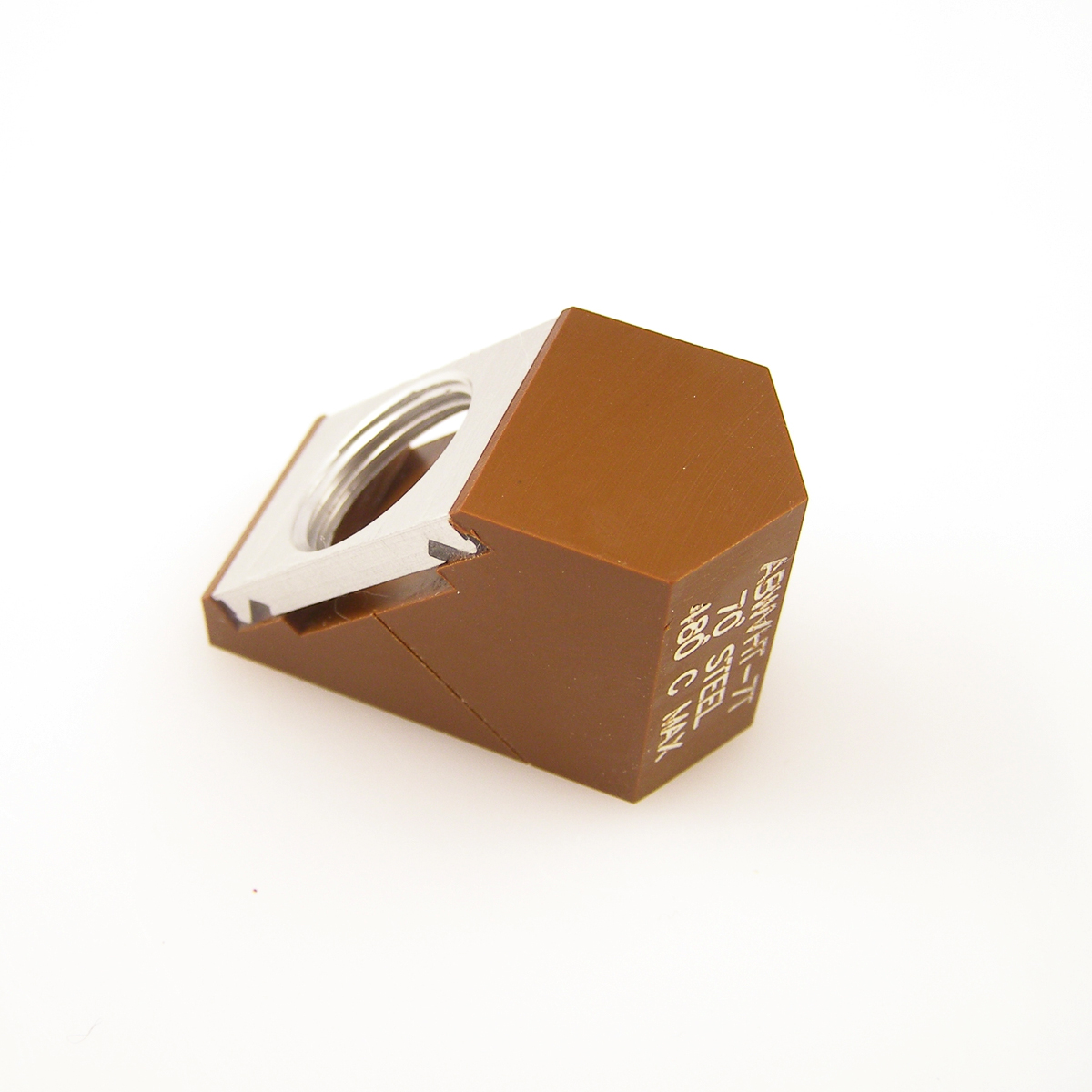

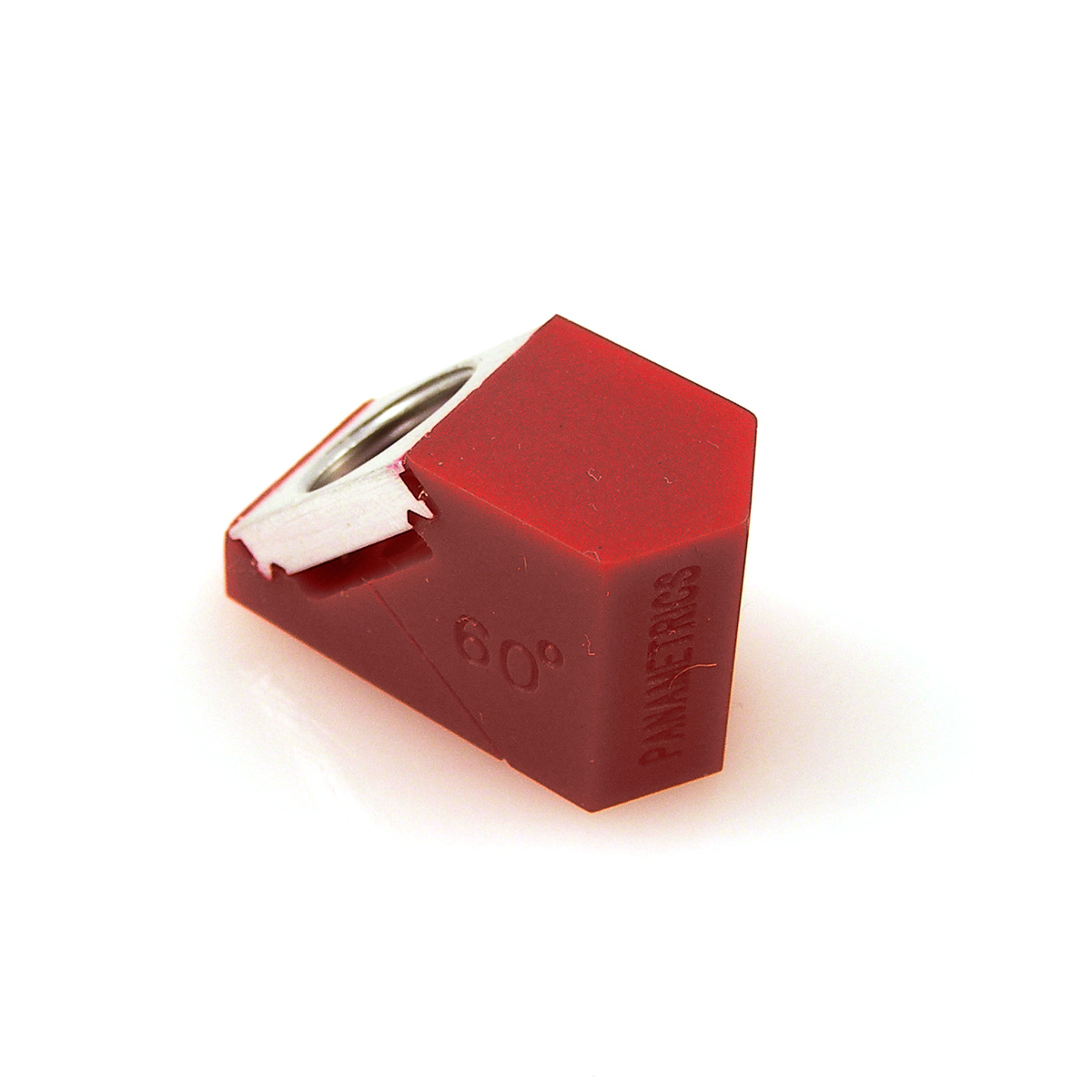

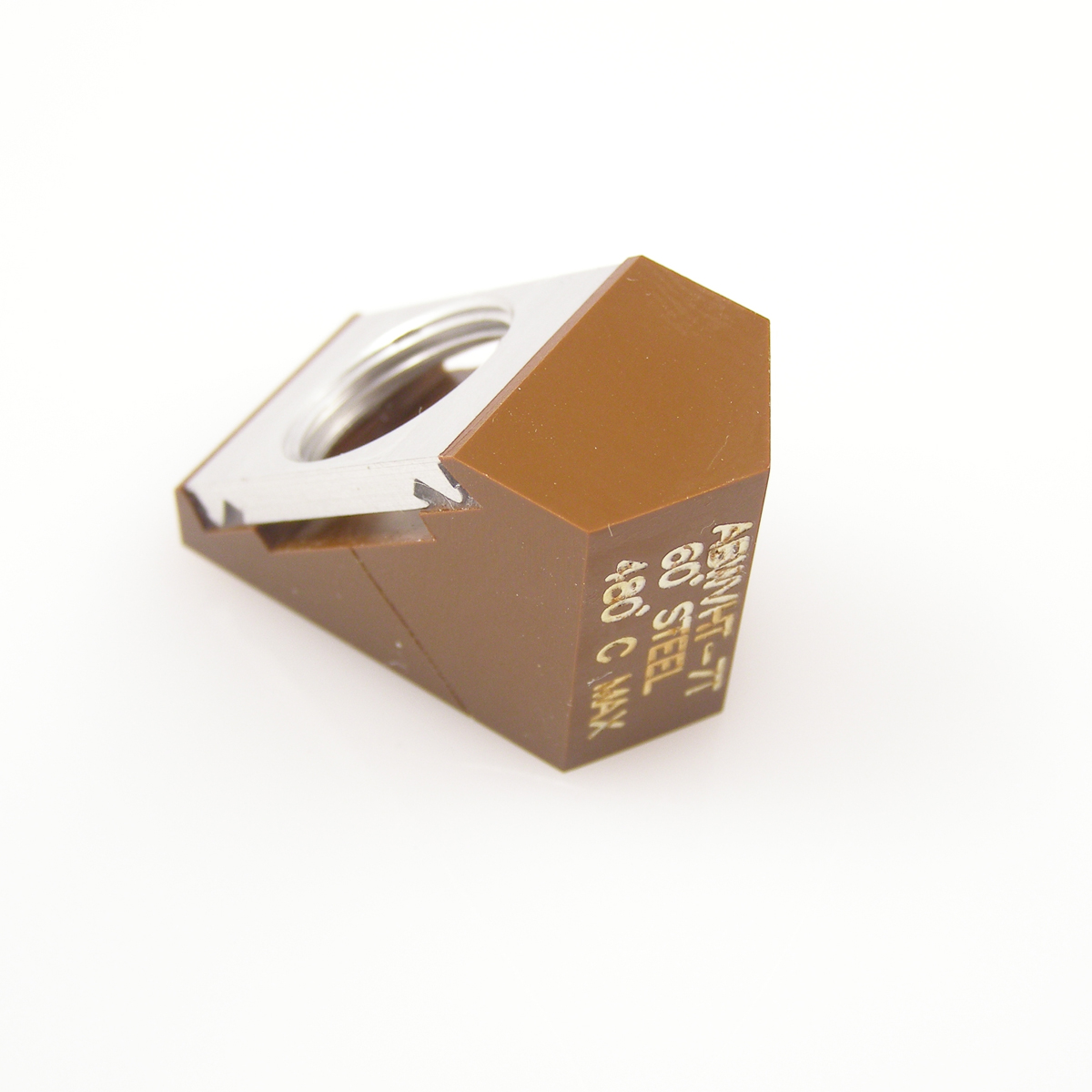

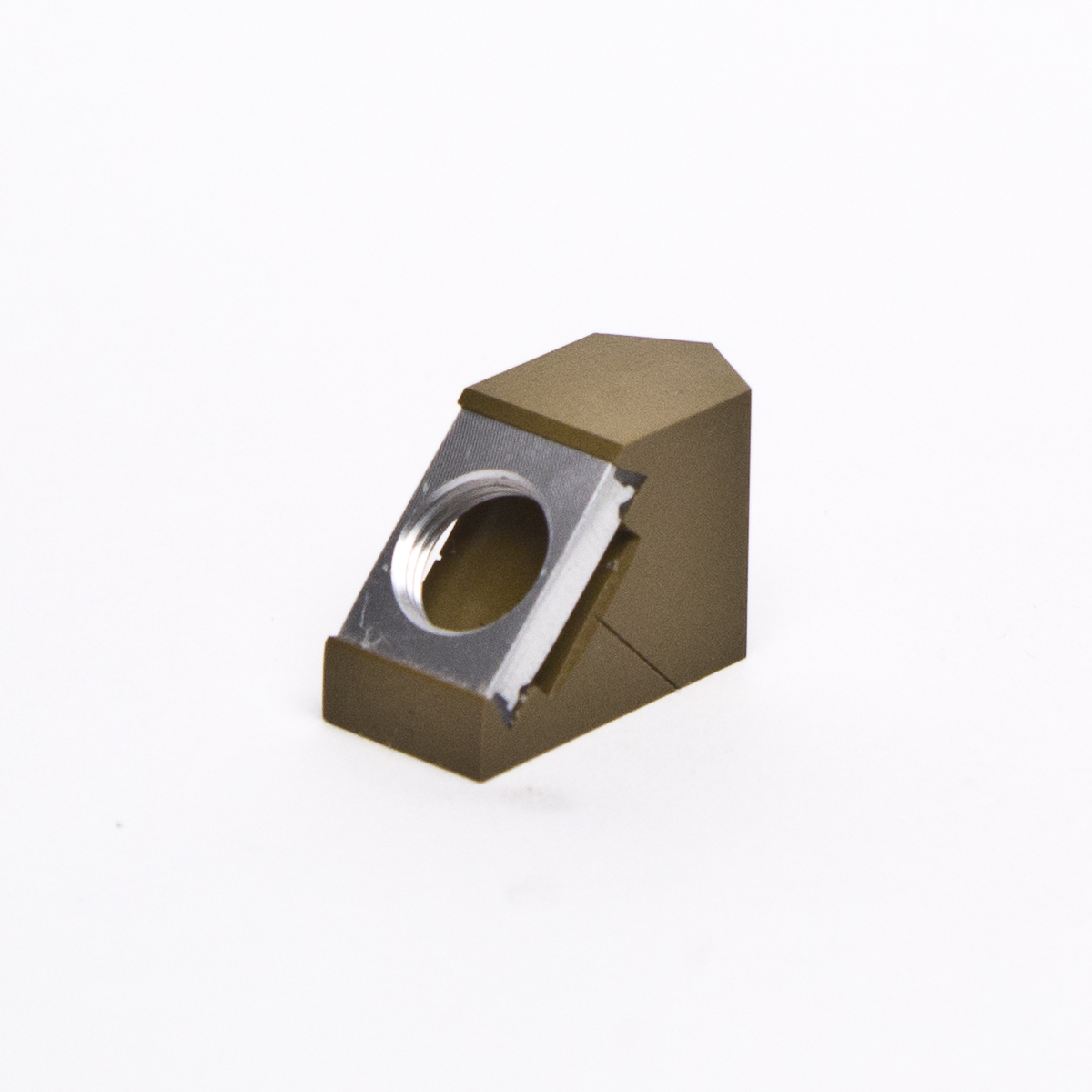

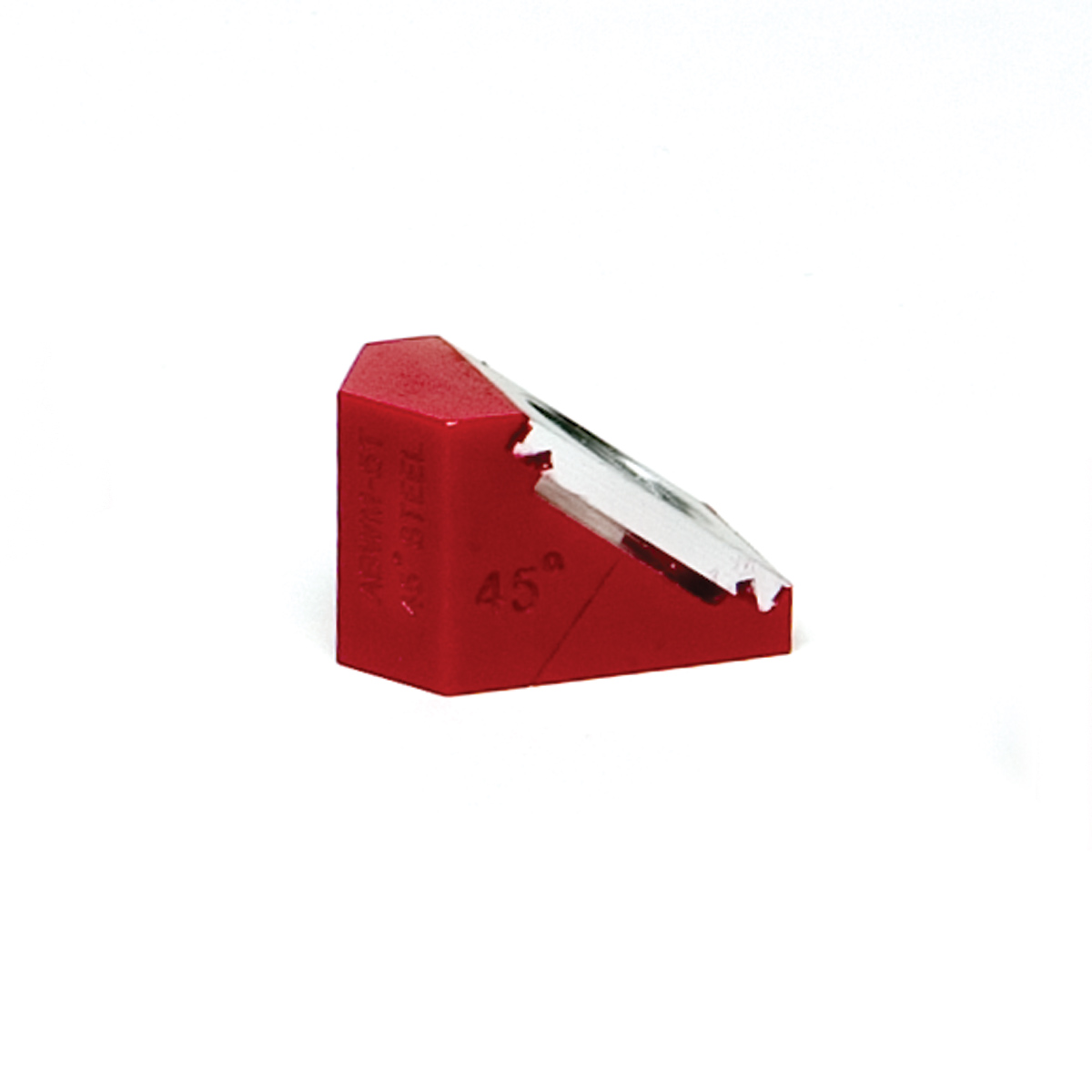

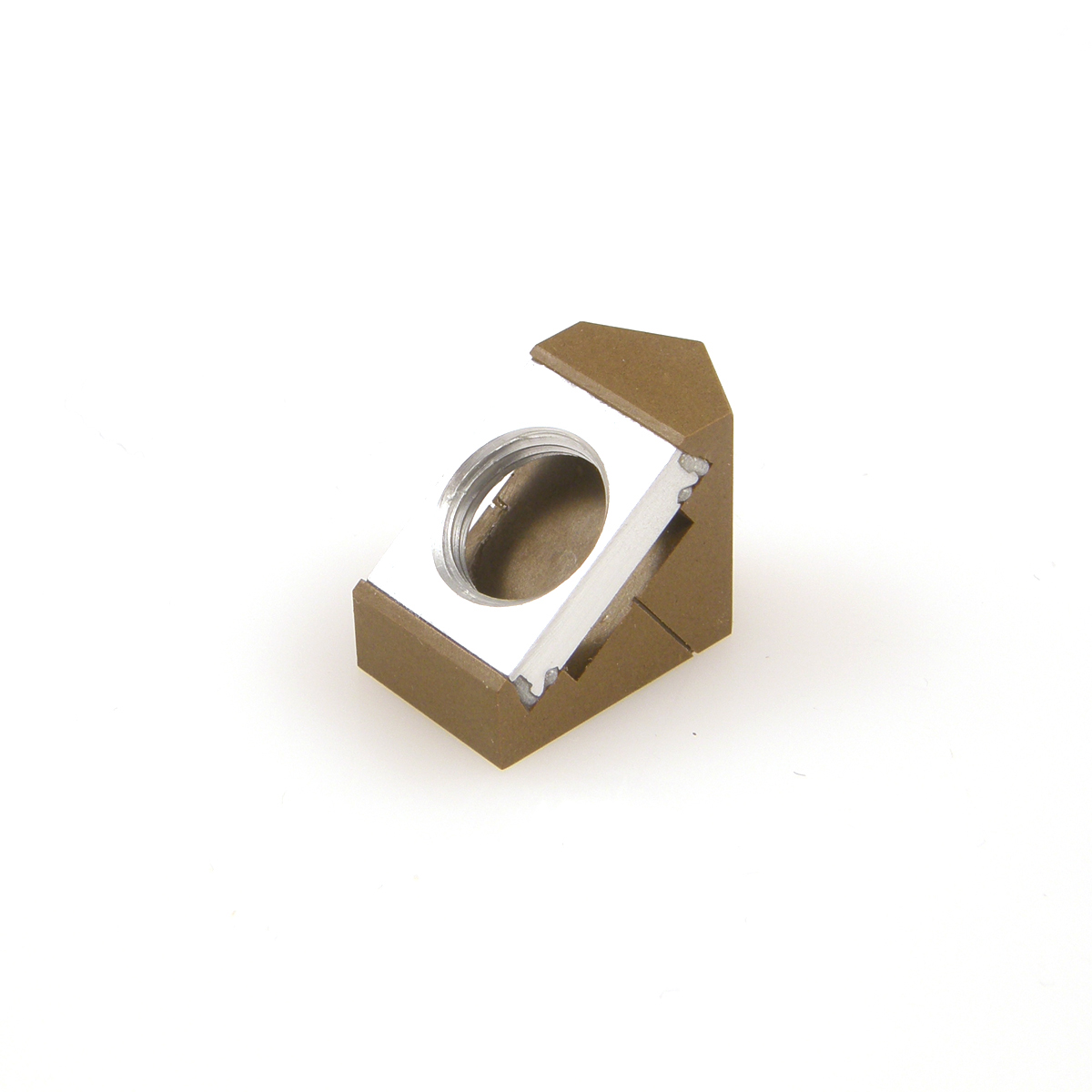

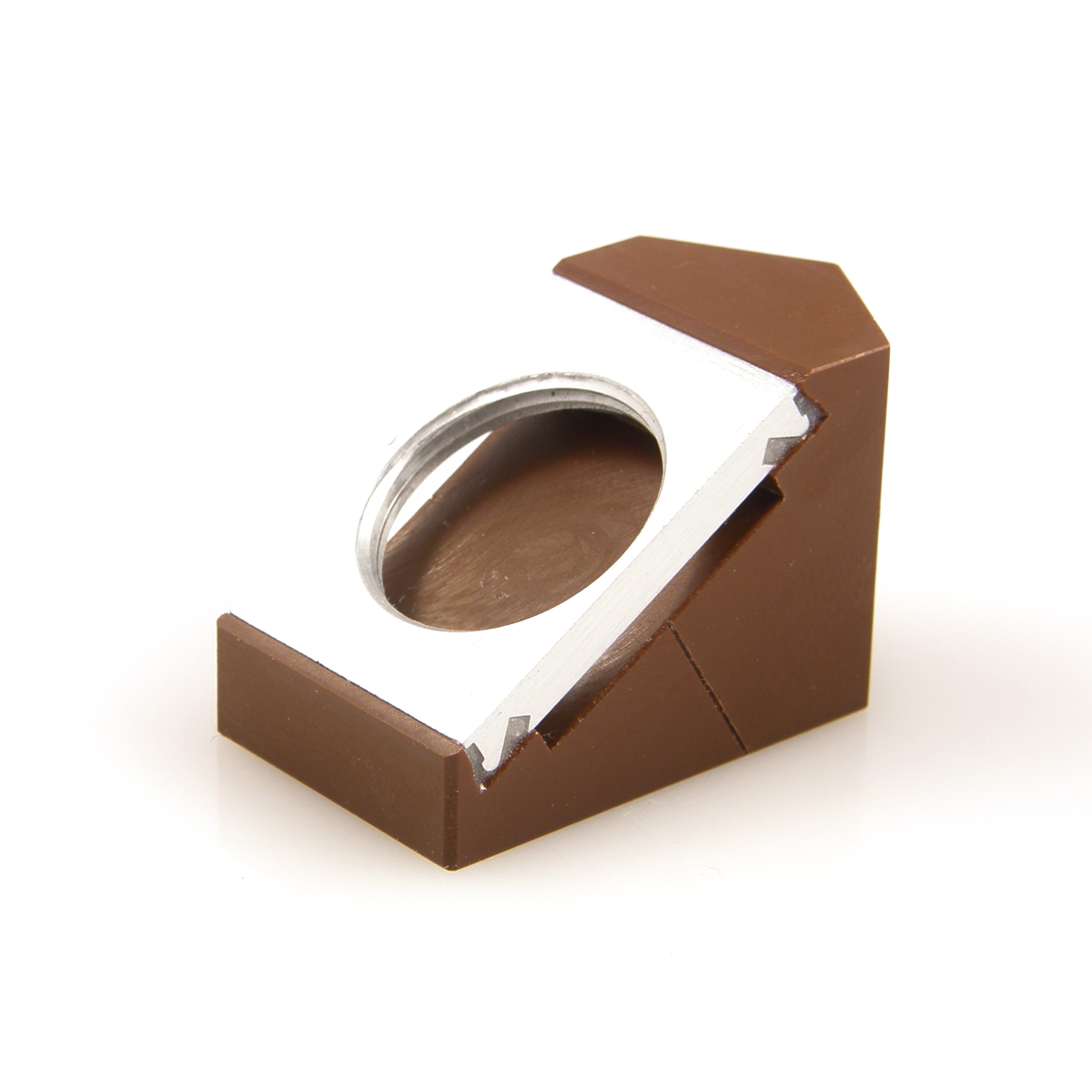

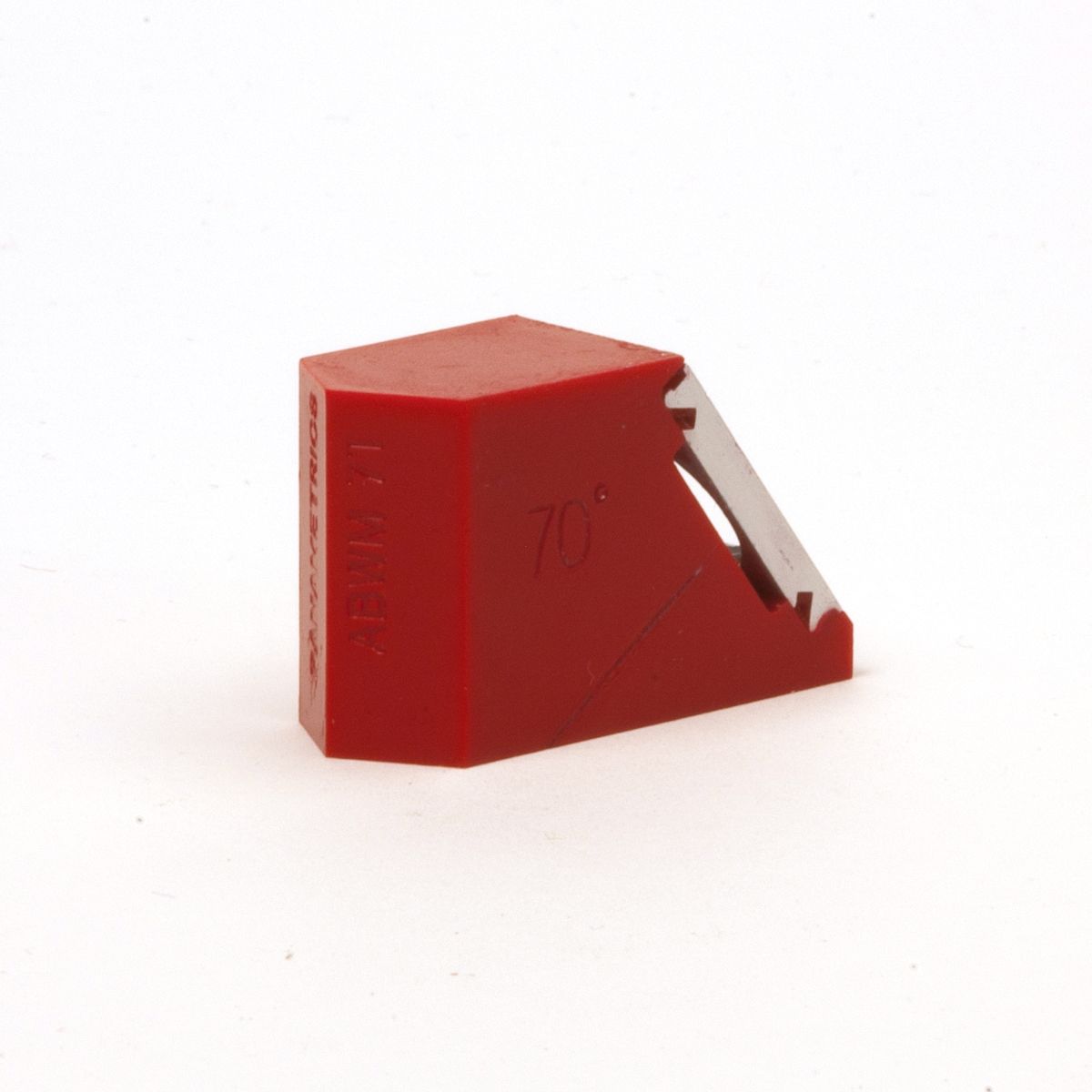

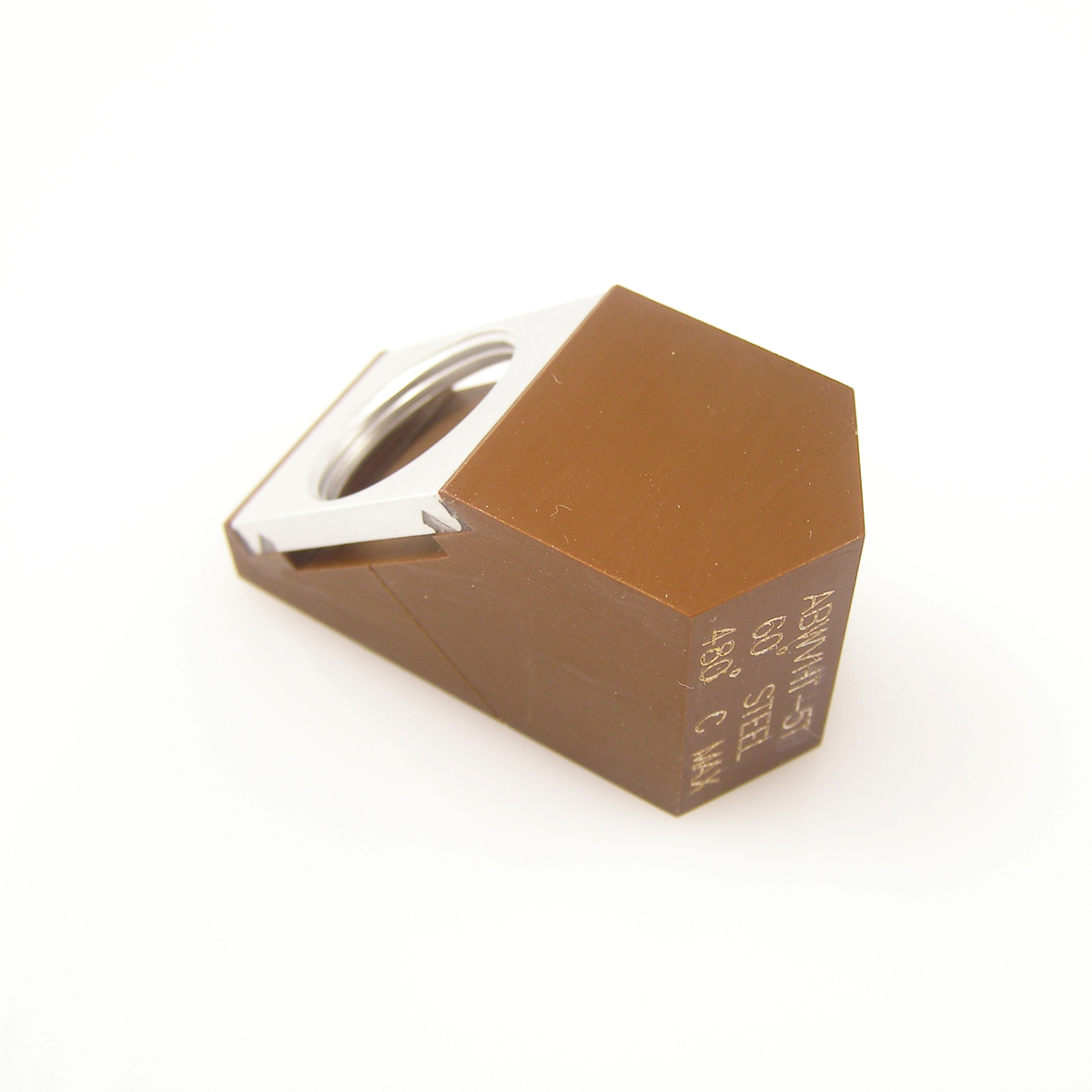

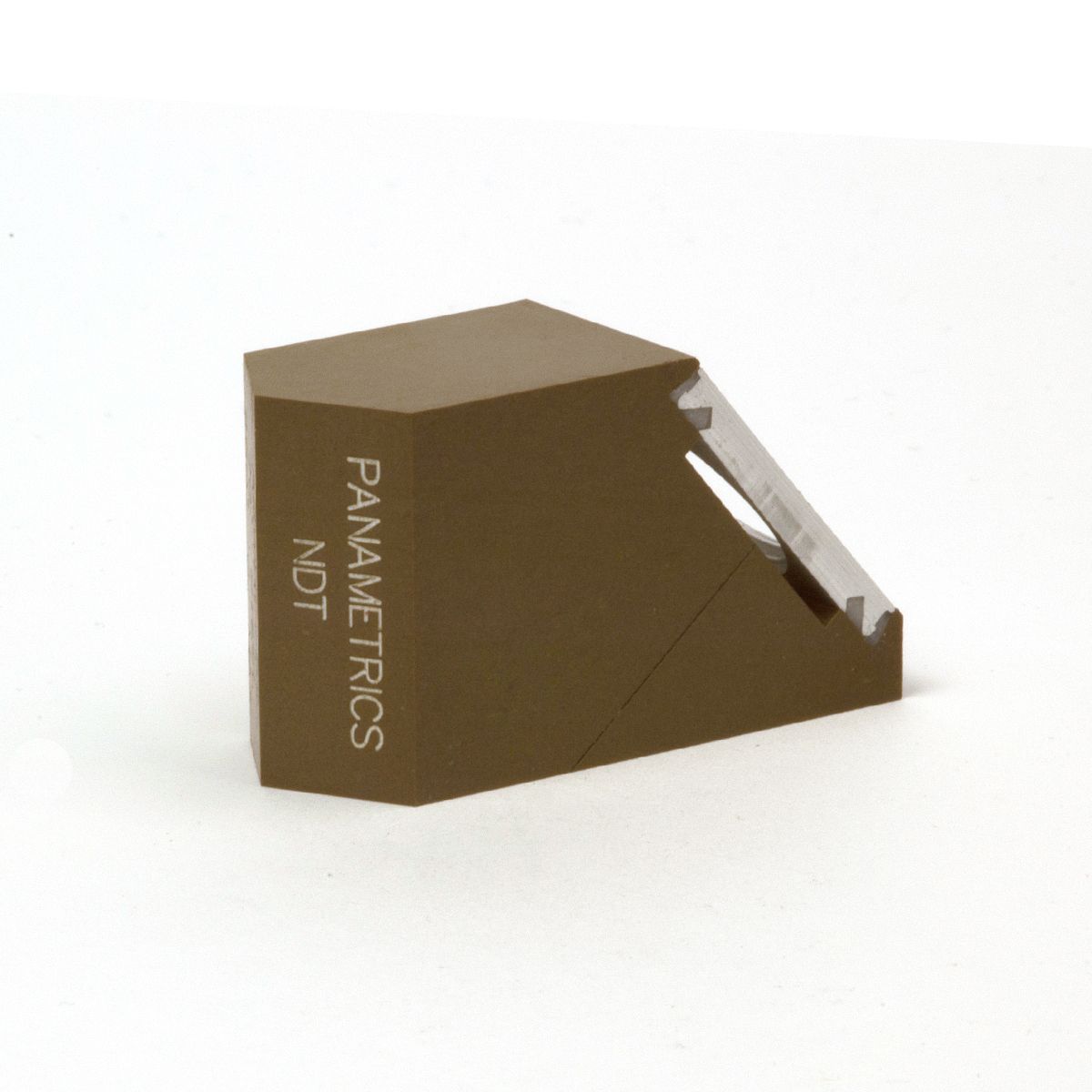

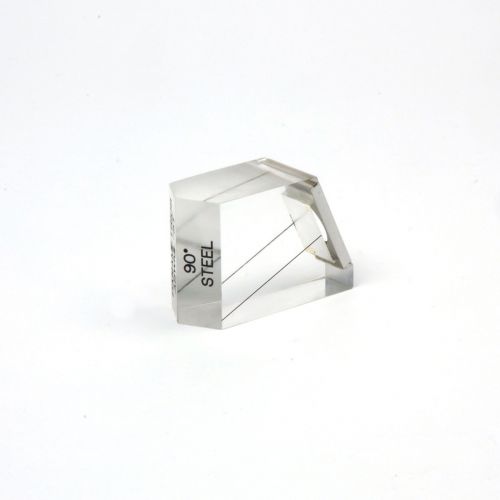

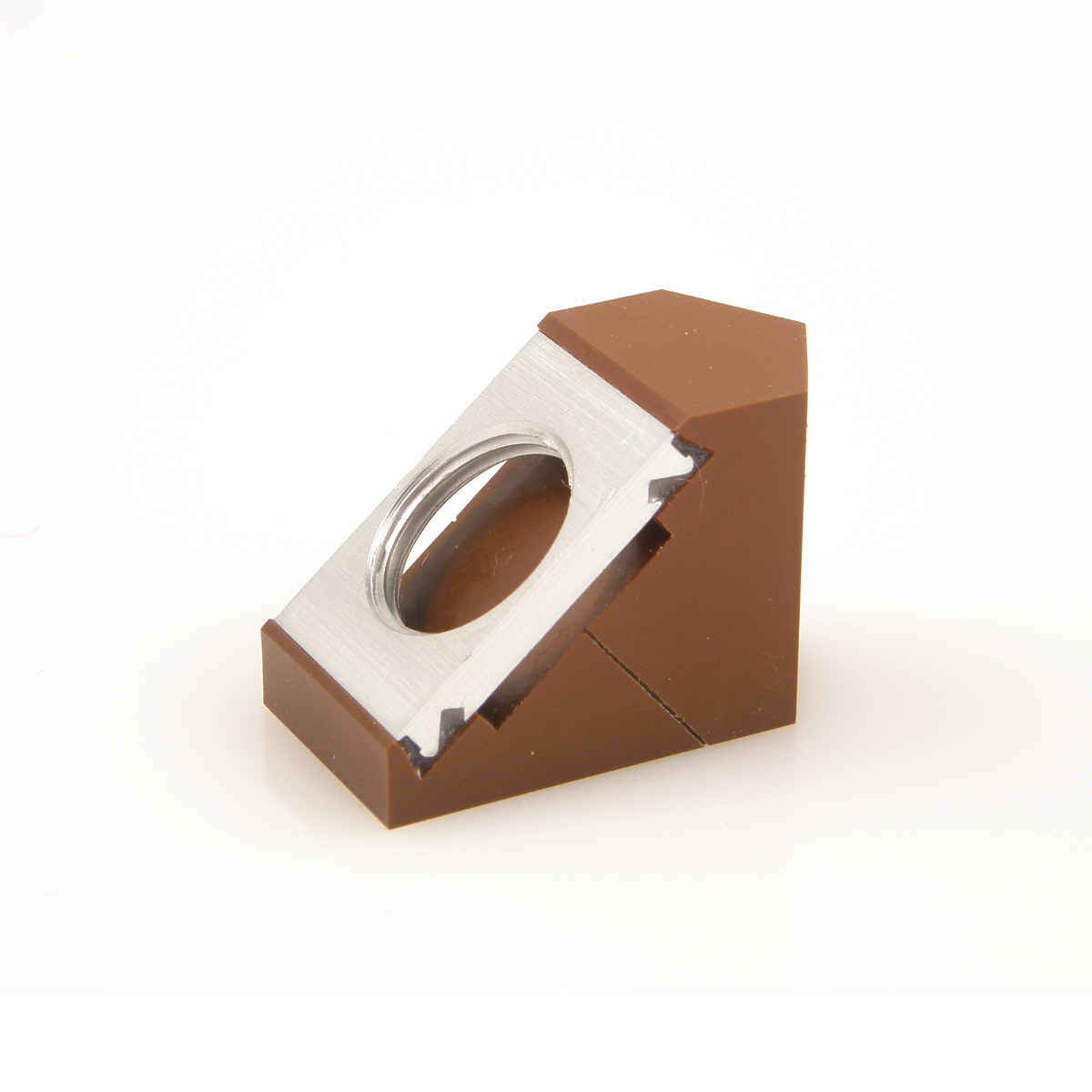

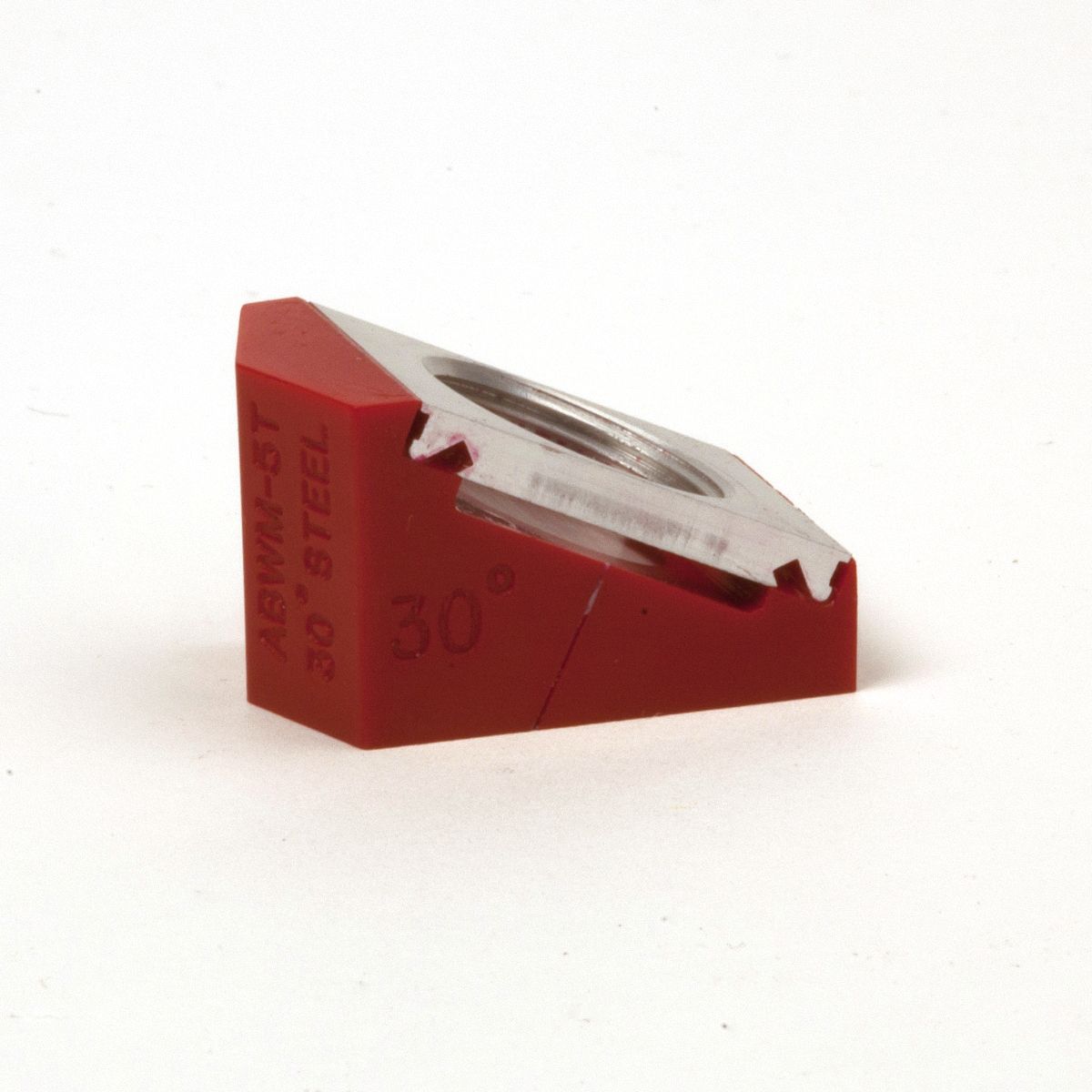

Suelas (zapatas) Accupath
|  |
| Dimensiones de la suela (zapata) de onda superficial y Accupath* (roscas miniatura) | |||||||||||||||
| Se adapta al tamaño nominal del elemento (en pulgadas) | |||||||||||||||
| 0,5 | 0,375 | 0,25 | |||||||||||||
| (A) | (B) | (C) | (D) | (A) | (B) | (C) | (D) | (A) | (B) | (C) | (D) | ||||
| 30° | 0,72 | 1,22 | 0,77 | 0,54 | 0,62 | 1,03 | 1,03 | 0,42 | 0,49 | 0,66 | 0,45 | 0,23 | |||
| 45° | 0,70 | 1,03 | 0,73 | 0,38 | 0,60 | 0,85 | 0,61 | 0,32 | 0,43 | 0,61 | 0,43 | 0,235 | |||
| 60° | 0,74 | 1,19 | 0,73 | 0,45 | 0,67 | 1,00 | 0,61 | 0,367 | 0,48 | 0,71 | 0,43 | 0,268 | |||
| 70° | 0,79 | 1,34 | 0,73 | 0,50 | 0,69 | 1,12 | 0,61 | 0,406 | 0,50 | 0,81 | 0,43 | 0,305 | |||
| 90° | 1,25 | 1,84 | 0,77 | - | 1,00 | 1,48 | 1,48 | - | 0,83 | 1,13 | 0,45 | - | |||
Suelas (zapatas) con roscas miniatura para sondas de 10 MHz
| Dimensión del elemento nominal | N.º de pieza de la suela (zapata) | |||
| pulg. | mm | Accupath* | Onda superficial a 90° | |
| 0,50 | 13 | ABWM-5ST-X° | ABWML-5ST-90° | |
| 0,375 | 10 | ABWM-7ST-X° | ABWML-7ST-90° | |
| 0,25 | 6 | ABWM-4ST-X° | ABWML-4ST-90° | |
\*Las suelas (zapatas) Accupath están disponibles en ángulos estandarizados de onda transversal refractada de 30 °, 45 °, 60 ° y 70 °, en acero, a 10 MHz.

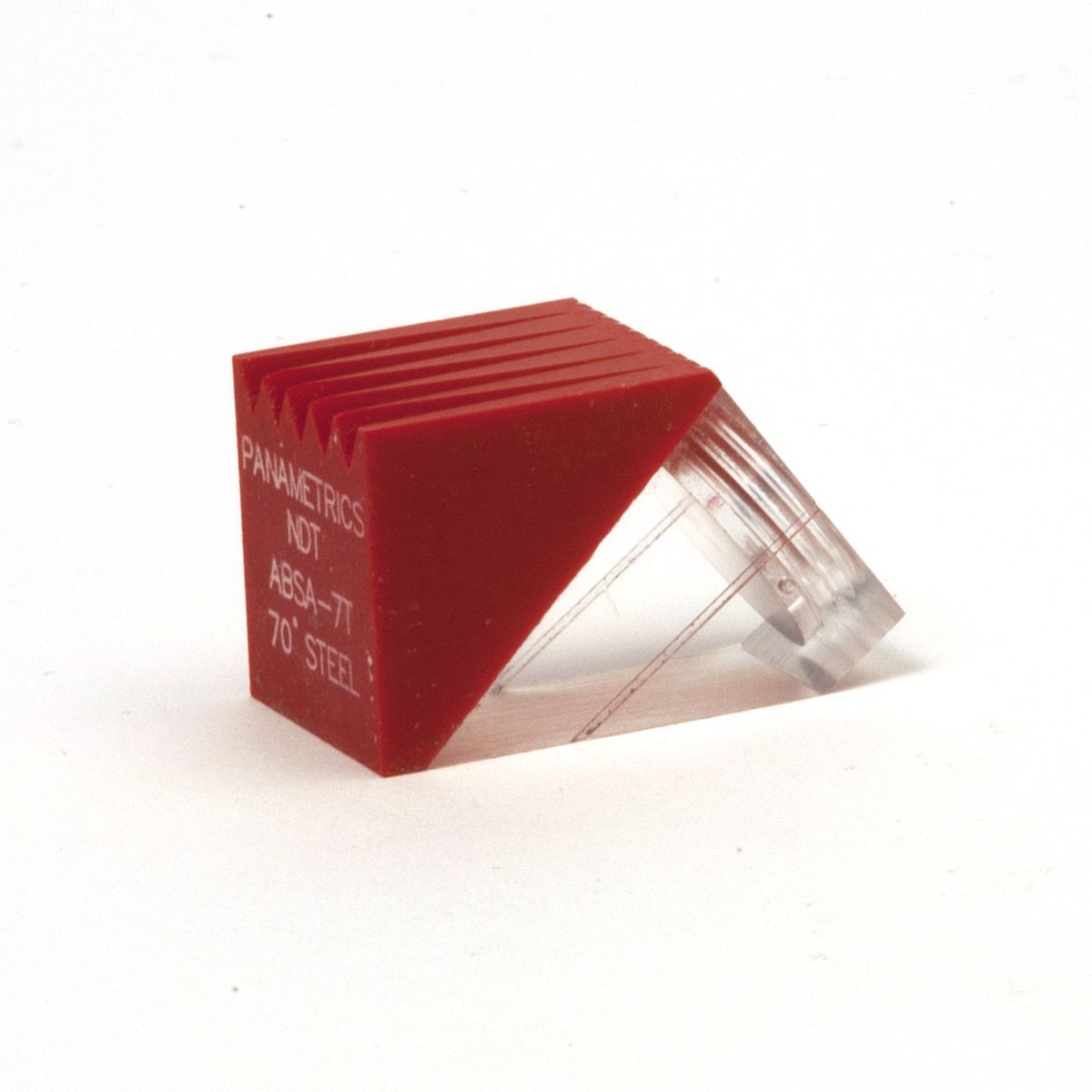

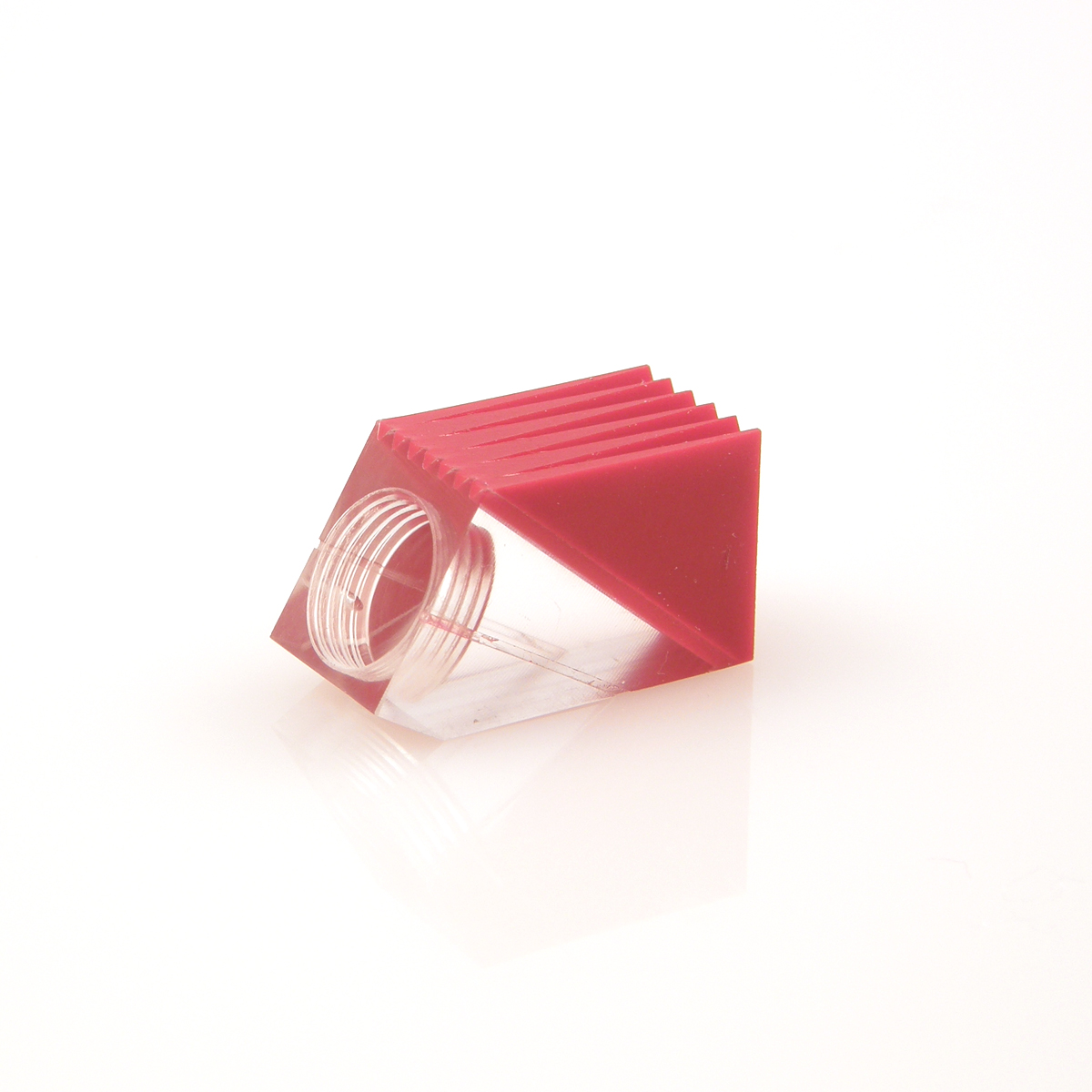

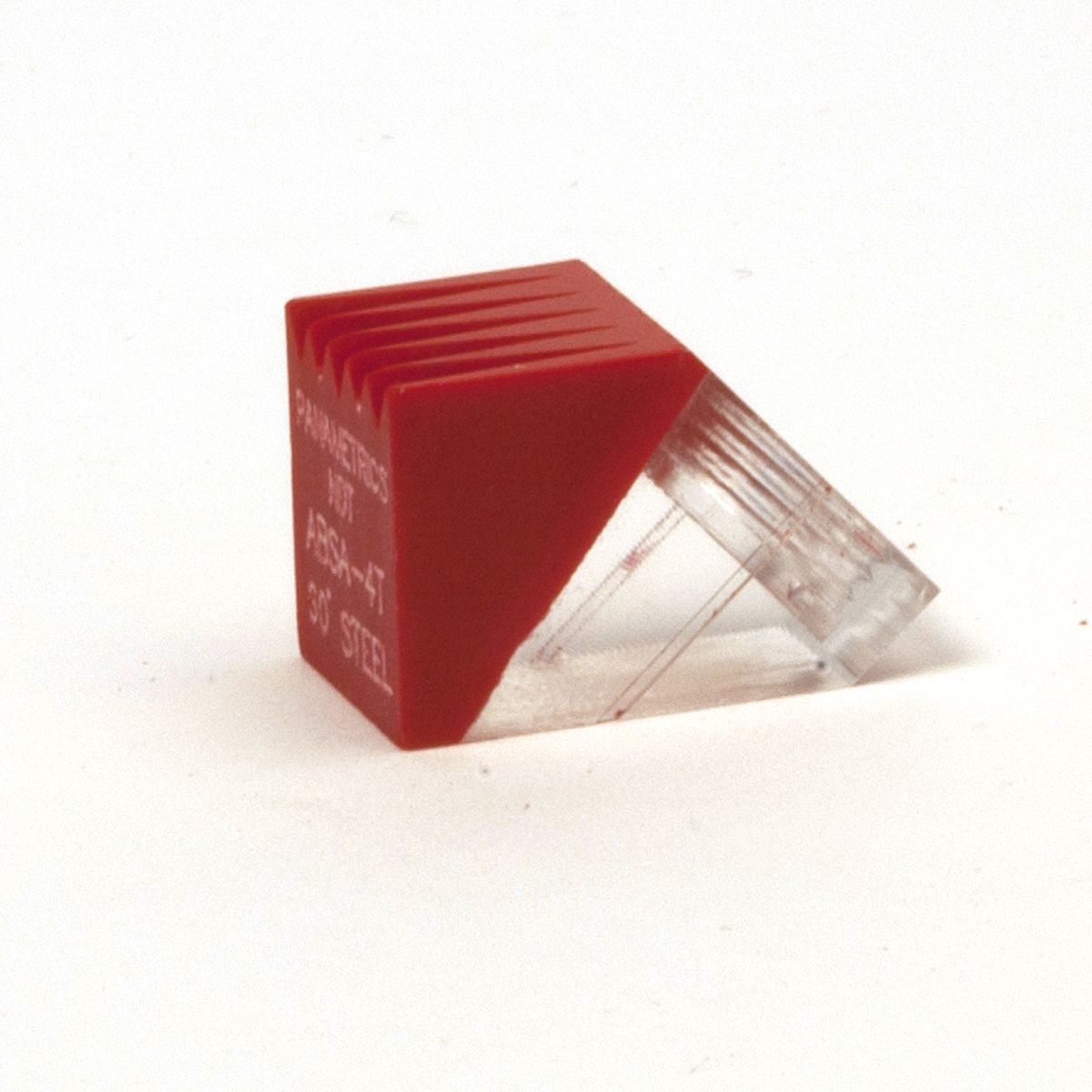

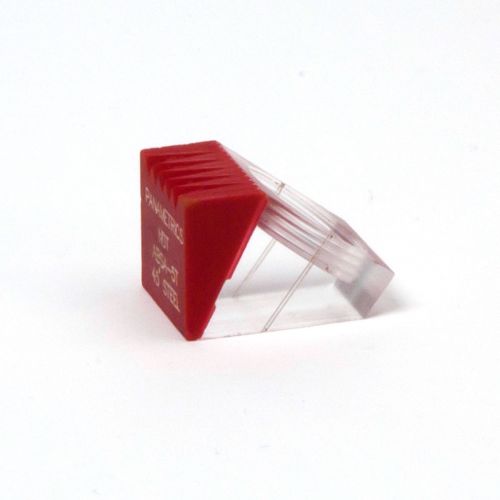

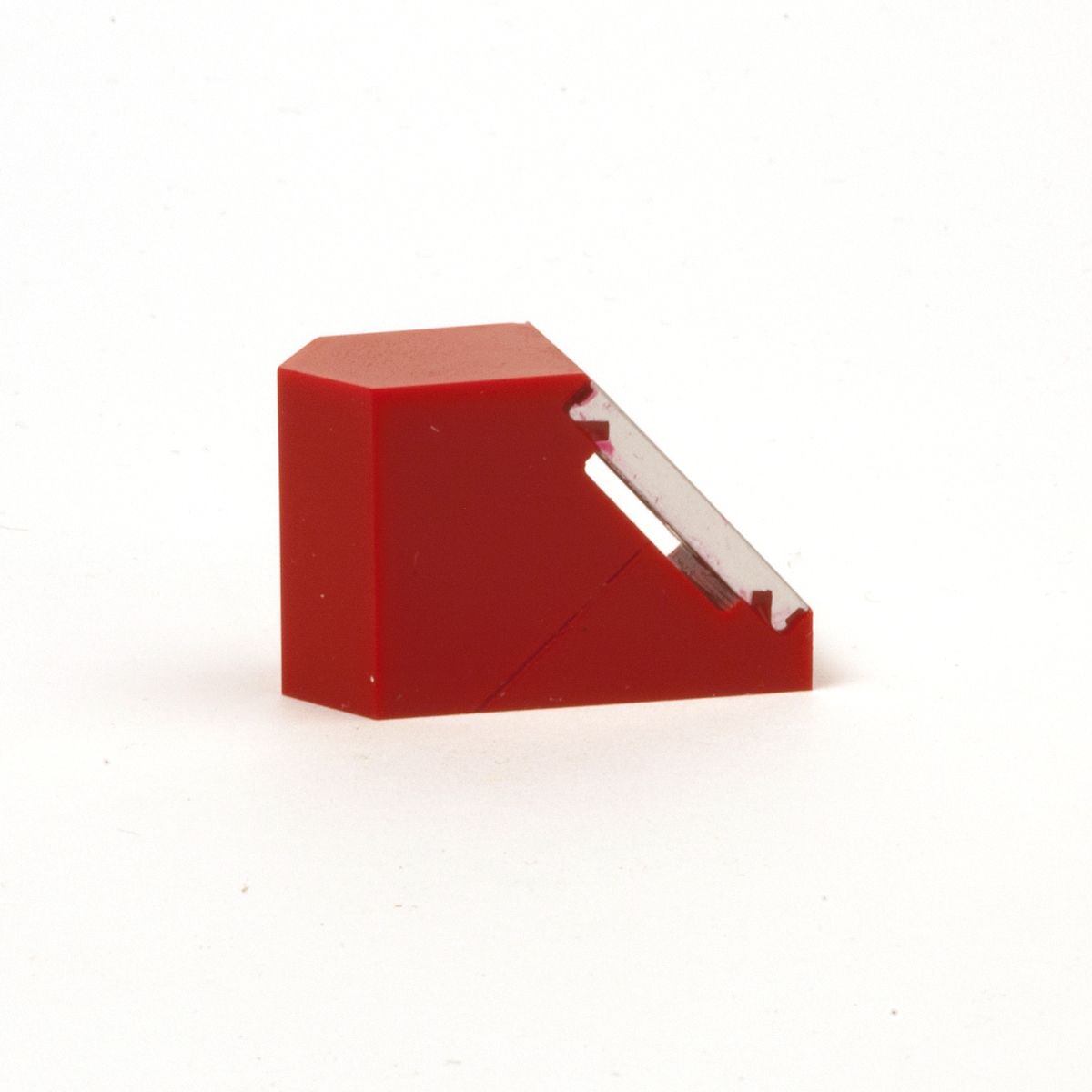

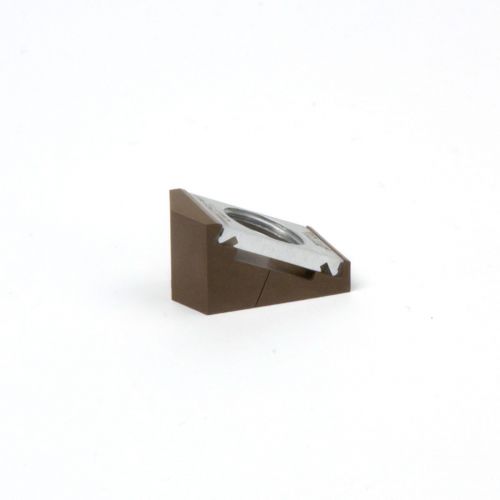

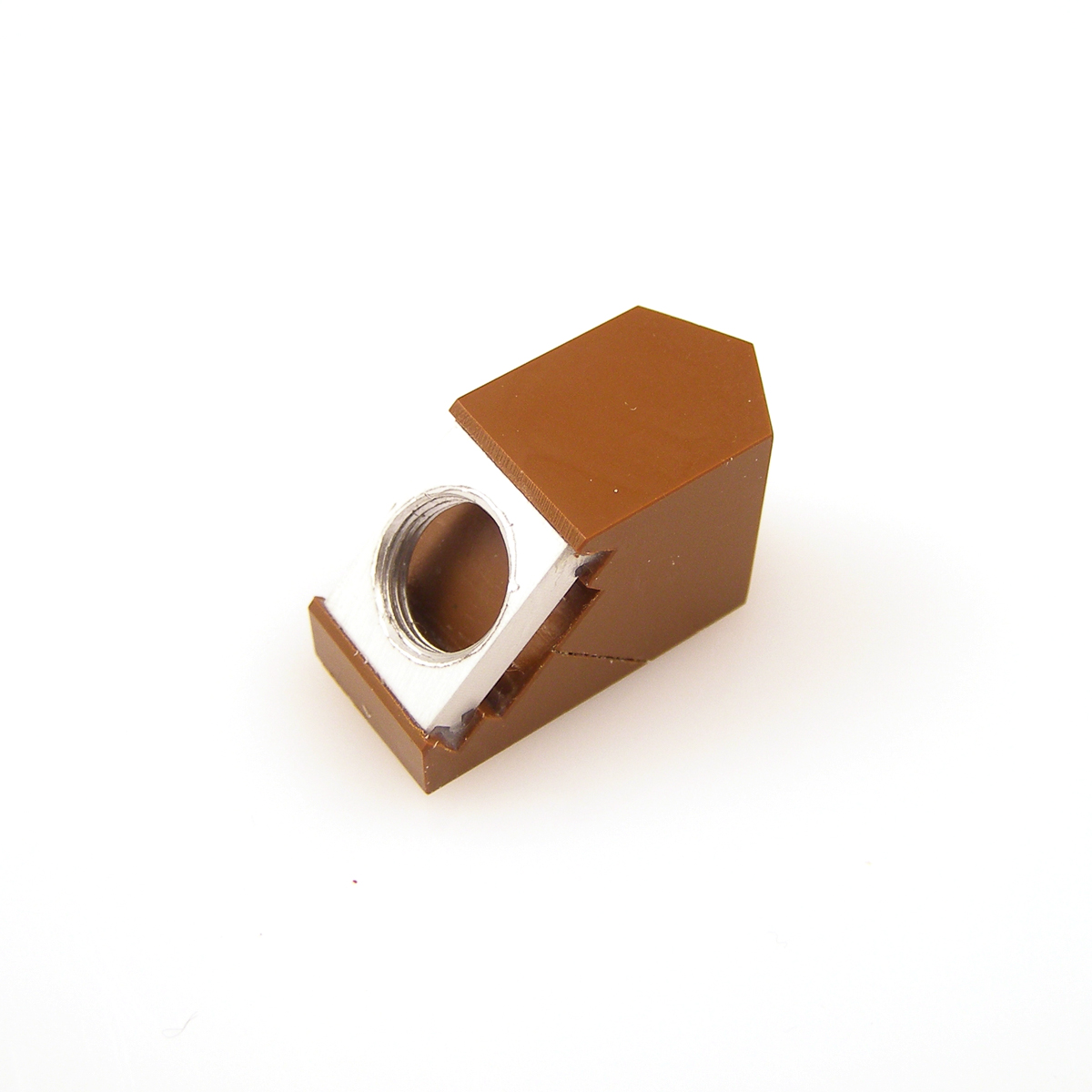

Suelas (zapatas) de corto alcance
|  |
| Dimensiones de la suela (zapata) de corto alcance (roscas miniatura) | |||||||||||||
| Se adapta al tamaño nominal del elemento (en pulgadas) | |||||||||||||
| 0,5 | 0,375 | 0,25 | |||||||||||
| (A) | (B) | (C) | (D) | (A) | (B) | (C) | (D) | (A) | (B) | (C) | (D) | ||
| 45° | 0,70 | 1,03 | 0,73 | 0,38 | 0,60 | 0,85 | 0,61 | 0,32 | 0,43 | 0,61 | 0,43 | 0,235 | |
| 60° | 0,74 | 1,19 | 0,73 | 0,45 | 0,67 | 1,00 | 0,61 | 0,367 | 0,48 | 0,71 | 0,43 | 0,268 | |
| 70° | 0,79 | 1,34 | 0,73 | 0,50 | 0,69 | 1,12 | 0,61 | 0,406 | 0,50 | 0,81 | 0,43 | 0,305 | |
楔块配置器
Configurador de sondas (transductores)

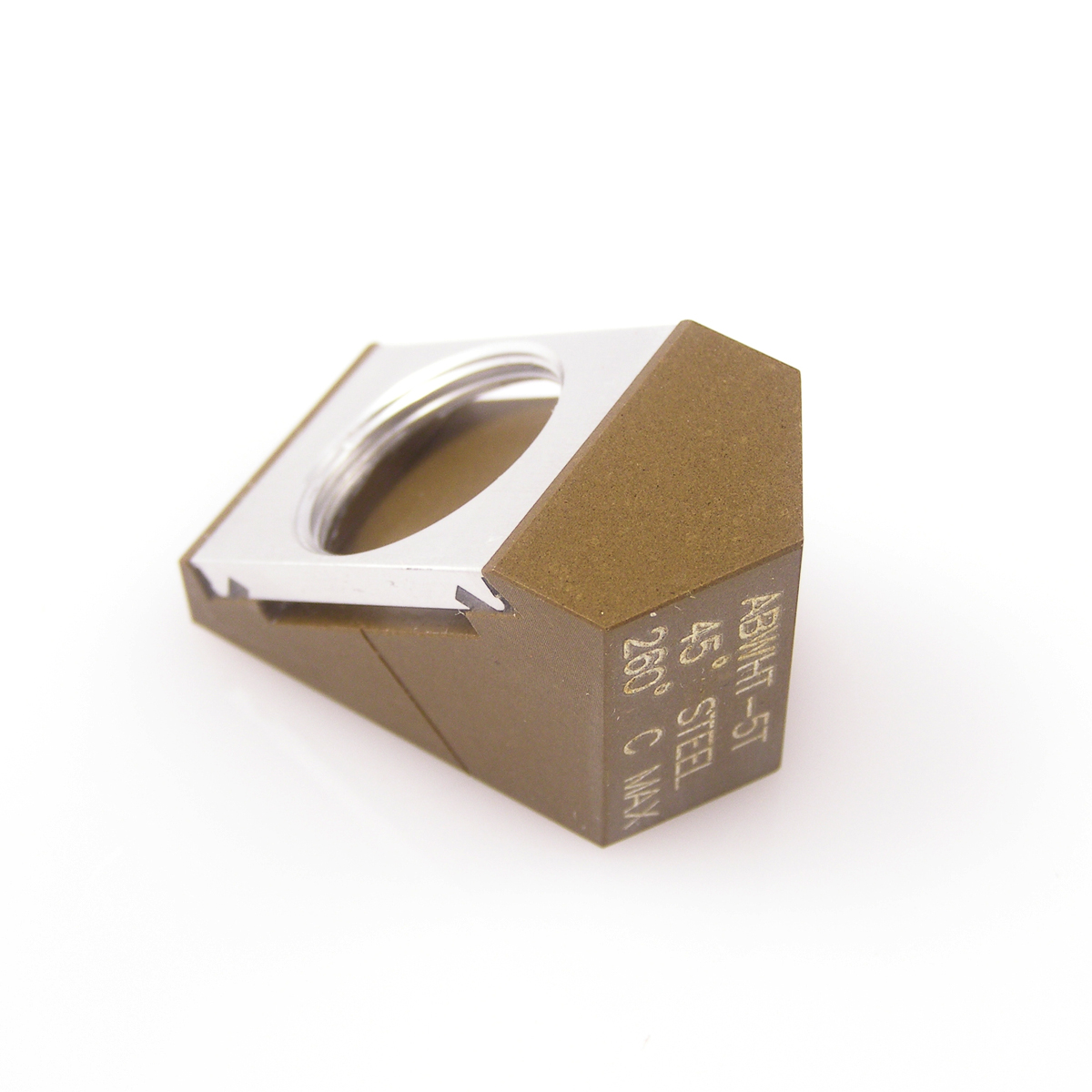

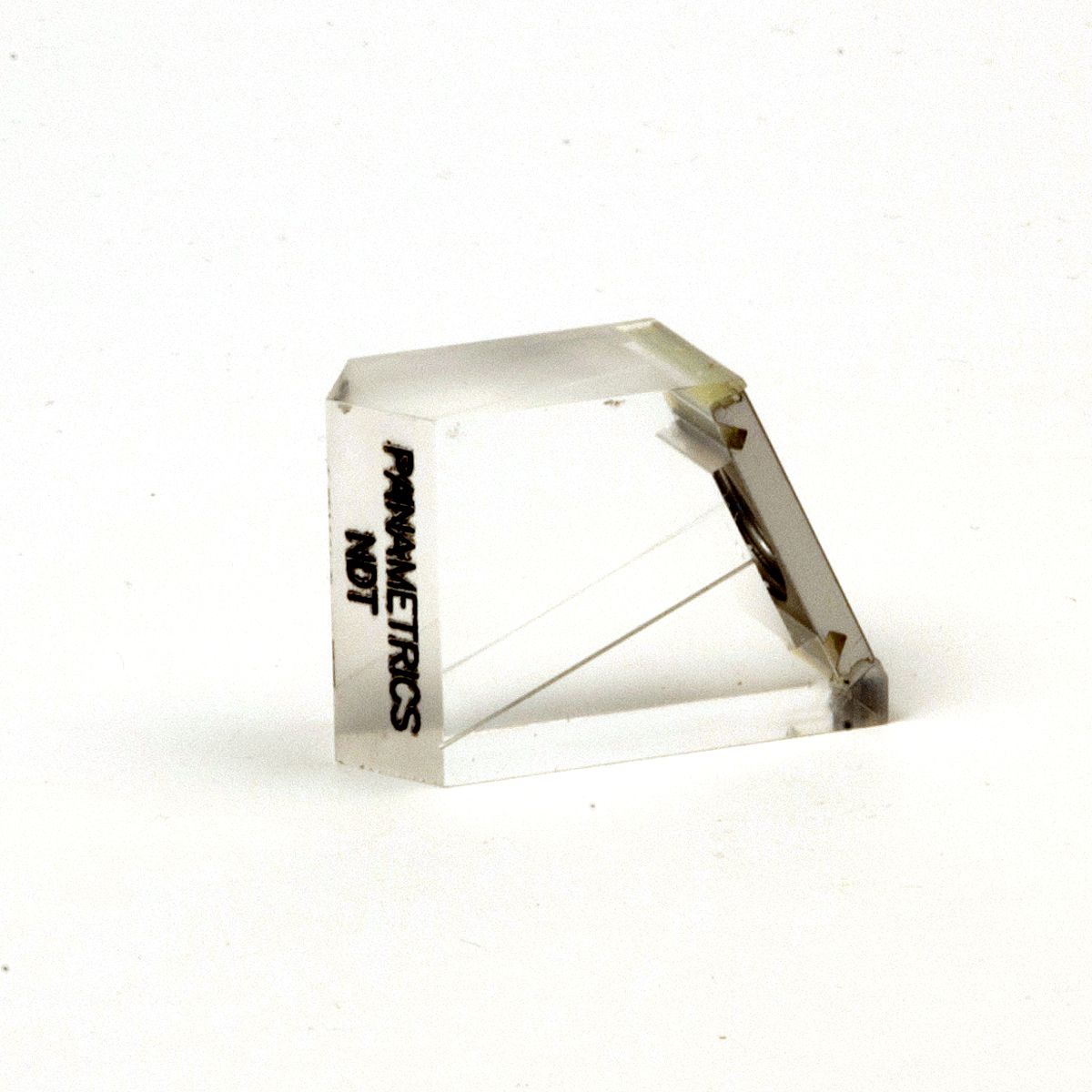

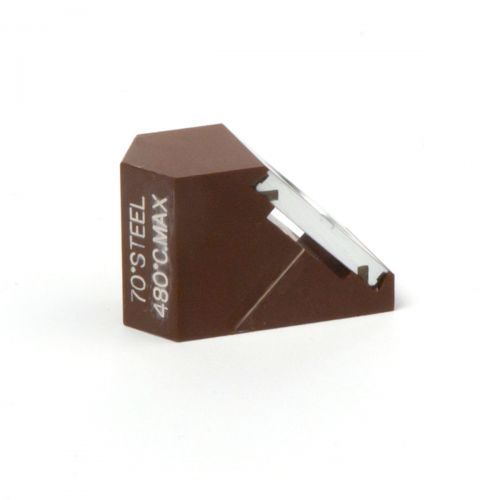

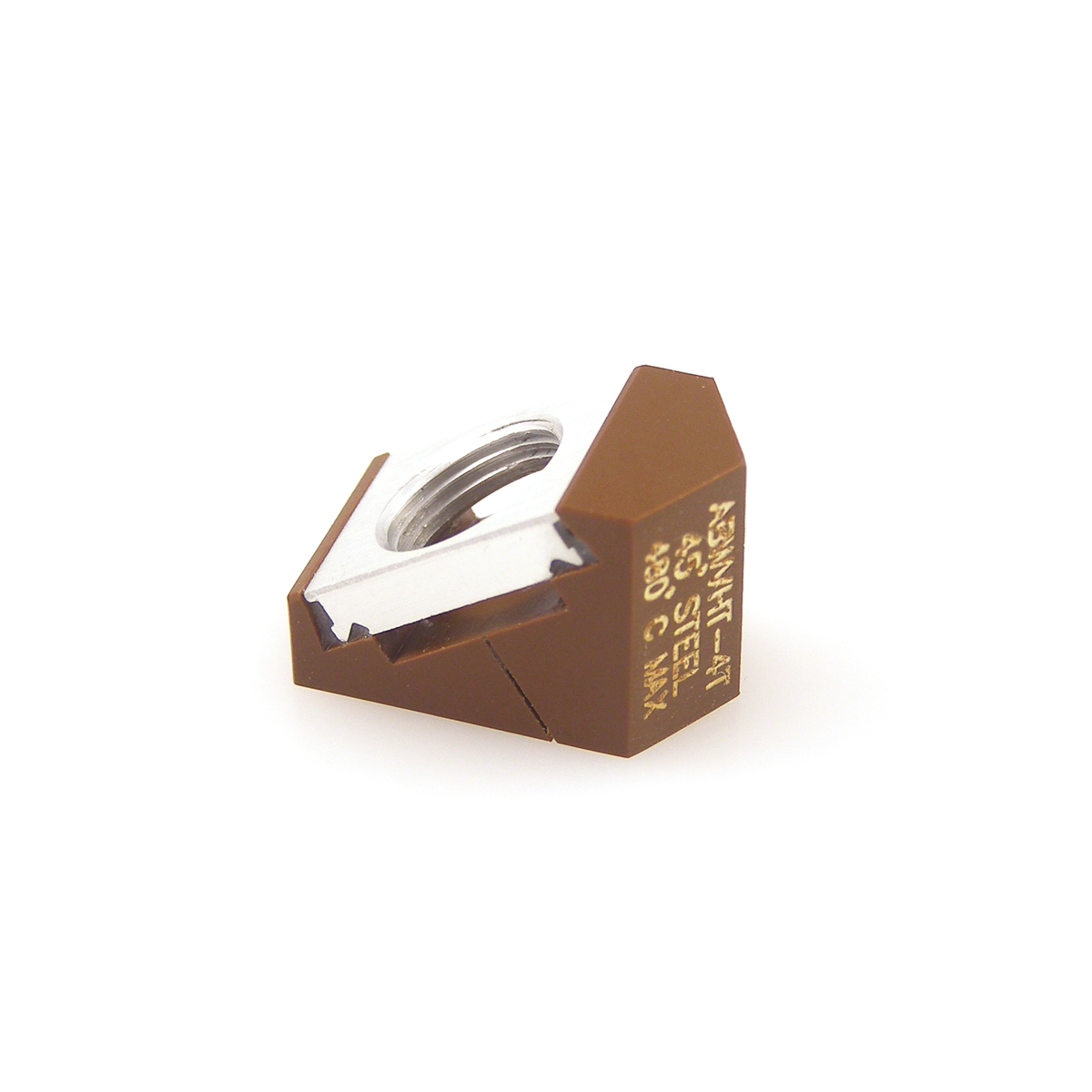

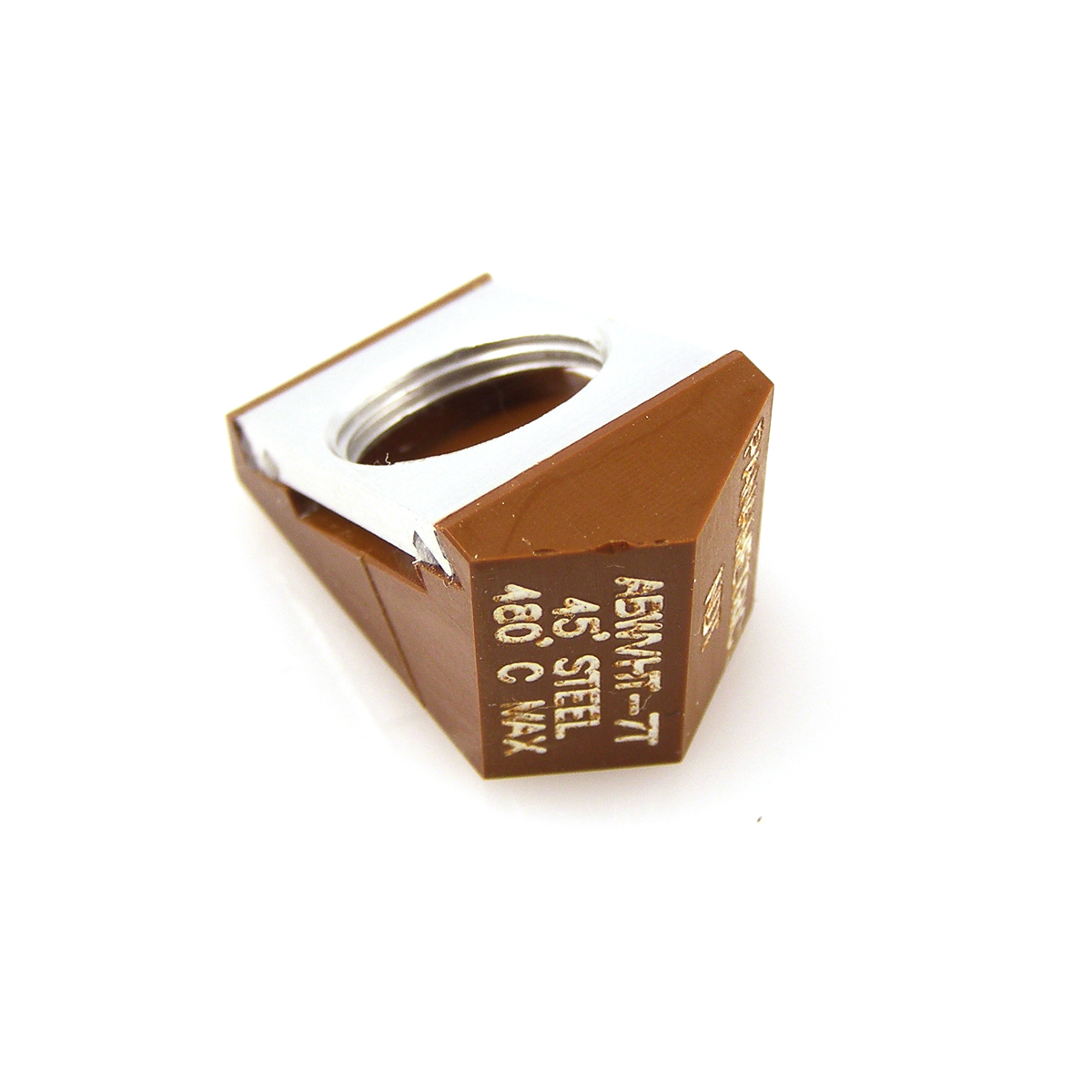

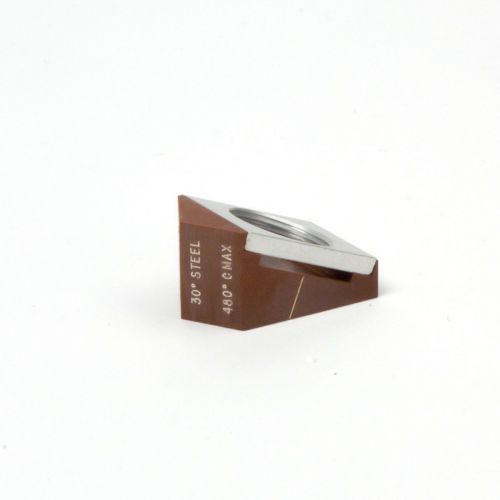

En el siguiente configurador de suelas (zapatas) se presentan solo las suelas (zapatas) de corto alcance con rosca miniatura de 1 a 5 MHz, suelas (zapatas) Accupath, suelas (zapatas) para altas temperaturas y muy altas temperaturas, como también las suelas (zapatas) de onda superficial.
*Las suelas (zapatas) Accupath están disponibles en ángulos estandarizados de onda transversal refractada de 30 °, 45 °, 60 ° y 70 °, en acero, a 10 MHz.
Solicite una cotización o compre una sonda mediante la selección del número de artículo.
搜索结果| Item Number | Part Code | Frequency Range | Nominal Element Size (mm) | Nominal Element Size (in) | Angle (°) | Series | Temperature Range °F | Temperature Range °C | ||
|---|---|---|---|---|---|---|---|---|---|---|
U8700405

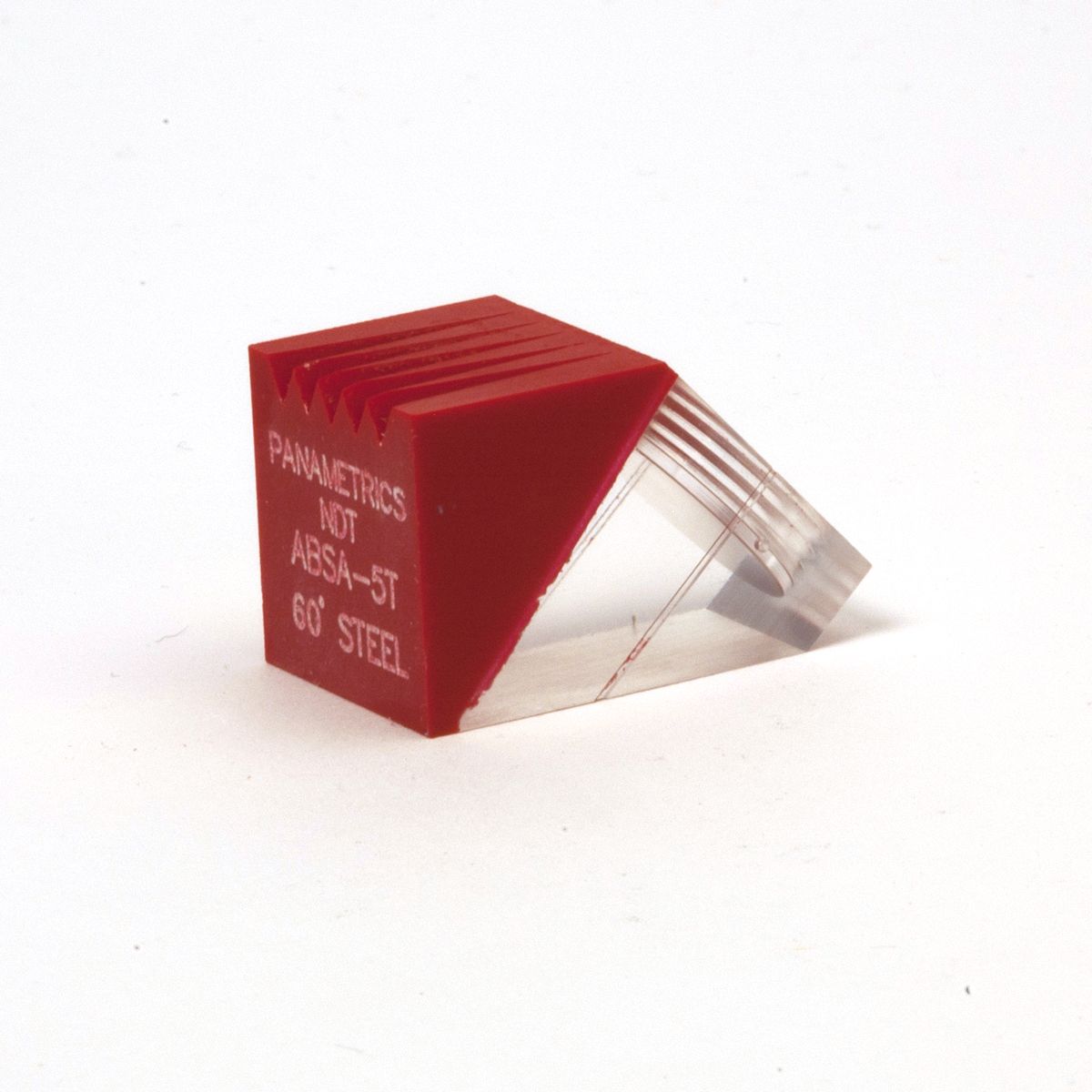

| ABSA-4T-45 | 1 - 5 MHz | 6 | 0.25 | 45° | Short Approach | ||||
U8700408
| ABSA-4T-60 | 1 - 5 MHz | 6 | 0.25 | 60° | Short Approach | ||||
U8700410
| ABSA-4T-70 | 1 - 5 MHz | 6 | 0.25 | 70° | Short Approach | ||||
U8700067
| ABWM-4T-30 | 1 - 5 MHz | 6 | 0.25 | 30° | Accupath | ||||
U8700069
| ABWM-4T-45 | 1 - 5 MHz | 6 | 0.25 | 45° | Accupath | ||||
U8700070
| ABWM-4T-60 | 1 - 5 MHz | 6 | 0.25 | 60° | Accupath | ||||
U8700071
| ABWM-4T-70 | 1 - 5 MHz | 6 | 0.25 | 70° | Accupath | ||||
U8700125

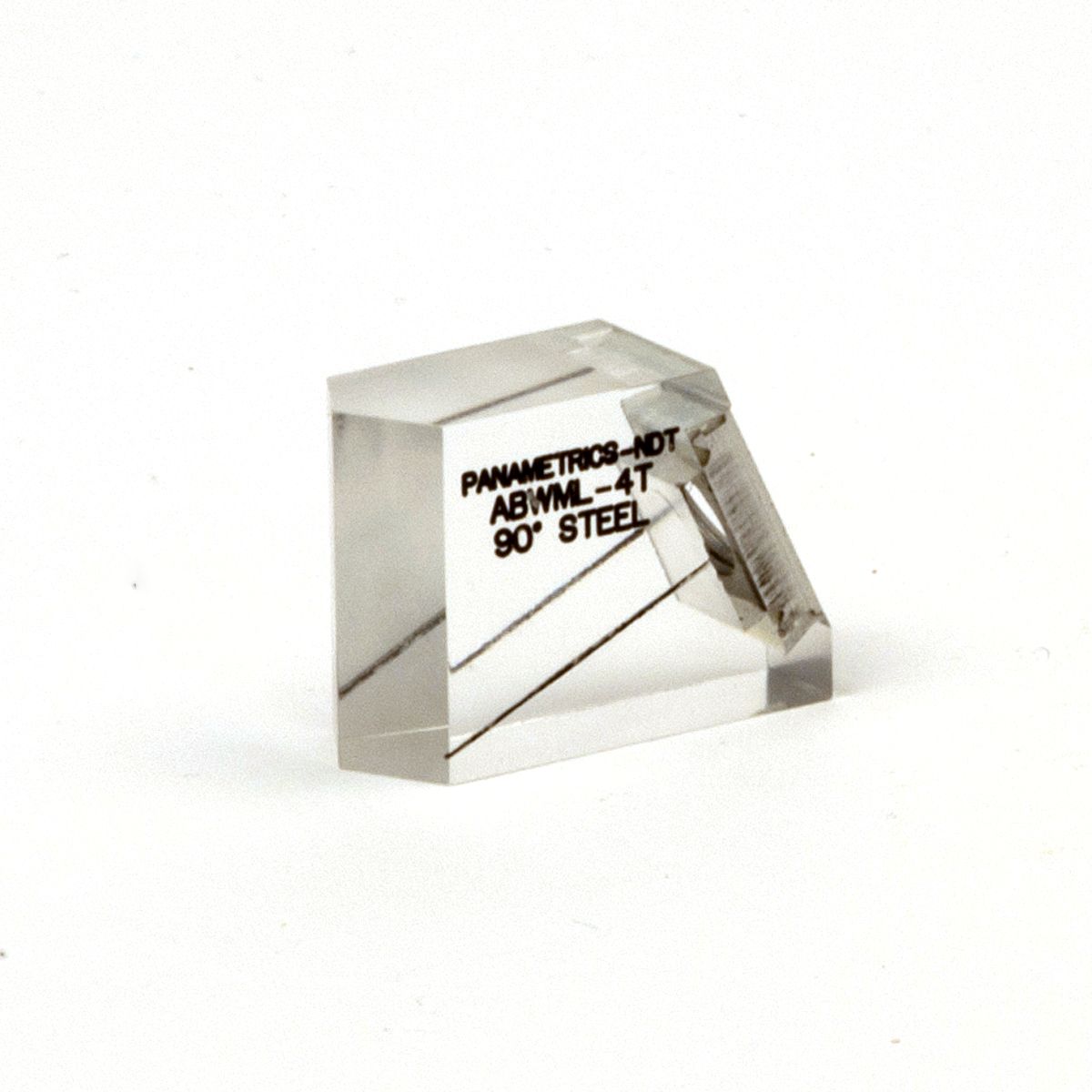

| ABWML-4T-90 | 1 - 5 MHz | 6 | 0.25 | 90° | Surface Wave | ||||
U8700210
| ABWVHT-4T-30 | 1 - 5 MHz | 6 | 0.25 | 30° | Very High Temperature | 900 | 480 | ||
U8700211
| ABWVHT-4T-45 | 1 - 5 MHz | 6 | 0.25 | 45° | Very High Temperature | 900 | 480 | ||
U8700212
| ABWVHT-4T-60 | 1 - 5 MHz | 6 | 0.25 | 60° | Very High Temperature | 900 | 480 | ||
U8700213
| ABWVHT-4T-70 | 1 - 5 MHz | 6 | 0.25 | 70° | Very High Temperature | 900 | 480 | ||
U8700023

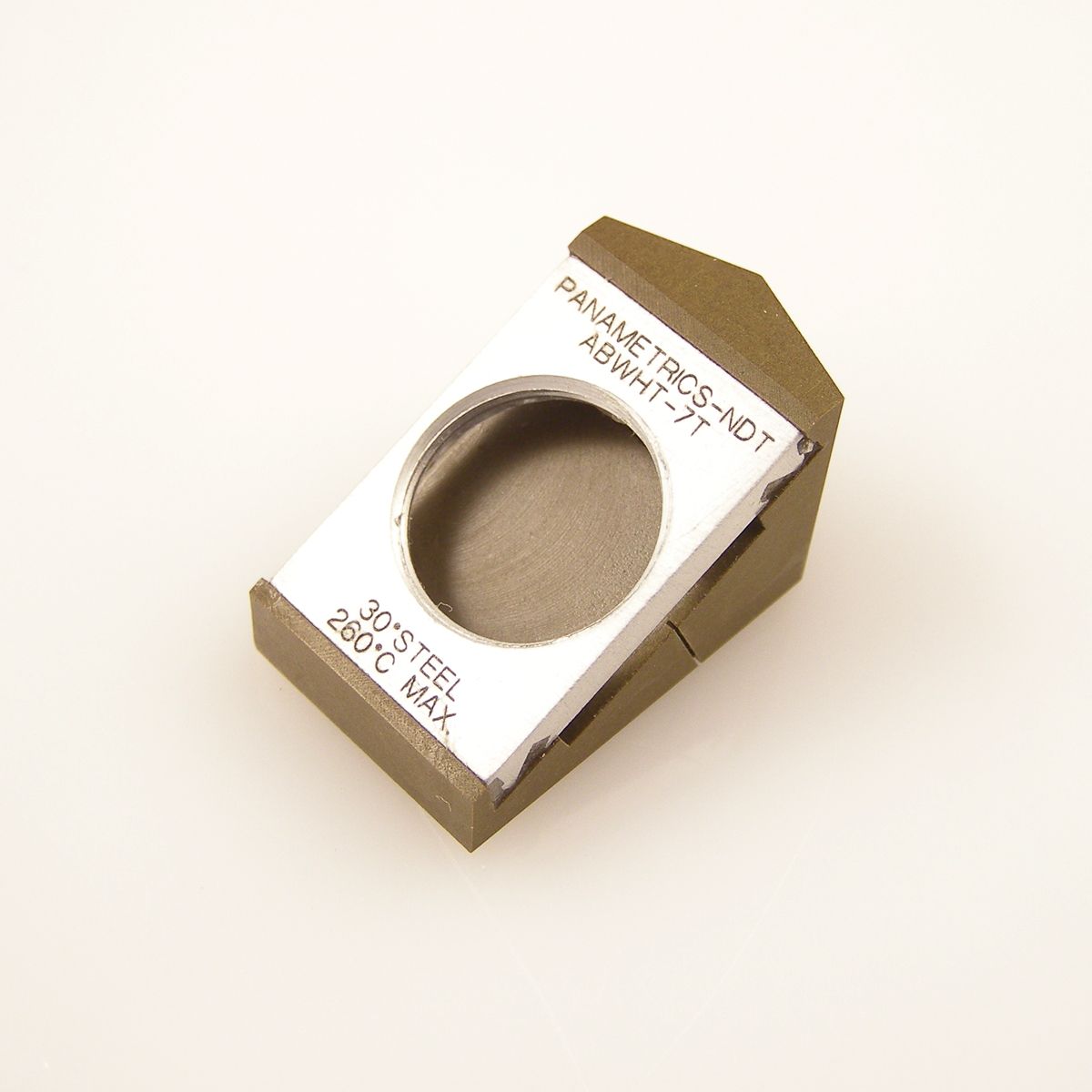

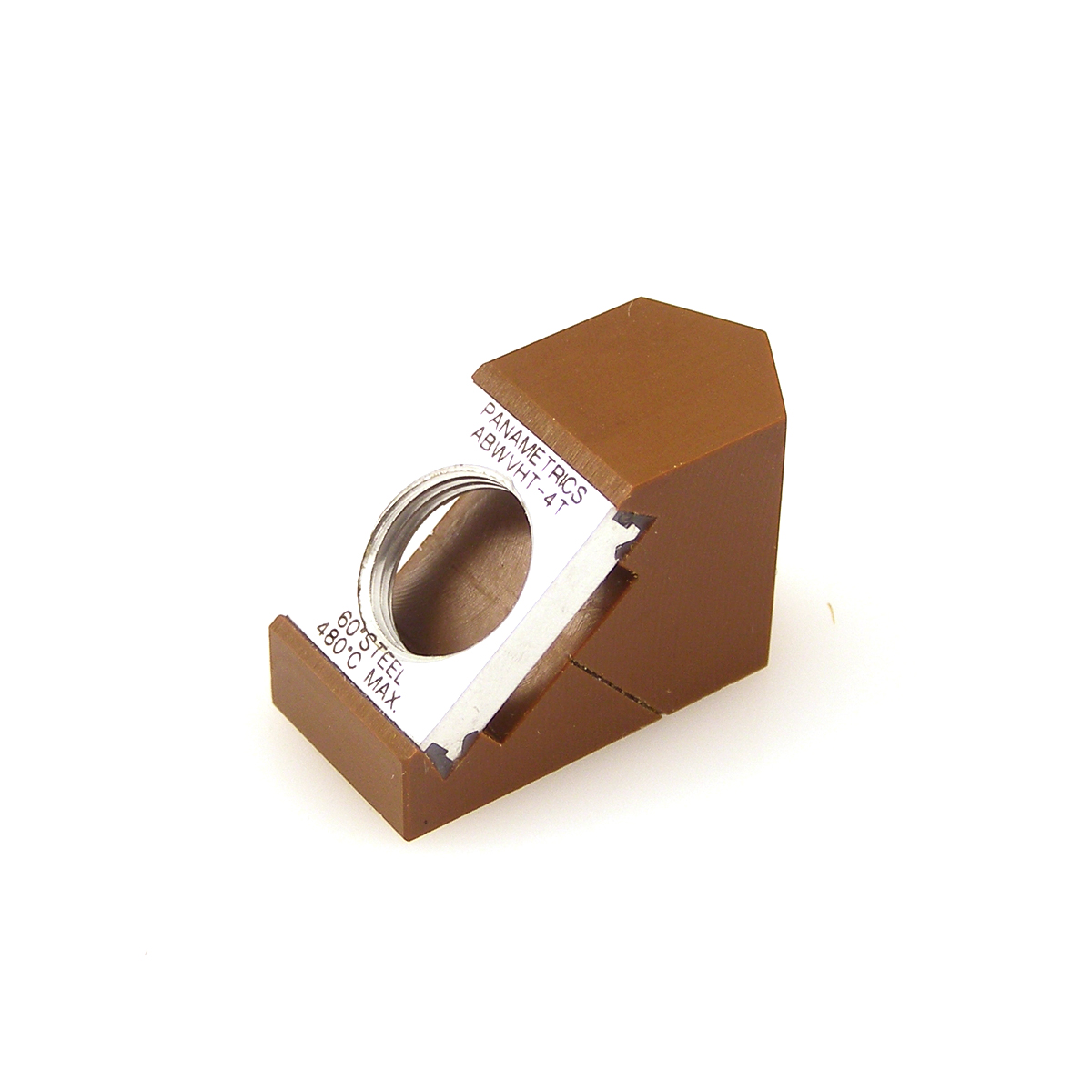

| ABWHT-4T-45 | 1 - 5 MHz | 6 | 0.25 | 45° | 高温 | 500 | 260 | ||
U8700024
| ABWHT-4T-60 | 1 - 5 MHz | 6 | 0.25 | 60° | 高温 | 500 | 260 | ||
U8700025
| ABWHT-4T-70 | 1 - 5 MHz | 6 | 0.25 | 70° | 高温 | 500 | 260 | ||
U8700034
| ABWHT-7T-30 | 1 - 5 MHz | 10 | 0.375 | 30° | 高温 | 500 | 260 | ||
U8700418
| ABSA-7T-45 | 1 - 5 MHz | 10 | 0.375 | 45° | Short Approach | ||||
U8700420
| ABSA-7T-60 | 1 - 5 MHz | 10 | 0.375 | 60° | Short Approach | ||||
U8700422
| ABSA-7T-70 | 1 - 5 MHz | 10 | 0.375 | 70° | Short Approach | ||||
U8700115
| ABWM-7T-30 | 1 - 5 MHz | 10 | 0.375 | 30° | Accupath | ||||
U8700117
| ABWM-7T-45 | 1 - 5 MHz | 10 | 0.375 | 45° | Accupath | ||||
U8700118
| ABWM-7T-60 | 1 - 5 MHz | 10 | 0.375 | 60° | Accupath | ||||
U8700119
| ABWM-7T-70 | 1 - 5 MHz | 10 | 0.375 | 70° | Accupath | ||||
U8700136
| ABWML-7T-90 | 1 - 5 MHz | 10 | 0.375 | 90° | Surface Wave | ||||
U8700035
| ABWHT-7T-45 | 1 - 5 MHz | 10 | 0.375 | 45° | 高温 | 500 | 260 | ||
U8700036
| ABWHT-7T-60 | 1 - 5 MHz | 10 | 0.375 | 60° | 高温 | 500 | 260 | ||
U8700037
| ABWHT-7T-70 | 1 - 5 MHz | 10 | 0.375 | 70° | 高温 | 500 | 260 | ||
U8700222
| ABWVHT-7T-30 | 1 - 5 MHz | 10 | 0.375 | 30° | Very High Temperature | 900 | 480 | ||
U8700223
| ABWVHT-7T-45 | 1 - 5 MHz | 10 | 0.375 | 45° | Very High Temperature | 900 | 480 | ||
U8700224
| ABWVHT-7T-60 | 1 - 5 MHz | 10 | 0.375 | 60° | Very High Temperature | 900 | 480 | ||
U8700225
| ABWVHT-7T-70 | 1 - 5 MHz | 10 | 0.375 | 70° | Very High Temperature | 900 | 480 | ||
U8700030
| ABWHT-5T-30 | 1 - 5 MHz | 13 | 0.5 | 30° | 高温 | 500 | 260 | ||
U8700412
| ABSA-5T-45 | 1 - 5 MHz | 13 | 0.5 | 45° | Short Approach | ||||
U8700414
| ABSA-5T-60 | 1 - 5 MHz | 13 | 0.5 | 60° | Short Approach | ||||
U8700416
| ABSA-5T-70 | 1 - 5 MHz | 13 | 0.5 | 70° | Short Approach | ||||
U8700102
| ABWM-5T-45 | 1 - 5 MHz | 13 | 0.5 | 45° | Accupath | ||||
U8700103
| ABWM-5T-60 | 1 - 5 MHz | 13 | 0.5 | 60° | Accupath | ||||
U8700104
| ABWM-5T-70 | 1 - 5 MHz | 13 | 0.5 | 70° | Accupath | ||||
U8700100
| ABWM-5T-30 | 1 - 5 MHz | 13 | 0.5 | 30° | Accupath | ||||
U8700132
| ABWML-5T-90 | 1 - 5 MHz | 13 | 0.5 | 90° | Surface Wave | ||||
U8700031
| ABWHT-5T-45 | 1 - 5 MHz | 13 | 0.5 | 45° | 高温 | 500 | 260 | ||
U8700032
| ABWHT-5T-60 | 1 - 5 MHz | 13 | 0.5 | 60° | 高温 | 500 | 260 | ||
U8700218
| ABWVHT-5T-30 | 1 - 5 MHz | 13 | 0.5 | 30° | Very High Temperature | 900 | 480 | ||
U8700033
| ABWHT-5T-70 | 1 - 5 MHz | 13 | 0.5 | 70° | 高温 | 500 | 260 | ||
U8700219
| ABWVHT-5T-45 | 1 - 5 MHz | 13 | 0.5 | 45° | Very High Temperature | 900 | 480 | ||
U8700220
| ABWVHT-5T-60 | 1 - 5 MHz | 13 | 0.5 | 60° | Very High Temperature | 900 | 480 | ||
U8700221
| ABWVHT-5T-70 | 1 - 5 MHz | 13 | 0.5 | 70° | Very High Temperature | 900 | 480 |
