Thickness Measurements on Rubber Hoses and Tubing

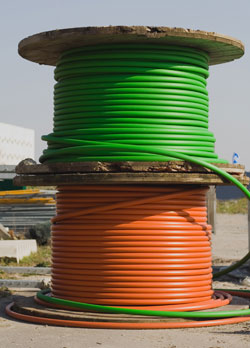

Underground utility tubing

Thickness measurements on rubber tubes or hoses are important for quality control. With no need to cut up the part, ultrasonic thickness gauges can provide instant thickness measurements by coupling an ultrasonic transducer to one side of the part.

The minimum diameter of the tube is usually limited to 0.080 in. (2 mm), although thin-walled rubber tubing can be flattened to aid in making the thickness measurements. In some rubber hoses, reinforcing materials such as fibers or steel wires make the total wall thickness measurements more difficult or impossible, especially in the case of woven fabric reinforcement.

In cases with fabric or woven reinforcement, it is usually possible to use the Magna-Mike™ 8600 Hall-effect thickness gauge to measure the total thickness of the tubing. The disadvantage of using this gauging method is that a small target ball needs to be inserted inside the tube to make the wall thickness measurements.

Recommended Equipment to Measure the Thickness of Rubber Hoses and Tubes

Instrument and transducer recommendations for rubber hoses and tubes depend on variables such as hose/tube diameter, thickness range, and type of rubber. Precision thickness gauges such as the 38DL PLUS™ gauge, the Magna-Mike 8600 gauge, and the 45MG gauge with Single Element software are used with a variety of transducers, including:

  • V260 Sonopen™ transducer for thin-walled tubing with diameters between approximately 0.080 in. (3 mm) and 0.2 in. (5 mm)
  • M110 transducer for larger diameters and wall thicknesses up to approximately 0.4 in. (10 mm)
  • M1036 transducer for thicker hoses

In some cases, the High Penetration software option for the 38DL PLUS and 45MG gauges will also be required. Contact Evident for assistance with selection of the instruments and transducers.

Olympus IMS

应用所使用的产品

72DL PLUS高级超声测厚仪小巧便携、易于使用,可以提供准确的厚度测量值。这款创新型厚度测量工具可与频率高达125 MHz的单晶探头相兼容,非常适合测定多层漆料、涂料和塑料等超薄材料的厚度。它可同时显示最多6层的厚度。

45MG是一款配备有标准测量功能和多个软件选项的高级超声测厚仪。这款独特的厚度测量工具可与我们的全系列双晶和单晶测厚仪探头兼容。

用途广泛的38DL PLUS测厚仪既可与双晶探头一起使用,测量被腐蚀管道的厚度,也可与单晶探头一起使用,对薄材料或多层材料进行非常精确的厚度测量。
Magna-Mike 8600霍尔效应测厚仪使用磁性探头对塑料瓶等非铁性薄壁材料进行准确的厚度测量。
