显微镜解决方案

平场消色差透镜 MPLN

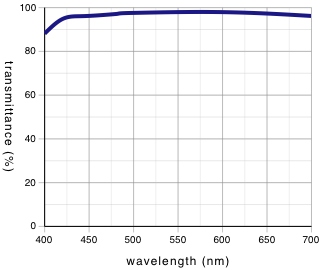

Magnification [X]	5
Numerical aperture (NA)	0.1
Working distance (WD) [mm]	20
Objective Field Number	22
Immersion medium	Air/Dry
Spring loaded	N/A
Correction collar	N/A
Correction range of correction collar	N/A
Iris	N/A
Correction level of chromatic aberration	Achromat (ACH)
Parfocalizing distance [mm]	45
Back focal plane (BFP) position	-
Type of screw thread	W20.32X0.706(RMS)
Brightfield(Reflected)	Good
Brightfield(Transmitted)	Good
Darkfield(Reflected)	N/A
Darkfield(Transmitted)	N/A
DIC(Reflected)	N/A
DIC(Transmitted)	N/A
Phase Contrast	N/A
Relief Contrast	N/A
Polarized Light	N/A
Fluorescence (B, G Excitation)	N/A
UV Fluorescence (at 365nm)	N/A
Multiphoton	N/A
TIRF	N/A
IR	N/A
WLI	N/A
Auto Focus	N/A

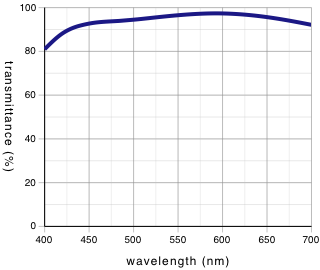

Magnification [X]	10
Numerical aperture (NA)	0.25
Working distance (WD) [mm]	10.6
Objective Field Number	22
Immersion medium	Air/Dry
Spring loaded	N/A
Correction collar	N/A
Correction range of correction collar	N/A
Iris	N/A
Correction level of chromatic aberration	Achromat (ACH)
Parfocalizing distance [mm]	45
Back focal plane (BFP) position	-
Type of screw thread	W20.32X0.706(RMS)
Brightfield(Reflected)	Good
Brightfield(Transmitted)	Good
Darkfield(Reflected)	N/A
Darkfield(Transmitted)	N/A
DIC(Reflected)	N/A
DIC(Transmitted)	N/A
Phase Contrast	N/A
Relief Contrast	N/A
Polarized Light	N/A
Fluorescence (B, G Excitation)	N/A
UV Fluorescence (at 365nm)	N/A
Multiphoton	N/A
TIRF	N/A
IR	N/A
WLI	N/A
Auto Focus	N/A

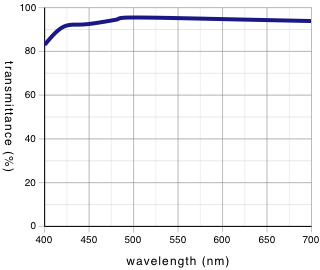

Magnification [X]	20
Numerical aperture (NA)	0.4
Working distance (WD) [mm]	1.3
Objective Field Number	22
Immersion medium	Air/Dry
Spring loaded	Yes
Correction collar	N/A
Correction range of correction collar	N/A
Iris	N/A
Correction level of chromatic aberration	Achromat (ACH)
Parfocalizing distance [mm]	45
Back focal plane (BFP) position	-
Type of screw thread	W20.32X0.706(RMS)
Brightfield(Reflected)	Good
Brightfield(Transmitted)	Good
Darkfield(Reflected)	N/A
Darkfield(Transmitted)	N/A
DIC(Reflected)	N/A
DIC(Transmitted)	N/A
Phase Contrast	N/A
Relief Contrast	N/A
Polarized Light	N/A
Fluorescence (B, G Excitation)	N/A
UV Fluorescence (at 365nm)	N/A
Multiphoton	N/A
TIRF	N/A
IR	N/A
WLI	N/A
Auto Focus	N/A

Magnification [X]	50
Numerical aperture (NA)	0.75
Working distance (WD) [mm]	0.38
Objective Field Number	22
Immersion medium	Air/Dry
Spring loaded	Yes
Correction collar	N/A
Correction range of correction collar	N/A
Iris	N/A
Correction level of chromatic aberration	Achromat (ACH)
Parfocalizing distance [mm]	45
Back focal plane (BFP) position	-
Type of screw thread	W20.32X0.706(RMS)
Brightfield(Reflected)	Good
Brightfield(Transmitted)	Good
Darkfield(Reflected)	N/A
Darkfield(Transmitted)	N/A
DIC(Reflected)	N/A
DIC(Transmitted)	N/A
Phase Contrast	N/A
Relief Contrast	N/A
Polarized Light	N/A
Fluorescence (B, G Excitation)	N/A
UV Fluorescence (at 365nm)	N/A
Multiphoton	N/A
TIRF	N/A
IR	N/A
WLI	N/A
Auto Focus	N/A

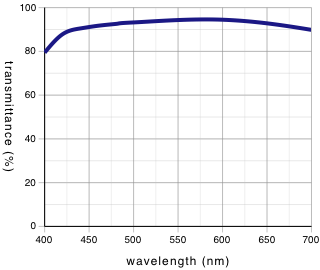

Magnification [X]	100
Numerical aperture (NA)	0.9
Working distance (WD) [mm]	0.21
Objective Field Number	22
Immersion medium	Air/Dry
Spring loaded	Yes
Correction collar	N/A
Correction range of correction collar	N/A
Iris	N/A
Correction level of chromatic aberration	Achromat (ACH)
Parfocalizing distance [mm]	45
Back focal plane (BFP) position	-
Type of screw thread	W20.32X0.706(RMS)
Brightfield(Reflected)	Good
Brightfield(Transmitted)	Good
Darkfield(Reflected)	N/A
Darkfield(Transmitted)	N/A
DIC(Reflected)	N/A
DIC(Transmitted)	N/A
Phase Contrast	N/A
Relief Contrast	N/A
Polarized Light	N/A
Fluorescence (B, G Excitation)	N/A
UV Fluorescence (at 365nm)	N/A
Multiphoton	N/A
TIRF	N/A
IR	N/A
WLI	N/A
Auto Focus	N/A
