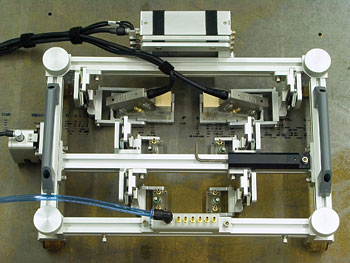

The HSMT-X03 is the construction weld scanner offering the most probe-holding capacity. In fact, the scanner can hold up to 10 probes for either phased array or conventional UT, in order to obtain optimal coverage of the entire weld volume.
The basic configuation is intended for construction welding inspection. In order to be used in more restricted areas, the scanner can also be reconfigured with the provided short frame bars.
Standard inclusions
Scanner frame with handles, and:
Three 300 mm (12 in.) frame bars
Two 200 mm (8 in.) frame bars
3 additional 200 mm (8 in.) and two additional 125 mm (5 in.) frame bars allow smaller footprint configuration or inspection on pipes with smaller diameter.
OmniScan-compatible waterproof spring-loaded wheel encoder with 5 m cable
Six 90º probe holder brackets
6 spring-loaded arms (SLA)
6 TOFD-P/E 31.75 mm yokes
2 PA 40 mm × 55 mm yokes
Water manifold
Irrigation tubing and accessories
Note: Umbilical cable, probes, and wedges are not included with the scanner.
Options
Umbilical
Remote Pulser/Preamplifier
Couplant-Feed Units
Laser Guide Kit
Battery-operated, laser-guiding device for easier weld tracking.
Yokes
TomoScan FOCUS LT Encoder Cable Adaptor
Replacement encoder
Frame Extensions
A pair of side-mounted frame bars allows greater probe separation for inspecting thicker welds.
Standard Probe Holder Kit
Set of two spring-loaded arms (SLA) mounted on 90º brackets.
Spare Parts Kits
For PV-100 applications
For PV-200 applications
Specifications
Length in Scan Axis
(mm)
Width
(mm)
Height
(mm)
Weight
(kg)
279
413
131
3.2
