概览
奥林巴斯MPLAPON平场复消色差系列物镜,拥有奥林巴斯很高水准的色差校正和高分辨率,确保了高水准的波相差校正功能。可对应微分干涉及简易偏光观察。
平场复消色差透镜MPLAPON
- 明视场专用物镜
- 高度校正了色差的平面复消色差物镜
- 是世界上首例将光学性能(波前像差)的弥散比例※1保证※2到95%以上的通用物镜
- 对应微分干涉、简易偏振光观察和AF单元(奥林巴斯产品U-AFA2M)
| ![M Plan Apochromat MPLAPON M Plan Apochromat MPLAPON](https://industrial.evidentscientific.com.cn/data/Image/MicroscopeSolutions/MPLAPON/mplapon_50x_100x_objective_lens.jpg?rev=FF94) |
※1弥散比例:
|
在理想的无像差光学系统的结像平面上的聚光比例(中心强度)作为100%时,与其相对,用%比表示的在实际光学系统中的聚光比例。数值越高,表示光学系统的质量越好。
|
※2保证值的定义:
|
在本公司指定的条件下,用奥林巴斯制造的透射波面测量干涉仪器评定的测量值(测量环境:温度23℃±1℃;评定条件:在瞳孔直径的97%的范围内测量)。
|
MPLAPON50x
Specifications
Magnification [X]
|
50
|
---|
Numerical aperture (NA)
|
0.95
|
---|
Working distance (WD) [mm]
|
0.35
|
---|
Objective Field Number
|
26.5
|
---|
Immersion medium
|
Air/Dry
|
---|
Spring loaded
|
Yes
|
---|
Correction collar
|
N/A
|
---|
Correction range of correction collar
|
N/A
|
---|
Iris
|
N/A
|
---|
Correction level of chromatic aberration
|
Apochromat(APO)
|
---|
Parfocalizing distance [mm]
|
45
|
---|
Back focal plane (BFP) position
|
-8.0
|
---|
Type of screw thread
|
W20.32X0.706(RMS)
|
---|
Brightfield(Reflected)
|
Excellent
|
---|
Brightfield(Transmitted)
|
Excellent
|
---|
Darkfield(Reflected)
|
N/A
|
---|
Darkfield(Transmitted)
|
N/A
|
---|
DIC(Reflected)
|
Good
|
---|
DIC(Transmitted)
|
N/A
|
---|
Phase Contrast
|
N/A
|
---|
Relief Contrast
|
N/A
|
---|
Polarized Light
|
Limitation
|
---|
Fluorescence (B, G Excitation)
|
N/A
|
---|
UV Fluorescence (at 365nm)
|
N/A
|
---|
Multiphoton
|
N/A
|
---|
TIRF
|
N/A
|
---|
IR
|
N/A
|
---|
WLI
|
N/A
|
---|
Auto Focus
|
Good
|
---|

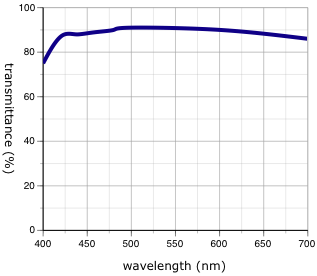

Transmittance/Wavelength
![Transmittance/Wavelength Transmittance/Wavelength](https://industrial.evidentscientific.com.cn/data/Image/MicroscopeSolutions/MPLAPON/mplapon50x_transmittance_wavelength_graph.gif?rev=FF94)
Dimensions
![MPLAPON50x Dimensions MPLAPON50x Dimensions](https://industrial.evidentscientific.com.cn/data/Image/MicroscopeSolutions/MPLAPON/mplapon50x_dimensions_diagram.gif?rev=FF94)
MPLAPON100x
Specifications
Magnification [X]
|
100
|
---|
Numerical aperture (NA)
|
0.95
|
---|
Working distance (WD) [mm]
|
0.35
|
---|
Objective Field Number
|
26.5
|
---|
Immersion medium
|
Air/Dry
|
---|
Spring loaded
|
Yes
|
---|
Correction collar
|
N/A
|
---|
Correction range of correction collar
|
N/A
|
---|
Iris
|
N/A
|
---|
Correction level of chromatic aberration
|
Apochromat(APO)
|
---|
Parfocalizing distance [mm]
|
45
|
---|
Back focal plane (BFP) position
|
-8.0
|
---|
Type of screw thread
|
W20.32X0.706(RMS)
|
---|
Brightfield(Reflected)
|
Excellent
|
---|
Brightfield(Transmitted)
|
Excellent
|
---|
Darkfield(Reflected)
|
N/A
|
---|
Darkfield(Transmitted)
|
N/A
|
---|
DIC(Reflected)
|
Good
|
---|
DIC(Transmitted)
|
N/A
|
---|
Phase Contrast
|
N/A
|
---|
Relief Contrast
|
N/A
|
---|
Polarized Light
|
Limitation
|
---|
Fluorescence (B, G Excitation)
|
N/A
|
---|
UV Fluorescence (at 365nm)
|
N/A
|
---|
Multiphoton
|
N/A
|
---|
TIRF
|
N/A
|
---|
IR
|
N/A
|
---|
WLI
|
N/A
|
---|
Auto Focus
|
Good
|
---|

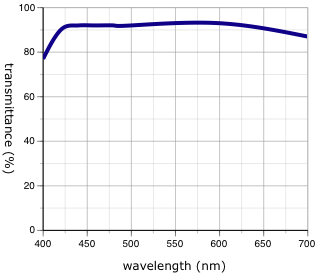

Transmittance/Wavelength
![Transmittance/Wavelength Transmittance/Wavelength](https://industrial.evidentscientific.com.cn/data/Image/MicroscopeSolutions/MPLAPON/mplapon100x_transmittance_wavelength_graph.gif?rev=FF94)
Dimensions
![MPLAPON100x Dimensions MPLAPON100x Dimensions](https://industrial.evidentscientific.com.cn/data/Image/MicroscopeSolutions/MPLAPON/mplapon100x_dimensions_diagram.gif?rev=FF94)
