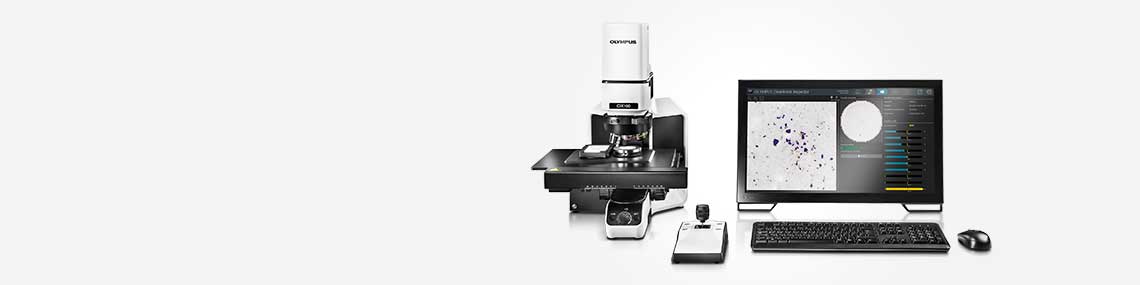

Simplify Your Technical CleanlinessCleanliness of components, fluids, and parts is vital to every stage of manufacturing, where even micron-sized particles can shorten component life or compromise performance. Strict international and national directives define how contamination must be measured and documented, demanding detailed insight into particle counts, size distribution, and characteristics. The CIX100 inspection system brings confidence to this process—a turnkey, high-throughput solution that meets modern cleanliness standards with ease. With advanced deep-learning AI, it takes particle identification further, revealing insights that help teams protect quality from the start. |
 Standard process for cleanliness inspection: preparation (steps 1–3) and investigation (steps 4–6) |
| Reliable Turnkey Solution for Technical CleanlinessThe CIX100 is a turnkey solution designed to meet the needs of automated cleanliness inspections. Each component is optimized for accuracy, reproducibility, repeatability, and seamless integration for reliable data in a high-throughput system. Automation of critical tasks helps speed up inspections while minimizing human errors and the risk of contaminating the sample. |
Excellent Optical QualityOur UIS2 objectives provide high optical performance for excellent measurement and analysis accuracy. A dedicated light source maintains a consistent color temperature optimized for cleanliness inspection. This performance supports fast inspections of both circular and rectangular sample areas. |
|
| Mechanical StabilityThe optical path alignment, motorized nosepiece, and camera are protected by a cover to prevent accidental modifications. For greater stability, all moving parts have been eliminated from the optical light path. |
Regular System VerificationThe preconfigured and pre-calibrated system has reminders for automatic system self-checks with the integrated calibration slide that helps maintain regular system verification. |
|
Reproducibility and RepeatabilityThe preconfigured and precalibrated system, user rights management, and regular system self-checks help ensure that the settings are correct for reproducible inspection data independent of the operator or instrument. As a result, multiple departments and sites can apply the same quality standards at different locations. |
Versatility for Common Sampling MethodsThe CIX100 supports sampling techniques with circular or rectangular inspection areas. Choose from holders with white or black backgrounds for filter membranes with a diameter of 25 mm, 47 mm, and 55 mm; holders for tape lift sampling; holders with a flat surface for metallurgy applications; and holders for particle traps. |  Top and middle: circular sample holders with white and black backgrounds for filter membranes with diameters of 25 mm, 47 mm, and 55 mm. Bottom left: circular sample holder for particle traps. Bottom right: rectangular sample holder for tape lift sampling.* |
Intuitive Guidance
 | Easy for Every Experience LevelPRECiV™ CIX software provides step-by-step guidance, making technical cleanliness inspections easy for all experience levels. Intuitive workflows and user rights management improve confidence in results while reducing cycle time, cost per test, and user errors. The result is a system optimized for productivity and high-quality standards. |
Guided WorkflowsAn intuitive workflow guides users through three steps: Inspect Sample, Review Results, and Create Report. From scanning the sample to creating compliant reports, maximized automation improves ease of use so that users of all levels can perform efficient inspections and produce reliable data. |
 Intuitive workflow with large buttons that are easy to click with a mouse or the touch-screen monitor. Workflow steps from left to right: Mount Sample, Edit Settings, Run Inspection, Review Results, and Create Report. |
User Rights Management ToolsAdministrators can control which users have access to different parts of the system, helping novice users stay on task. It also prevents accidental modification of critical parameters, such as calibration and data selected for the automatically generated report. |
 |
| Advanced MicroscopyPRECiV CIX microscope mode* enables you to leave the dedicated cleanliness inspection workflow to perform microscopic imaging, including extended focus imaging (EFI) and 2D measurement. Expand the microscope mode capabilities with optional material analysis solutions, such as Grain Sizing, Cast Iron, and Phase Analysis. As needed, these solutions can be extended with special functions customized to individual users or applications. *Microscope mode is an optional solution in PRECiV CIX. |
Fast Analysis
 | Fast Live Analytics and ReviewsWith an innovative polarization method, CIX100 delivers image acquisition and precise live analytics of both reflective (metallic) and non-reflective (non-metallic) particles, ranging from 2.5 µm up to 42 mm, all in a single scan. Counted and sorted particles are displayed live and sorted into size classes during the scan, supporting fast decisions in case of a failed test. |
All-in-One Scan for High ThroughputThe innovative polarization method based on wavelength separation and color detects both reflective (metallic) and non-reflective (non-metallic) particles in a single scan, offering multiple benefits for high-throughput labs:
|
 The innovative illumination system separates reflective (metallic) and non-reflective (non-metallic) particles in a single scan. |
Review Particles in Real ColorActivate real color mode to view particles in their actual colors, providing more information to identify the particle type as metallic or non-metallic. The all-in-one scan shows all reflective particles as blue in polarization, indicating they’re metallic. In real color mode, the blue color of reflective particles is omitted, revealing the true colors of all particles in the brightfield image. Materials that are actually blue remain blue, while metals show their metallic shine and the reflections typical for the material. These helpful visuals help you better understand the nature of each particle and quickly confirm the particle type. |  Particle as seen by the system during detection and analysis. The blue color indicates that this particle is metallic. The same particle as seen during the review mode in real color using the U-ANT filter and the color correction mode. The particle is confirmed as metallic. |
 Large particles are automatically combined and analyzed. | Intelligent Handling of ParticlesThe CIX100 offers live processing and classification of both small and large particles (2.5 μm up to 42 mm) according to international standards and automatically reconstructs images of large particles. Dark particles on a bright background and vice versa can be analyzed. |
Identification of Filter CoverageThe sample overview image is created at the start of the sample inspection and displays the entire filter at low magnification, enabling the identification of filter coverage or particle clusters before the inspection begins. The system automatically informs users if the filter assignment is higher than desired so they can react quickly. |  The overview image identifies filter occupancy and particle clusters. |
 | Direct Result FeedbackContaminants are automatically analyzed and sorted into size classes defined by the selected standard, then color coded to indicate any class exceeding a preset limit. Acceptable particle counts per size class are displayed, enabling early sample validation (OK) or rejection (NOK), even before the entire membrane is scanned. As required by the electric mobility and medical device industries, PRECiV CIX software lets you evaluate the approval limits for individual particle types. An acoustic signal can be switched on to notify users when the approval reads NOK or the inspection is complete. |
Analysis Beyond Classical AlgorithmsWith integrated TruAI deep-learning technology, the CIX100 can analyze images beyond classical algorithms. Apply a trained neural network to your samples for a more reproducible and robust analysis. The TruAI solution enables you to distinguish between different particle types, such as reflecting and non-reflecting. |  |
 | Data Insights for Faster DecisionsThe CIX100 combines intuitive tools to revise inspection data with a fast, guided particle review. One-click reclassification ensures flexibility and supports international standards. Thumbnail images of detected contaminants link directly to dimensional measurements for easy data review. Contaminant results update automatically across all views and size classes during the review process. This saves time with clear representations of all relevant inspection results. |
Trend AnalysisData statistical analysis can be performed over time and graphically displayed. |  |
 | Inspection Data at a Glance
|
Review, Revise, and RecalculateA manual check and review of the results is generally recommended in technical cleanliness inspection, and the interface makes interactive correction of the particle data quick and easy. |  |
 | Height Measurement SolutionThe CIX100 offers an extended focus imaging (EFI) function that captures images of contaminants and particles whose height extends beyond the objective’s depth of focus and stacks them together to create an all-in-focus image. Further enhance the CIX100 with our height measurement solution, comprised of a 20X objective* and special software, to fulfill the VDA 19 requirements for height measurements. For selected particles, the measurement is performed either automatically or manually. The calculated value is listed as an additional data field in the results sheet. *Must be ordered separately from the height measurement solution license. |
Compliant Results
 Reports can be adapted to individual needs. | One-Click Digital DocumentationGenerate professional reports in one click with predefined templates that comply with industry standards, such as ISO and VDA, and easily adapt templates and reports to meet company regulations. Export the results to Microsoft Word or directly export as a PDF for easy data sharing over email. The CIX100 can also archive reports and data for recordkeeping and trend analysis. |
Easy Data ExportCreate reports in Microsoft Word or PDF format, depending on your preference, and easily export the particle and classification results and trend analysis to Microsoft Excel. Report file sizes are optimized for efficient data sharing. | Individual images of contaminants can be taken and processed for manual measurement confirmation and improved documentation. |
 | Long-Term Data StorageQuickly access all archived samples and their associated data and reports for revision or distribution. All inspection data and reports are automatically saved and archived for a certain period of time. |
